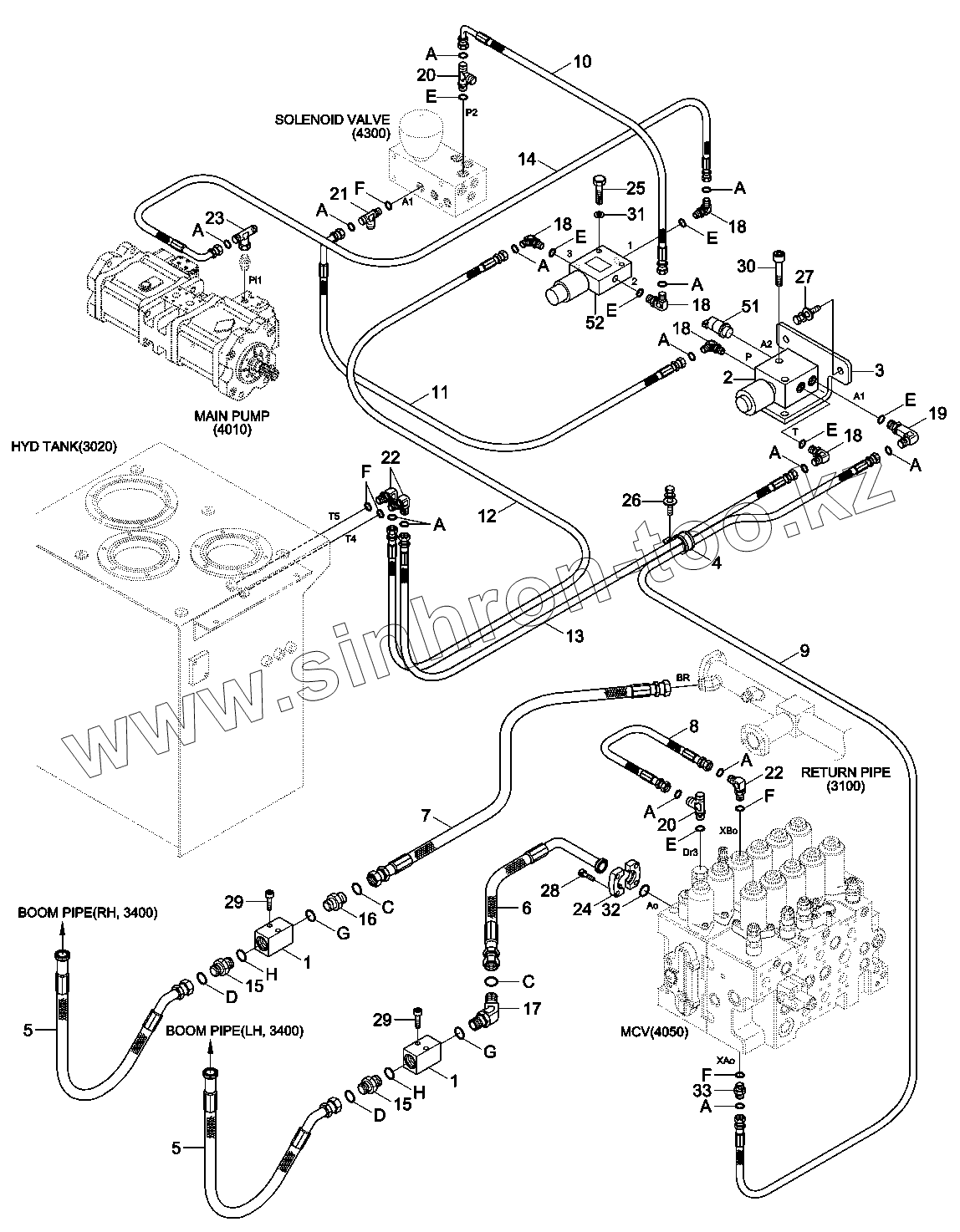

Каталог запасных частей к технике: Hyundai R330LC-9A. SINGLE ACTING MAIN PIPING KIT
32Q9-90310
S631-038004
S631-038004
S631-029004
S631-029004
S631-014004
S631-014004
S631-014004
S631-014004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S631-011004
S621-025001
S621-025001
S621-021001
S621-021001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
S621-011001
1
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
18
18
18
18
19
20
20
21
22
22
23
24
25
26
27
28
29
29
30
31
32
33
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 32Q9-90310 | 32Q9-90310 | S/ACT MAIN PIPING KIT | |
| S631-038004 | S631-038004 | O-RING | |
| S631-029004 | S631-029004 | O-RING | |
| S631-014004 | S631-014004 | O-RING | |
| S631-011004 | S631-011004 | O-RING | |
| S621-025001 | S621-025001 | O-RING | |
| S621-021001 | S621-021001 | O-RING | |
| S621-011001 | S621-011001 | O-RING | |
| 1 | 31EM-91540 | JOINT ASSY-HOSE | |
| 2 | 31Q6-91220 | VALVE-SOLENOID | |
| 3 | 31Q6-90381 | BRACKET-SOL VALVE | |
| 4 | 31L7-10230 | CLAMP | |
| 5 | P974-207334 | HOSE ASSY-ORFS 0X45 | |
| 5 | P973-207334 | HOSE ASSY-ORFS,FLG 0X90 | |
| 6 | 31Q9-92400 | HOSE ASSY | |
| 7 | P913-163033 | HOSE ASSY-ORFS 0X0 | |
| 8 | P910-042008 | HOSE ASSY-ORFS 0X0 | |
| 9 | P910-042041 | HOSE ASSY-ORFS 0X0 | |
| 10 | P930-042007 | HOSE ASSY-ORFS 0X90 | |
| 11 | P930-042028 | HOSE ASSY-ORFS 0X90 | |
| 12 | P930-042038 | HOSE ASSY-ORFS 0X90 | |
| 13 | P910-042042 | HOSE ASSY-ORFS 0X0 | |
| 14 | P930-042016 | HOSE ASSY-ORFS 0X90 | |
| 15 | X500-110006 | CONNECTOR-ORFS | |
| 16 | X500-110021 | CONNECTOR-ORFS | |
| 17 | X530-110005 | ELBOW-45,ORFS | |
| 18 | X520-110001 | ELBOW-90,ORFS | |
| 19 | 31N6-25110 | ELBOW-90,LONG | |
| 20 | X820-045151 | TEE-R/TYPE,ORFS | |
| 21 | X820-065251 | TEE-R/TYPE,ORFS | |
| 22 | X520-110012 | ELBOW-90,ORFS | |
| 23 | 31N6-30130 | TEE-SHUTTLE,S/NUT | |
| 24 | P173-160104 | FLANGE-HYD,SPLIT | |
| 25 | S015-060456 | BOLT-HEX | |
| 26 | S037-102026 | BOLT-W/WASHER | |
| 27 | S037-122526 | BOLT-W/WASHER | |
| 28 | S109-100306 | BOLT-SOCKET | |
| 29 | S109-120656 | BOLT-SOCKET | |
| 30 | S109-080406 | BOLT-SOCKET | |
| 31 | S403-06200B | WASHER-PLAIN | |
| 32 | Y171-024004 | O-RING | |
| 33 | X500-110013 | CONNECTOR-ORFS | |
| 51 | 31Q4-40830 | SENSOR-PRESSURE | |
| 52 | 31Q6-20131 | EPPR VALVE-BREAKER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
