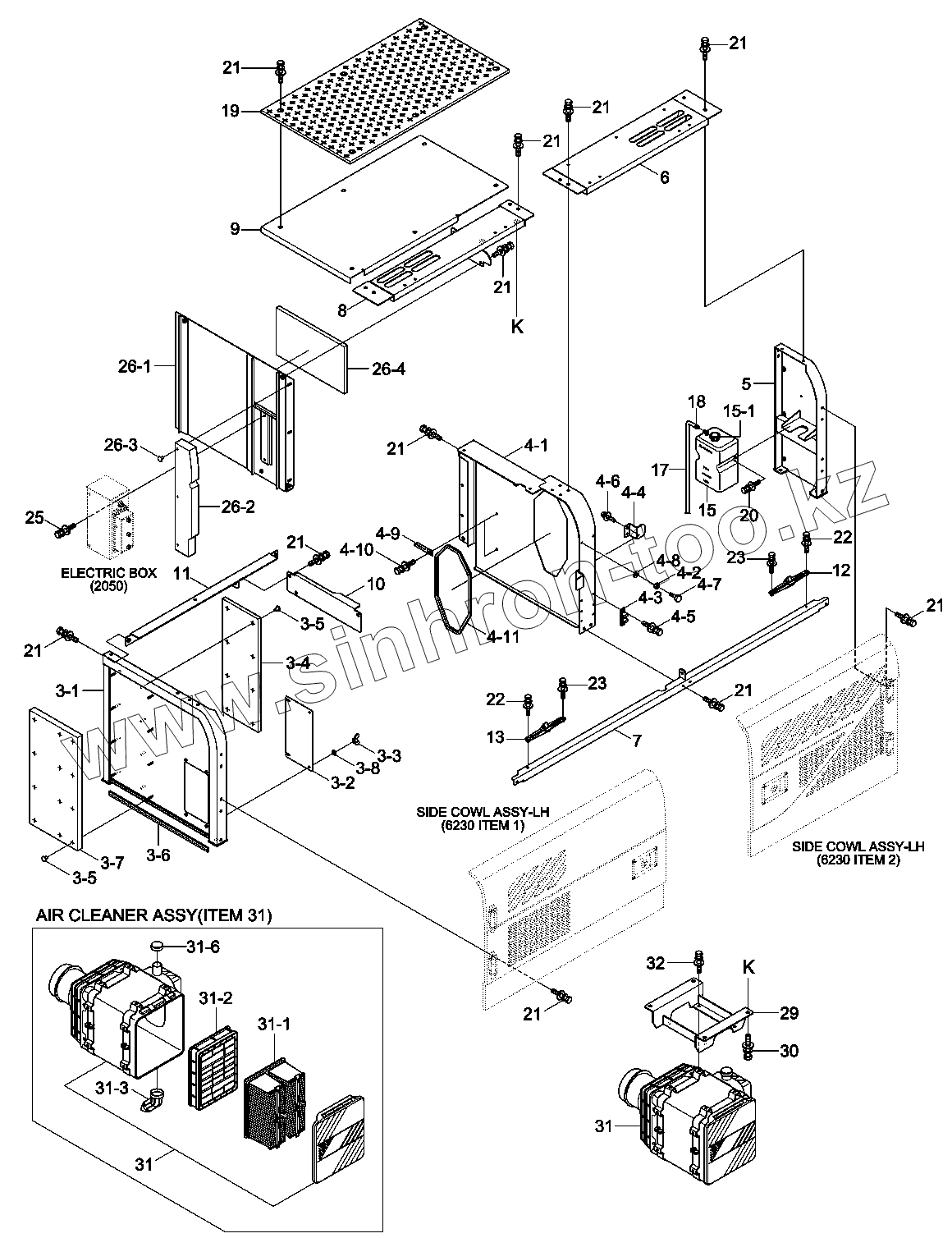

Каталог запасных частей к технике: Hyundai R330LC-9A. SIDE COWL ASSY (LH)
S772-008000
73QA-55590
73QA-55580
S037-101526
73QA-52311
71Q6-52392
S091-080166
73QA-52381
71EM-51580
71EM-51580
71EM-51580
73QA-52390
S403-082006
73QA-52410
11Q9-10180
11Q9-10190
Q312423
A029F130
71EH-13150
73QA-52002
MH100020
S593-000902
S403-10200B
73QA-55511
S037-122056
S035-082026
71Q6-53330
71Q6-53951
S205-10100B
S791-020133
3
4
5
6
7
8
9
10
11
12
13
15
17
18
19
20
21
21
21
21
21
21
21
21
21
21
21
22
22
23
23
25
26
29
30
31
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| S772-008000 | S772-008000 | WEATHER STRIP | |
| 73QA-55590 | 73QA-55590 | SPONGE | |
| 73QA-55580 | 73QA-55580 | SPONGE | |
| S037-101526 | S037-101526 | BOLT-W/WASHER | |
| 73QA-52311 | 73QA-52311 | SUPPORT WA | |
| 71Q6-52392 | 71Q6-52392 | PLATE-SCREEN | |
| S091-080166 | S091-080166 | BOLT-WING | |
| 73QA-52381 | 73QA-52381 | SPONGE | |
| 71EM-51580 | 71EM-51580 | CAP-STUD BOLT | |
| 71EM-51580 | 71EM-51580 | CAP-STUD BOLT | |
| 73QA-52390 | 73QA-52390 | SPONGE | |
| S403-082006 | S403-082006 | WASHER-PLAIN | |
| 73QA-52410 | 73QA-52410 | SUPPORT WA-LH,MID | |
| 11Q9-10180 | 11Q9-10180 | AIR FILTER, PRIMARY | |
| 11Q9-10190 | 11Q9-10190 | AIR FILTER, SECONDARY | |
| Q312423 | Q312423 | VALVE-DUST EJECTION | |
| A029F130 | A029F130 | CAP-END AIR FILTER | |
| 71EH-13150 | 71EH-13150 | BUMPER-RUBBER | |
| 73QA-52002 | 73QA-52002 | SIDE COWL ASSY-LH | |
| MH100020 | MH100020 | CAP-RESERVOIR TANK | |
| S593-000902 | S593-000902 | CLIP-HARNESS | |
| S403-10200B | S403-10200B | WASHER-PLAIN | |
| 73QA-55511 | 73QA-55511 | SCREEN PLATE WA | |
| S037-122056 | S037-122056 | BOLT-W/WASHER | |
| S035-082026 | S035-082026 | BOLT-W/WASHER | |
| 71Q6-53330 | 71Q6-53330 | PLATE-LOCK | |
| 71Q6-53951 | 71Q6-53951 | STOPPER-B | |
| S205-10100B | S205-10100B | NUT-HEX | |
| S791-020133 | S791-020133 | GROMMET-PLATE | |
| 3 | 73QA-52301 | SUPPORT ASSY | |
| 4 | 73QA-52400 | SUPPORT ASSY | |
| 5 | 73QA-52511 | SUPPORT WA-LH,REAR | |
| 6 | 73QA-52600 | SUPPORT-ENG HOOD | |
| 7 | 73QA-52700 | SUPPORT WA-BOTTOM | |
| 8 | 73QA-52800 | GRILL WA | |
| 9 | 73QA-56101 | HOOD WA-A/CLEANER | |
| 10 | 73QA-59150 | SUPPORT WA | |
| 11 | 73QA-52950 | SUPPORT WA-MCV HOOD | |
| 12 | 71Q6-52180 | STAY ASSY-LH | |
| 13 | 71Q6-53180 | STAY ASSY-RH | |
| 15 | 11N8-41071 | TANK-RESERVOIR | |
| 17 | E111-2504 | HOSE | |
| 18 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 19 | 73QA-56501 | NON SLIP PLATE | |
| 20 | S035-082526 | BOLT-W/WASHER | |
| 21 | 71Q6-50025 | BOLT-W/WASHER | |
| 22 | S037-102556 | BOLT-W/WASHER | |
| 23 | S037-103556 | BOLT-W/WASHER | |
| 25 | S037-101556 | BOLT-W/WASHER | |
| 26 | 73QA-55501 | SCREEN-OIL COOLER | |
| 29 | 73QA-52901 | SUPPORT WA | |
| 30 | 71Q6-50020 | BOLT-W/WASHER | |
| 31 | 11Q9-03020 | AIR CLEANER ASSY | |
| 32 | S037-102026 | BOLT-W/WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
