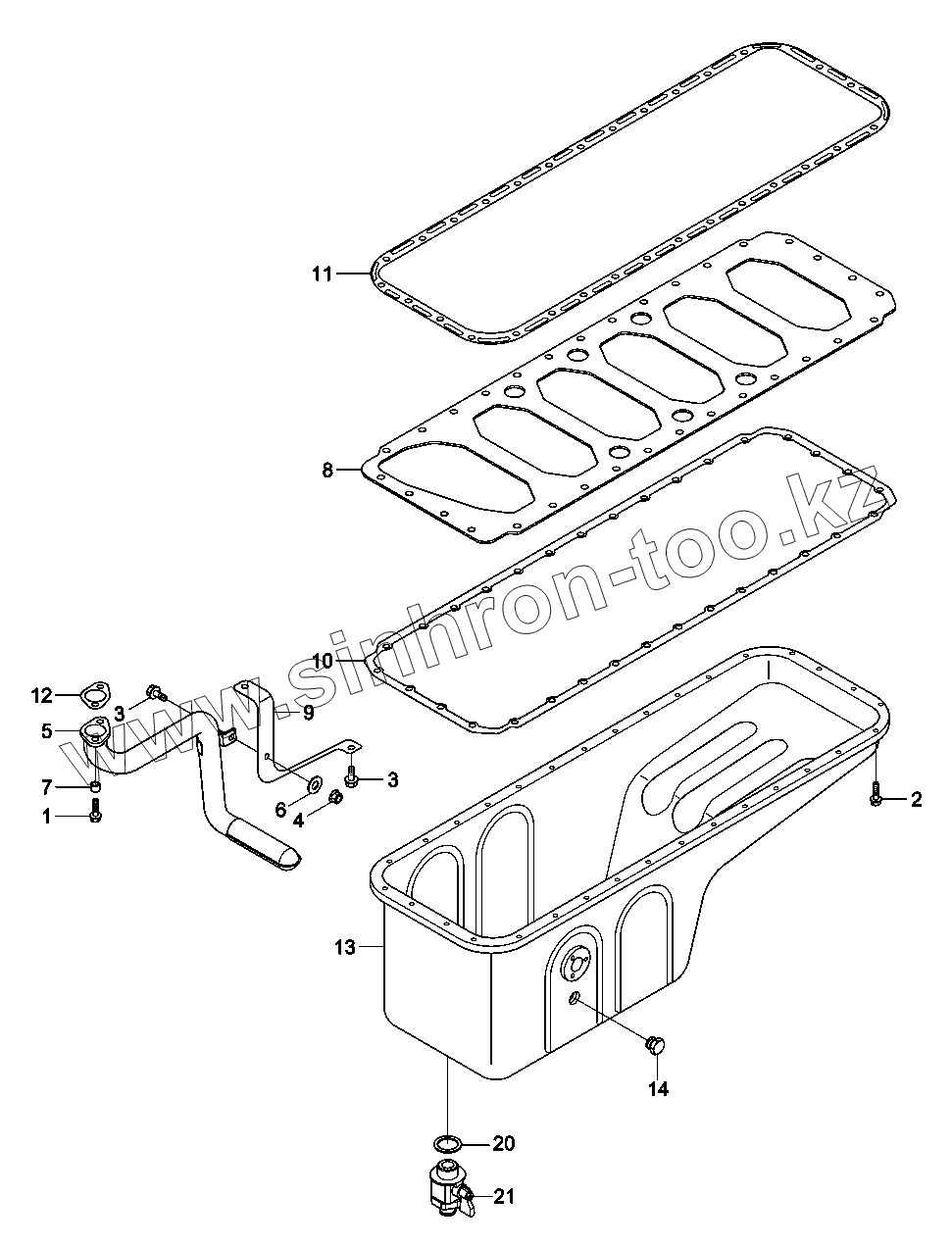

1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
20
21
Позиция на иллюстрации
Заводской номер детали
Название детали
1
3900628
SCREW-HEX F/HEAD CAP
2
3900631
SCREW-HEX F/HEAD CAP
3
3901865
SCREW-HEX F/HEAD CAP
4
3906216
NUT-HEX FLANGE
5
3910787
CONNECTION
6
3910960
WASHER-PLAIN
7
3926865
SPACER-MOUNTING
8
3927606
PLATE-CYL BLOCK STIFFEN
9
3928737
BRACE-TUBE
10
3930408
GASKET-OIL PAN
11
3938160
GASKET-OIL PAN
12
3939352
GASKET-OIL SUCTION
13
4063453
FAN-OIL
14
4992508
PLUG-THREADED
20
3093844
WASHER-SEALING
21
3864441
VALVE-OIL DRAIN
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
