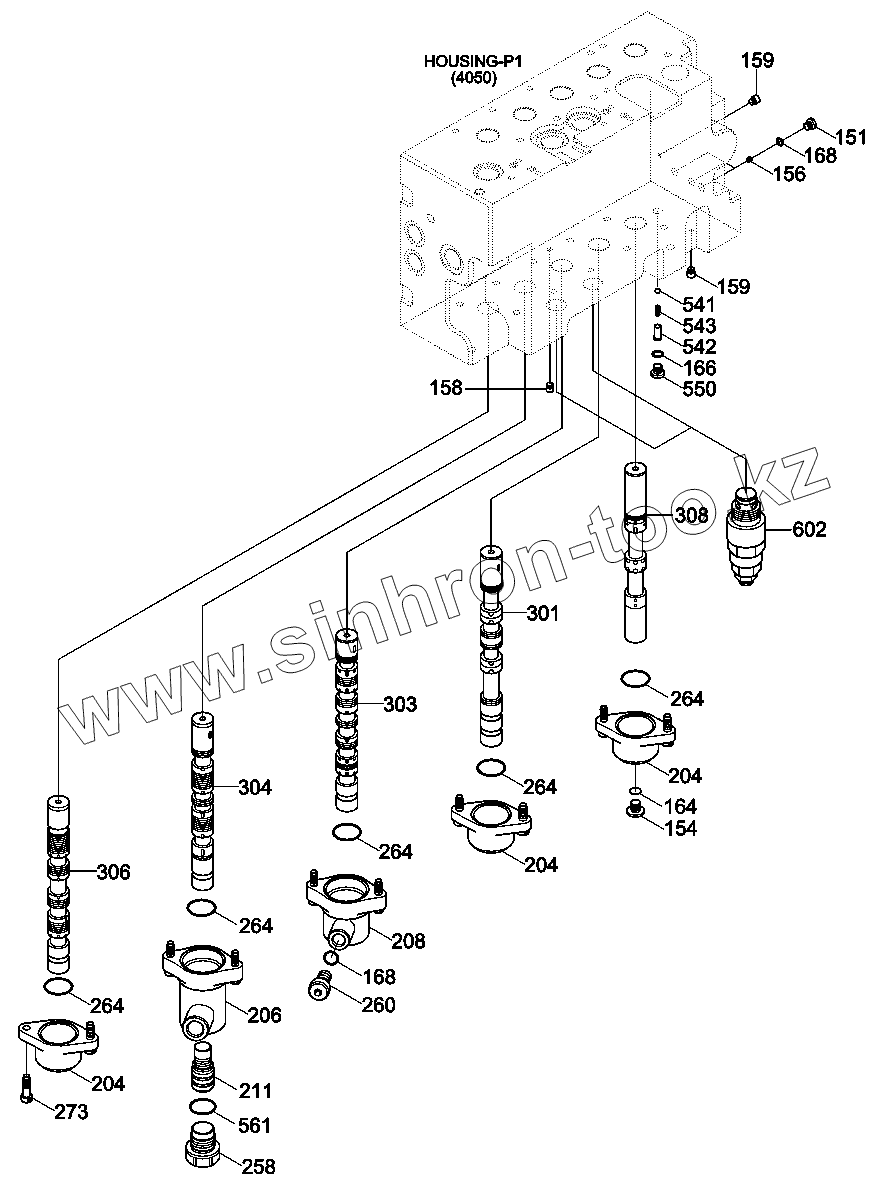

MAIN CONTROL VALVE (2/4)
Каталог запасных частей к технике: Hyundai R330LC-9A. MAIN CONTROL VALVE (2/4)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
R140W-9 (2013)
R140W-9S (2013)
R16-9 (2013)
R170W-7 (2013)
R170W-9 (2013)
R170W-9S (2013)
R180LC-9 (2013)
R180LC-9S (2013)
R180W-9S (2013)
R210LC-9 (2013)
R210NLC-9 (2013)
R210W-9 (2013)
R330LC-9A (2013)
R330LC-9S (2013)
R330LC-9SH (2013)
Схема
>
Не выбрано
ENGINE MOUNTING
FAN DRIVE SYSTEM
AIR INTAKE SYSTEM
EXHAUST SYSTEM
AFTERTREATMENT DEVICE
COOLING SYSTEM
RADIATOR ASSY
OIL COOLER SUB ASSY
FAN MOTOR
FUEL SYSTEM
FUEL TANK
AIRCON & HEATER GROUP
AIR CONDITIONER BOTTOM SUB
AIRCON & HEATER UNIT
RH ELECTRIC
LH ELECTRIC
BOOM ELECTRIC
ENGINE ELECTRIC
ELECTRIC BOX
CAB ELECTRIC 1
CAB ELECTRIC 2
CAB ROOM ELECTRIC
CLUSTER
BOTTOM ELECTRIC
FUEL FILLER PUMP
FUSE BOX
PUMP MOUNTING
HYDRAULIC TANK
UPPER HYDRAULIC PIPING (BASE)
UPPER HYDRAULIC PIPING (ATTACH)
UPPER HYDRAULIC PIPING (TRAVEL)
PILOT HYDRAULIC PIPING (CONTROL 1)
PILOT HYDRAULIC PIPING (CONTROL 2)
PILOT HYDRAULIC PIPING (CONTROL 3)
PILOT HYD PIPING (CNTL, 2-PATTERN)
PILOT HYDRAULIC PIPING (BASE 1)
PILOT HYDRAULIC PIPING (BASE 2)
PILOT HYDRAULIC PIPING (BASE 3)
TRAVEL HYDRAULIC PIPING
TRAVEL HYD PIPING (HIGH WALKER)
BOOM HYDRAULIC PIPING (6.45M, STD)
BOOM HYDRAULIC PIPING (6.15M)
BOOM GREASE LUB SYSTEM (6.45M, STD)
BOOM GREASE LUB SYSTEM (6.15M)
BOOM SAFETY LOCK
QUICK CLAMP HYD PIPING
QUICK CLAMP (HOOK TYPE)
QUICK CLAMP (CLOSE TYPE)
ARM HYDRAULIC PIPING (3.2M, STD)
ARM HYDRAULIC PIPING (2.2M)
ARM HYDRAULIC PIPING (2.5M)
ARM SAFETY LOCK SYSTEM
DOUBLE ACTING MAIN PIPING KIT 1
DOUBLE ACTING MAIN PIPING KIT 2
ATTACH PIPING KIT (S & D/ACTING)
SINGLE PEDAL (DOUBLE ACTING)
SINGLE ACTING MAIN PIPING KIT
MAIN PUMP
REGULATOR
GEAR PUMP
MAIN CONTROL VALVE (1/4)
MAIN CONTROL VALVE (2/4)
MAIN CONTROL VALVE (3/4)
MAIN CONTROL VALVE (4/4)
SWING MOTOR (TYPE 1)
SWING MOTOR (TYPE 2)
SWING REDUCTION GEAR (TYPE 1)
SWING REDUCTION GEAR (TYPE 2)
TRAVEL MOTOR (1/2)
TRAVEL MOTOR (2/2)
TRAVEL REDUCTION GEAR
REMOTE CONTROL LEVER
REMOTE CONTROL PEDAL
TURNING JOINT
BOOM CYLINDER
ARM CYLINDER
BUCKET CYLINDER
SOLENOID VALVE
UNDERCARRIAGE MOUNTING
UNDERCARRIAGE MTG (HIGH WALKER)
LOWER ROLLER
UPPER ROLLER
IDLER
TRACK CHAIN
ADJUST COMPONENT
CAB MOUNTING
CAB ASSY (1/4)
CABIN A/S
CAB ASSY (2/4)
CAB ASSY (3/4)
CAB ASSY (4/4, DOOR)
CAB INTERIOR 1
CAB INTERIOR 2
CAB INTERIOR 3
CONSOLE BOX (1/2, LH)
CONSOLE BOX (2/2, LH)
CONSOLE BOX (RH)
SEAT BASE ASSY
SEAT (SUSPENSION, HEATED, 1/2)
SEAT (SUSPENSION, HEATED, 2/2)
STORAGE BOX ASSY
BOTTOM PLATE MOUNTING
COWLING 1
COWLING 2
SIDE COWL ASSY (LH)
SIDE COVER ASSY (LH)
SIDE COWL ASSY (RH)
ENGINE HOOD
UNDER COVER
TOOL BOX MOUNTING
TOOL BOX
GROMMET GROUP
UPPER FRAME & COUNTERWEIGHT
LOWER FRAME & COVER
LOWER FRAME & COVER (HIGH WALKER)
SWING RING GREASE LUB SYSTEM
BOOM MOUNTING
BOOM (6.45M, STD & H/DUTY)
BOOM (6.15M, SHORT)
ARM (3.20M, STD & H/DUTY)
ARM (4.05M, LONG)
ARM (2.50M, SHORT)
ARM (2.20M, SHORT)
BUCKET CONTROL GROUP
BUCKET (5 TEETH)
BUCKET (3 TEETH)
BUCKET (4 TEETH)
BUCKET (6 TEETH)
BUCKET (5 TEETH, HEAVY DUTY)
BUCKET (5 TEETH, ROCK)
BUCKET (5 TEETH, CAST)
BUCKET (4 TEETH, HEAVY DUTY)
TOOLS
HCE-DT KIT
DECALS
MANUALS
CRANKSHAFT PULLEY
DATAPLATE
FRONT GEAR HOUSING
CRANKSHAFT
PISTON COOLING NOZZLE
VALVE TAPPET
CYLINDER BLOCK
CRANKCASE BREATHER
COOLANT HEATER STARTING AID
VIBRATION DAMPER
FRONT GEAR TRAIN ACCESSORY
DRAIN LOCATION
THERMOSTAT
ALTERNATOR MOUNTING
EXHAUST RECIRCULATION
EXHAUST RECIRCULATION AIR PLUMBING
EXHAUST RECIRCULATION WATER PLUMBING
FAN DRIVE MOUNTING
FAN DRIVE
FUEL DRAIN PLUMBING
FUEL FILTER PLUMBING
FUEL FILTER LOCATION
FLYWHEEL HOUSING
FUEL INLET FITTING
FUEL PUMP MOUNTING
FUEL PUMP
FUEL TRANSFER PUMP
FLYWHEEL
FRONT GEAR COVER
HEATER PLUMBING
AIR INTAKE HOSE
AIR INTAKE CONNECTION
AIR INTAKE MANIFOLD
AIR TRANSFER CONNECTION
LIFTING BRACKET MOUNTING
ENGINE OIL COOLER
OIL FILTER
OIL LEVEL GUUGE
LUBRICATING OIL PUMP
CYLINDER BLOCK COVER
OIL PAN
DRIVE PULLEY
ENGINE CONTROL MODULE PLUMBING
ENGINE CONTROL MODULE
CONNECTION ROD AND PISTON
CAMSHAFT
INJECTOR
CYLINDER HEAD
INJECTOR PLUMBING
TURBOCHARGER MOUNTING
ROCKER LEVER
ENGINE COOLANT VENT
OIL LEVEL SENSOR
HEAT SHIELD
STARTING MOTOR AND MOUNTING
EXHAUST MANIFOLD
TURBOCHARGER PLUMBING
VALVE COVER
CORROSION RESISTOR
WATER INLET & OUTLET
WATER PUMP
WATER PUMP
BELT TENSIONER
ENGINE CONTROL MODULE HARNESS
EXHAUST OUTLET CONNECTION
UPPER ENGINE GASKET KIT
LOWER ENGINE GASKET KIT
MAIN-CONTROL-VALVE
151
154
156
158
159
159
164
166
168
168
204
204
204
206
208
211
258
260
264
264
264
264
264
273
301
303
304
306
308
541
542
543
550
561
602
Позиция на иллюстрации
Заводской номер детали
Название детали
MAIN-CONTROL-VALVE
MAIN-CONTROL-VALVE
MAIN CONTROL VALVE
151
XJBN-01218
PLUG
154
XJBN-00814
PLUG
156
XJBN-00186
ORIFICE
158
XJBN-00032
PLUG
159
XJBN-00234
PLUG
164
XJBN-01357
O-RING
166
XJBN-00231
O-RING
168
XJBN-00361
O-RING
204
XJBN-00257
COVER
206
XJBN-01480
COVER
208
XJBN-01541
COVER-SPOOL
211
XJBN-01481
PISTON
258
XJBN-01482
PLUG
260
XJBN-01543
PLUG
264
XJBN-00342
O-RING
273
XJBN-00210
SCREW-SOCKET
301
XJBN-01544
SPOOL-TRAVEL
303
XJBN-01546
SPOOL-BOOM 1
304
XJBN-01547
SPOOL-BUCKET
306
XJBN-01549
SPOOL-ARM 2
308
XJBN-01520
SPOOL-S/TRAVEL
541
XJBN-01101
BALL-STEEL
542
XJBN-01255
SEAT-SPRING
543
XJBN-01256
SPRING
550
XJBN-01257
PLUG
561
XJBN-00363
O-RING
602
XJBN-01506
PORT RELIEF VALVE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
