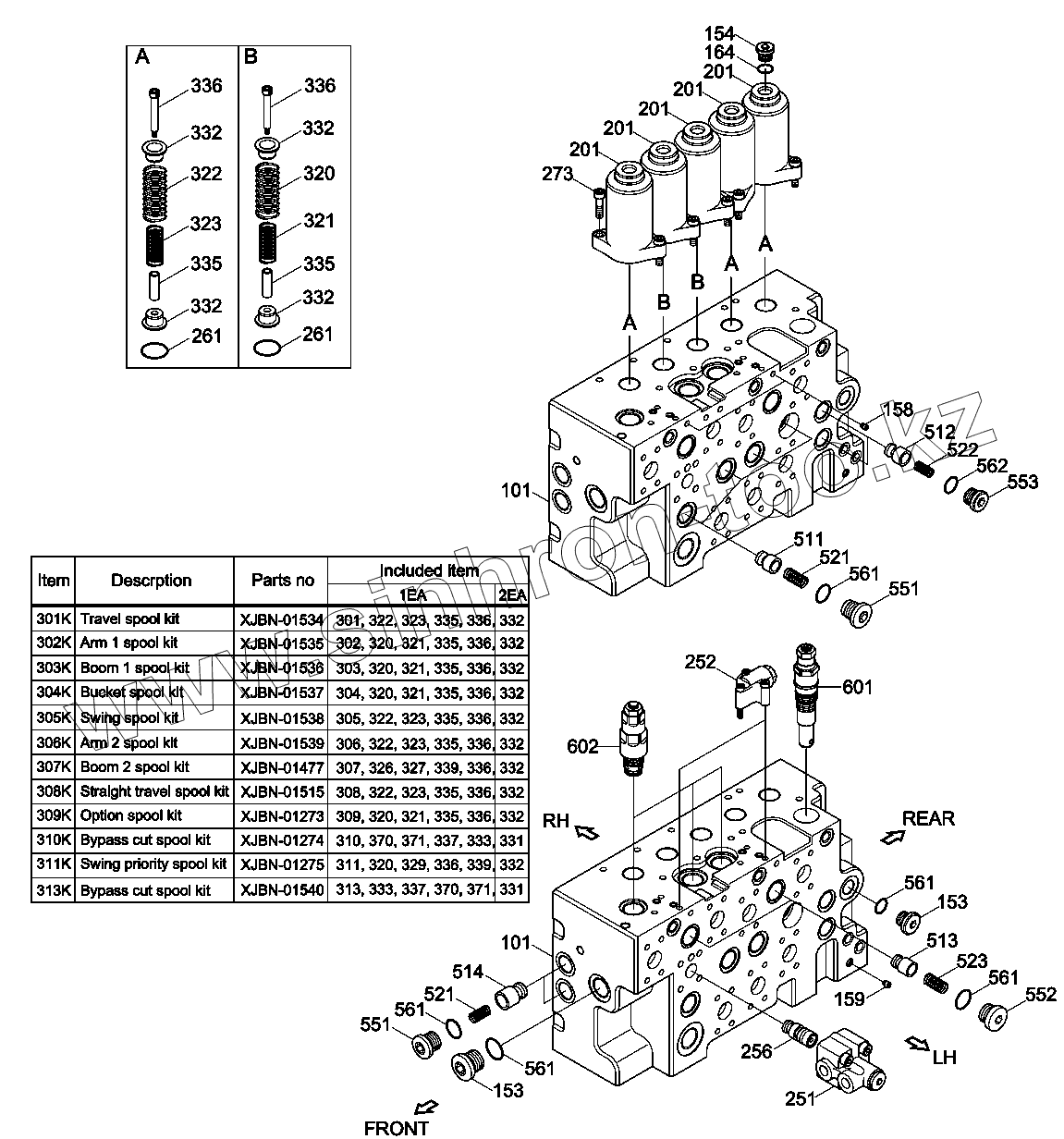

Каталог запасных частей к технике: Hyundai R330LC-9A. MAIN CONTROL VALVE (1/4)
31Q9-16110
101
101
153
153
154
158
159
164
201
201
201
201
201
251
252
256
261
261
273
301
302
303
304
305
306
307
308
309
310
311
313
320
321
322
323
332
332
332
332
335
335
336
336
511
512
513
514
521
521
522
523
551
551
552
553
561
561
561
561
561
562
601
602
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q9-16110 | 31Q9-16110 | MAIN CONTROL VALVE | |
| 101 | XJBN-01468 | HOUSING-P1 | |
| 153 | XJBN-00773 | PLUG | |
| 154 | XJBN-00814 | PLUG | |
| 158 | XJBN-00032 | PLUG | |
| 159 | XJBN-00234 | PLUG | |
| 164 | XJBN-00233 | O-RING | |
| 201 | XJBN-01224 | COVER-SPRING | |
| 251 | XJBN-01469 | CONTROL VALVE-LOGIC | |
| 252 | XJBN-01229 | SELECTOR VALVE-LOCK | |
| 256 | XJBN-01470 | POPPET-LOGIC | |
| 261 | XJBN-01234 | O-RING | |
| 273 | XJBN-00210 | SCREW-SOCKET | |
| 301 | XJBN-01534 | TRAVEL SPOOL KIT | |
| 302 | XJBN-01535 | ARM 1 SPOOL KIT | |
| 303 | XJBN-01536 | BOOM SPOOL KIT | |
| 304 | XJBN-01537 | BUCKET SPOOL KIT | |
| 305 | XJBN-01538 | SWING SPOOL KIT | |
| 306 | XJBN-01539 | ARM 2 SPOOL KIT | |
| 307 | XJBN-01477 | BOOM 2 SPOOL KIT | |
| 308 | XJBN-01515 | STRAIGNT TRAVEL SPL KIT | |
| 309 | XJBN-01273 | OPTION SPOOL KIT | |
| 310 | XJBN-01274 | BYPASS CUT SPOOL KIT | |
| 311 | XJBN-01275 | SWING PRIORITY SPOOL KIT | |
| 313 | XJBN-01540 | BYPASS-CUT SPOOL KIT | |
| 320 | XJBN-00185 | SPRING | |
| 321 | XJBN-00180 | SPRING | |
| 322 | XJBN-01064 | SPRING | |
| 323 | XJBN-01065 | SPRING | |
| 332 | XJBN-00194 | SEAT | |
| 335 | XJBN-00191 | STOPPER | |
| 336 | XJBN-00190 | BOLT | |
| 511 | XJBN-00172 | POPPET | |
| 512 | XJBN-01252 | POPPET | |
| 513 | XJBN-00170 | POPPET | |
| 514 | XJBN-01253 | POPPET | |
| 521 | XJBN-00169 | SPRING | |
| 522 | XJBN-01254 | SPRING | |
| 523 | XJBN-00168 | SPRING | |
| 551 | XJBN-00167 | PLUG | |
| 552 | XJBN-00166 | PLUG | |
| 553 | XJBN-01259 | PLUG | |
| 561 | XJBN-00046 | O-RING | |
| 562 | XJBN-00282 | O-RING | |
| 601 | XJBN-01551 | MAIN RELIEF VALVE ASSY | |
| 602 | XJBN-01506 | PORT RELIEF VALVE |
