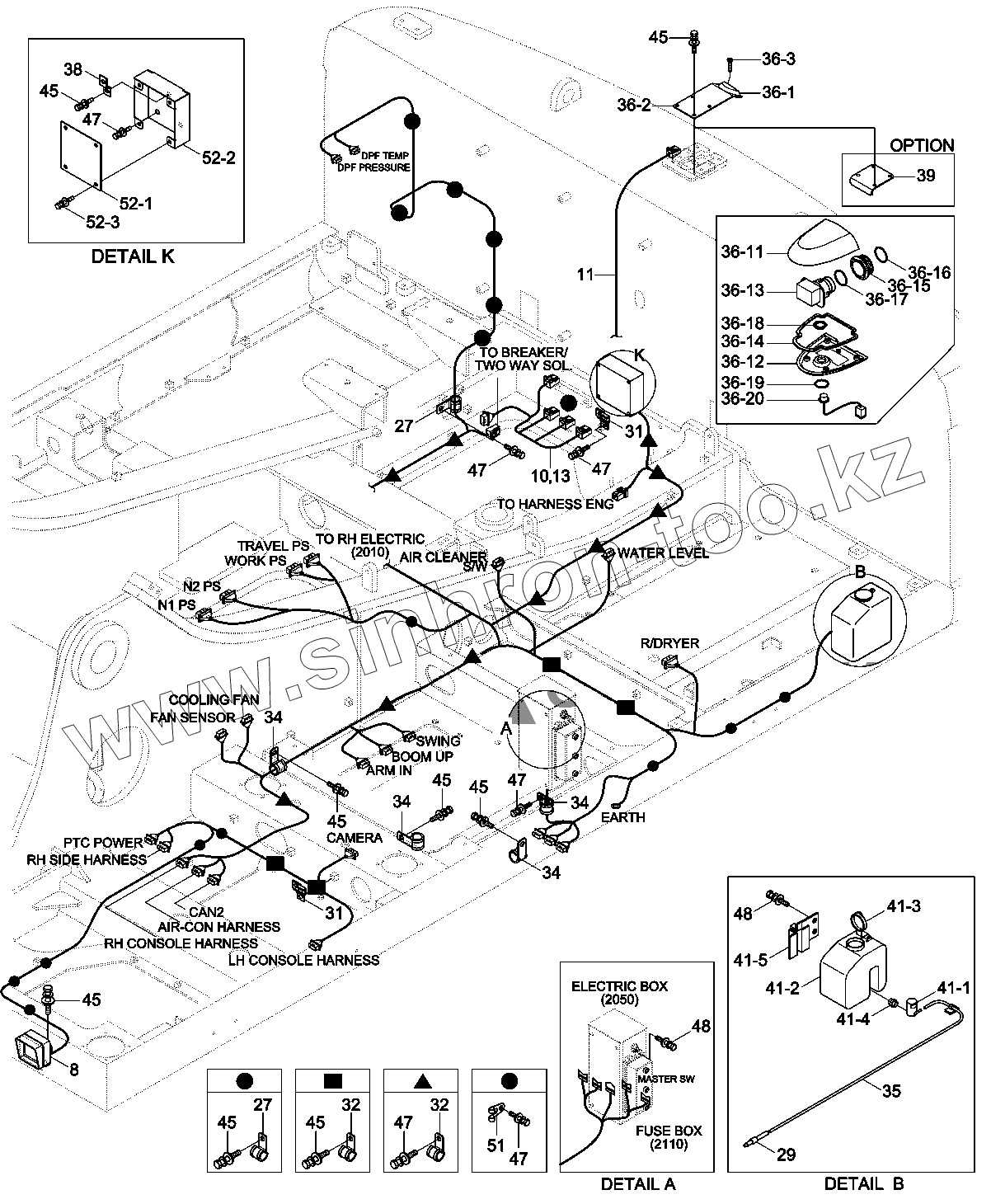

Каталог запасных частей к технике: Hyundai R330LC-9A. LH ELECTRIC
10
11
13
27
27
29
31
31
32
32
34
34
34
34
35
36
36-1
36-2
36-3
38
39
41
41-1
41-2
41-3
41-4
41-5
45
45
45
45
45
45
45
45
47
47
47
47
47
47
48
48
51
52
52-1
52-2
52-3
8
8-1
36-11
36-12
36-13
36-14
36-15
36-16
36-17
36-18
36-19
36-20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 21Q8-11130 | HARNESS-BREAKER | |
| 11 | 21Q6-11142 | HARNESS-CAMERA | |
| 13 | 21Q8-11110 | HARNESS-TWO WAY | |
| 27 | 31L7-10190 | CLAMP-TUBE | |
| 29 | 21EM-30570 | CONNECTOR-TUBE | |
| 31 | 25D1-10650 | CLIP ASSY | |
| 32 | 31L7-10200 | CLAMP-TUBE | |
| 34 | 31L7-10230 | CLAMP | |
| 35 | 21EM-30581 | HOSE-RUBBER | |
| 36 | 21Q6-60102 | REAR VIEW CAMERA KIT | |
| 36-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 36-2 | 21AB-50011 | BRACKET-CAMERA | |
| 36-3 | S141-050102 | SCREW-FLAT HD | |
| 38 | 21N4-01130 | PLATE-CLIP | |
| 39 | 21Q6-60030 | PLATE | |
| 41 | 21EG-30630 | WASHER TANK ASSY | |
| 41-1 | 21EG-10130 | PUMP-MOTOR | |
| 41-2 | 21EG-10140 | TANK | |
| 41-3 | 24L3-30660 | CAP | |
| 41-4 | 24L3-30670 | RUBBER-BUSHING | |
| 41-5 | 24L3-30710 | PLATE | |
| 45 | S037-101526 | BOLT-W/WASHER | |
| 47 | S037-102026 | BOLT-W/WASHER | |
| 48 | S035-062026 | BOLT-W/WASHER | |
| 51 | 21E9-00170 | CLIP-HARNESS | |
| 52 | 21Q4-91040 | COVER ASSY | |
| 52-1 | 21Q4-91070 | COVER | |
| 52-2 | 21Q4-91050 | PLATE | |
| 52-3 | S035-081526 | BOLT-W/WASHER | |
| 8 | 21QB-60700 | WORK LAMP ASSY | |
| 8-1 | S866-240650 | BULB | |
| 36-11 | 21AB-30110 | COVER-TOP | |
| 36-12 | 21AB-30120 | COVER-BOTTOM | |
| 36-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| 36-14 | 21AB-30140 | GASKET | |
| 36-15 | 21AB-30150 | LENS-WINDOW | |
| 36-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| 36-17 | 21AB-30170 | O-RING-CAM | |
| 36-18 | 21AB-30180 | NUT-VOLUME | |
| 36-19 | 21AB-30190 | O-RING | |
| 36-20 | 21AB-30210 | CABLE ASSY |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
