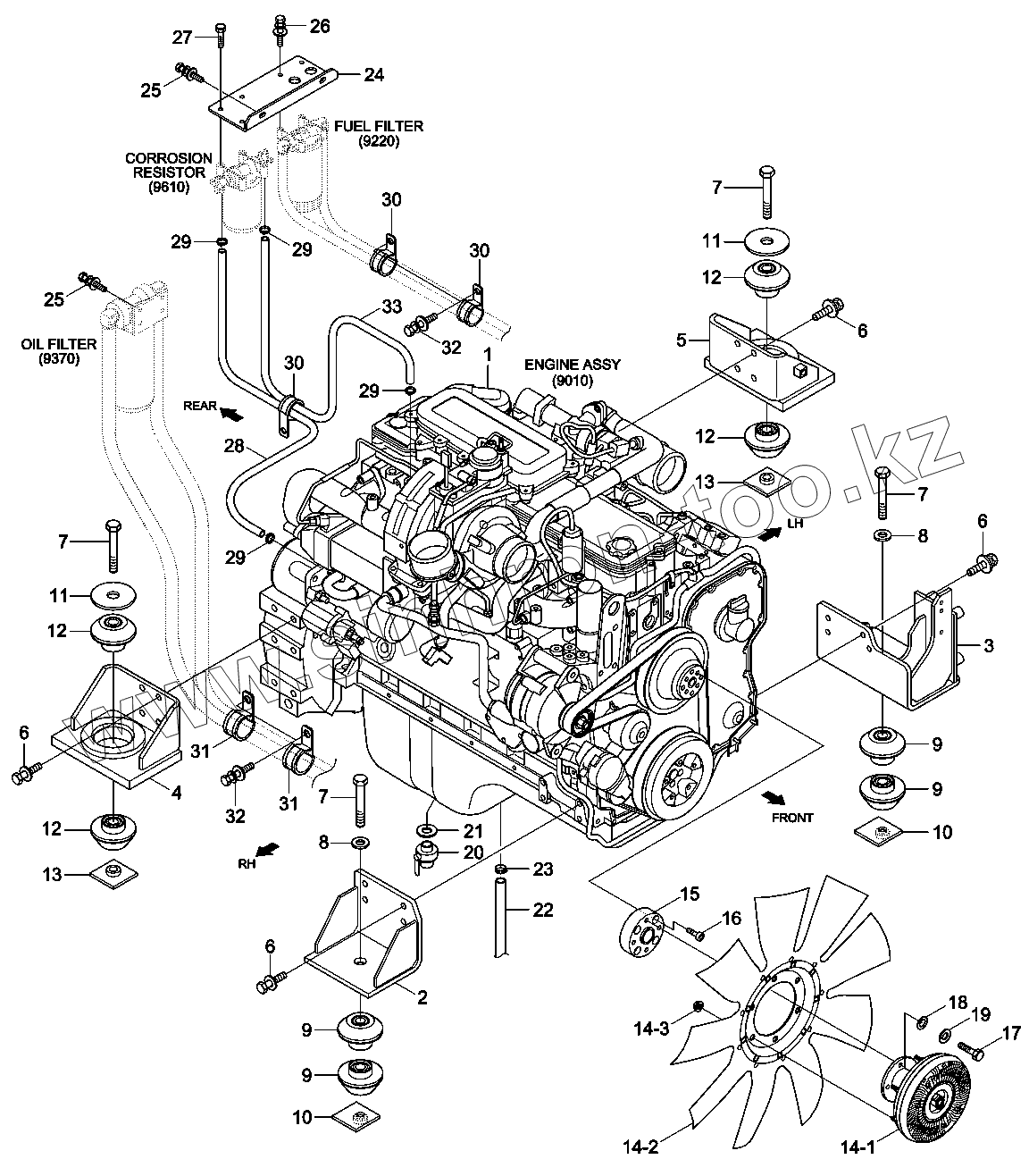

Каталог запасных частей к технике: Hyundai R330LC-9A. ENGINE MOUNTING
1
10
10
11
11
12
12
12
12
13
13
14
14-1
14-2
14-3
15
16
17
18
19
2
20
21
22
23
24
25
25
26
27
28
29
29
29
29
3
30
30
30
31
31
32
32
33
4
5
6
6
6
6
7
7
7
7
8
8
9
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11Q9-02010 | ENGINE ASSY | |
| 10 | 11NA-00040 | NUT-STOPPER | |
| 11 | 11N8-00060 | WASHER | |
| 12 | 11N6-13060 | RESILIENT | |
| 13 | 11N6-00160 | NUT-STOPPER | |
| 14 | 11Q6-00290 | FAN CLUTCH ASSY | |
| 14-1 | 11Q6-00250 | CLUTCH-FAN | |
| 14-2 | 11Q6-01250 | FAN-COOLING | |
| 14-3 | S285-081006 | NUT-FLANGED | |
| 15 | 11Q6-00160 | SPACER | |
| 16 | S109-100356 | BOLT-SOCKET | |
| 17 | S027-100306 | BOLT-MINI HEX | |
| 18 | S403-10200B | WASHER-PLAIN | |
| 19 | S411-100006 | WASHER-SPRING | |
| 2 | 11Q9-00040 | BRACKET-MTG | |
| 20 | 11N9-00230 | DRAIN VALVE-ENG OIL | |
| 21 | P392-220000 | WASHER-COPPER | |
| 22 | 11QA-00070 | HOSE-BREATHER | |
| 23 | S520-027000 | CLAMP-HOSE | |
| 24 | 11QA-03121 | BRACKET | |
| 25 | S037-103026 | BOLT-W/WASHER | |
| 26 | S035-082526 | BOLT-W/WASHER | |
| 27 | S087-060246 | BOLT-HEX, UNIFIED | |
| 28 | 11L1-3010 | HOSE-OVER FLOW | |
| 29 | S520-017000 | CLAMP-HOSE | |
| 3 | 11QA-00091 | BRACKET-ENG & COMP | |
| 30 | 31L7-10200 | CLAMP-TUBE | |
| 31 | 31L7-10240 | CLAMP-TUBE INS | |
| 32 | S037-101526 | BOLT-W/WASHER | |
| 33 | 11Q9-03120 | HOSE | |
| 4 | 11QA-03130 | BRACKET-REAR | |
| 5 | 11QA-03170 | BRACKET-REAR | |
| 6 | S037-123556 | BOLT-W/WASHER | |
| 7 | S017-241806 | BOLT-HEX | |
| 8 | S441-240006 | WASHER-HARDENED | |
| 9 | 11N6-13050 | RUBBER-MOUNT | |
| 9 | 11N6-13055 | RUBBER-MOUNT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
