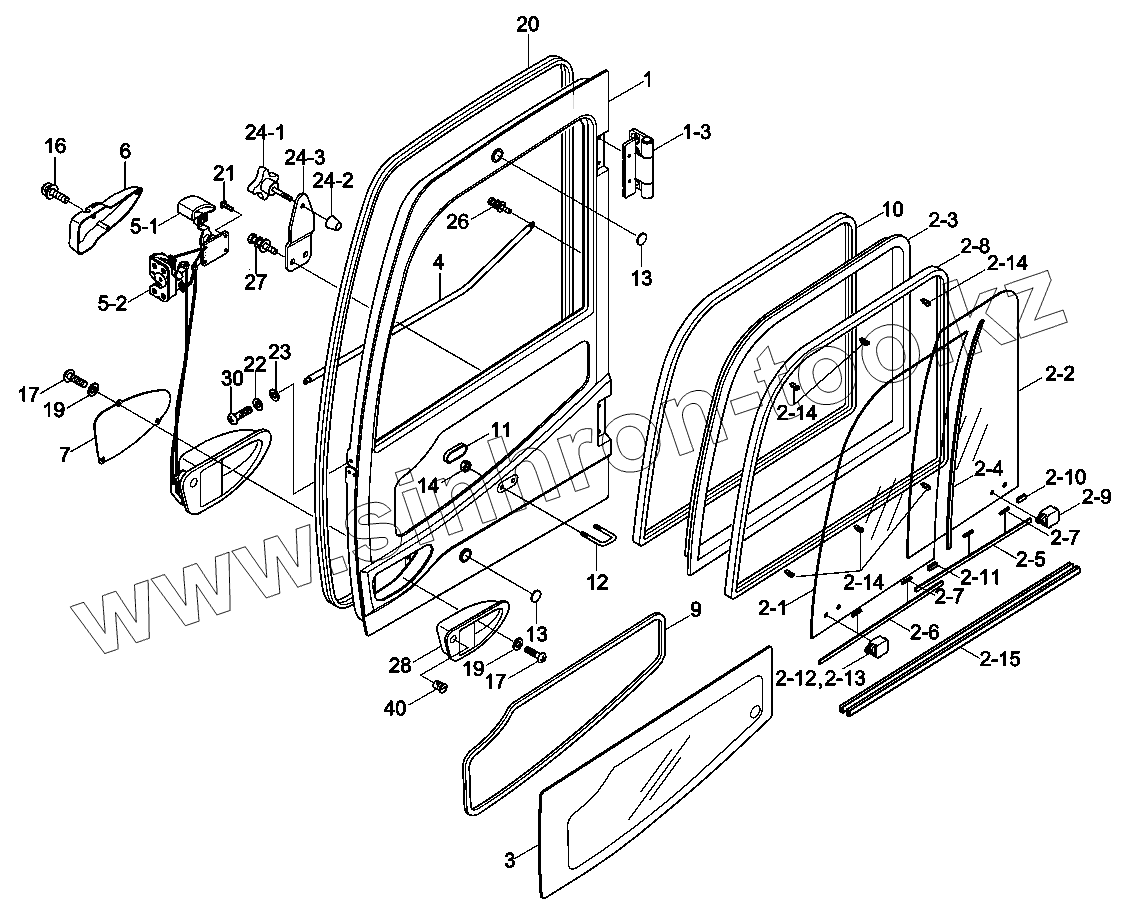

Каталог запасных частей к технике: Hyundai R330LC-9A. CAB ASSY (4/4, DOOR)
71Q6-03300
71Q6-03350
71Q6-03360
71Q6-03360
71Q6-03360
71Q6-03241
71Q6-03251
71Q6-03260
71Q6-03271
71Q6-03281
CAB ASSY
71Q6-03291
71Q6-03291
71Q6-03310
71Q6-02262
71Q6-02290
71Q6-02281
72Q6-02140
72Q6-02131
71Q6-03370
71Q6-03330
71Q6-02002
71Q6-02102
71Q6-03231
71Q6-03340
71Q6-03320
1
2
3
4
5
6
7
9
10
11
12
13
13
14
16
17
17
19
19
20
21
22
23
24
26
27
28
30
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 71Q6-03300 | 71Q6-03300 | SEAL | |
| 71Q6-03350 | 71Q6-03350 | CATCH | |
| 71Q6-03360 | 71Q6-03360 | RUBBER | |
| 71Q6-03241 | 71Q6-03241 | GLASS-REAR | |
| 71Q6-03251 | 71Q6-03251 | FRAME | |
| 71Q6-03260 | 71Q6-03260 | MOHAIR | |
| 71Q6-03271 | 71Q6-03271 | RAIL | |
| 71Q6-03281 | 71Q6-03281 | RAIL | |
| CAB ASSY | CAB ASSY | CAB ASSY | |
| 71Q6-03291 | 71Q6-03291 | RAIL | |
| 71Q6-03310 | 71Q6-03310 | LOCK ASSY | |
| 71Q6-02262 | 71Q6-02262 | BOLT-KNOB | |
| 71Q6-02290 | 71Q6-02290 | RUBBER-BUMPER | |
| 71Q6-02281 | 71Q6-02281 | PLATE | |
| 72Q6-02140 | 72Q6-02140 | LEVER ASSY | |
| 72Q6-02131 | 72Q6-02131 | LATCH ASSY-INNER | |
| 71Q6-03370 | 71Q6-03370 | FRAME-LOWER | |
| 71Q6-03330 | 71Q6-03330 | LOCK | |
| 71Q6-02002 | 71Q6-02002 | SIDE DOOR ASSY | |
| 71Q6-02102 | 71Q6-02102 | HINGE | |
| 71Q6-03231 | 71Q6-03231 | GLASS-FRONT | |
| 71Q6-03340 | 71Q6-03340 | LOCK | |
| 71Q6-03320 | 71Q6-03320 | LOCK | |
| 1 | 71Q6-02012 | SIDE DOOR WA | |
| 2 | 71Q6-02020 | SASH ASSY | |
| 3 | 71Q6-02031 | GLASS-DOOR | |
| 4 | 71Q6-02242 | HANDRAIL | |
| 5 | 72Q6-02121 | HANDLE ASSY | |
| 6 | 71Q6-02140 | COVER | |
| 7 | 71Q6-02061 | COVER | |
| 9 | S778-021500 | WEATHER STRIP | |
| 10 | S778-021900 | WEATHER STRIP | |
| 11 | 71M8-00680 | RUBBER-CAP | |
| 12 | 71N6-03650 | STRIKER | |
| 13 | 17E1-5146 | BUMPER-DOOR | |
| 14 | S205-10100B | NUT-HEX | |
| 16 | S131-043046 | SCREW-W/WASHER | |
| 17 | S151-050156 | SCREW-TAPPING | |
| 19 | S411-050006 | WASHER-SPRING | |
| 20 | S776-050300 | WEATHER STRIP | |
| 21 | S161-060156 | SCREW-CROSS R/ROUND | |
| 22 | S411-060006 | WASHER-SPRING | |
| 23 | S403-06200B | WASHER-PLAIN | |
| 24 | 71Q6-02082 | STOPPER ASSY | |
| 26 | S037-082526 | BOLT-W/WASHER | |
| 27 | S141-060166 | SCREW-FLAT HD | |
| 28 | 72Q6-02110 | HANDLE-OUTER | |
| 30 | S161-060206 | SCREW-CROSS R/ROUND | |
| 40 | 71Q6-02050 | ROTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
