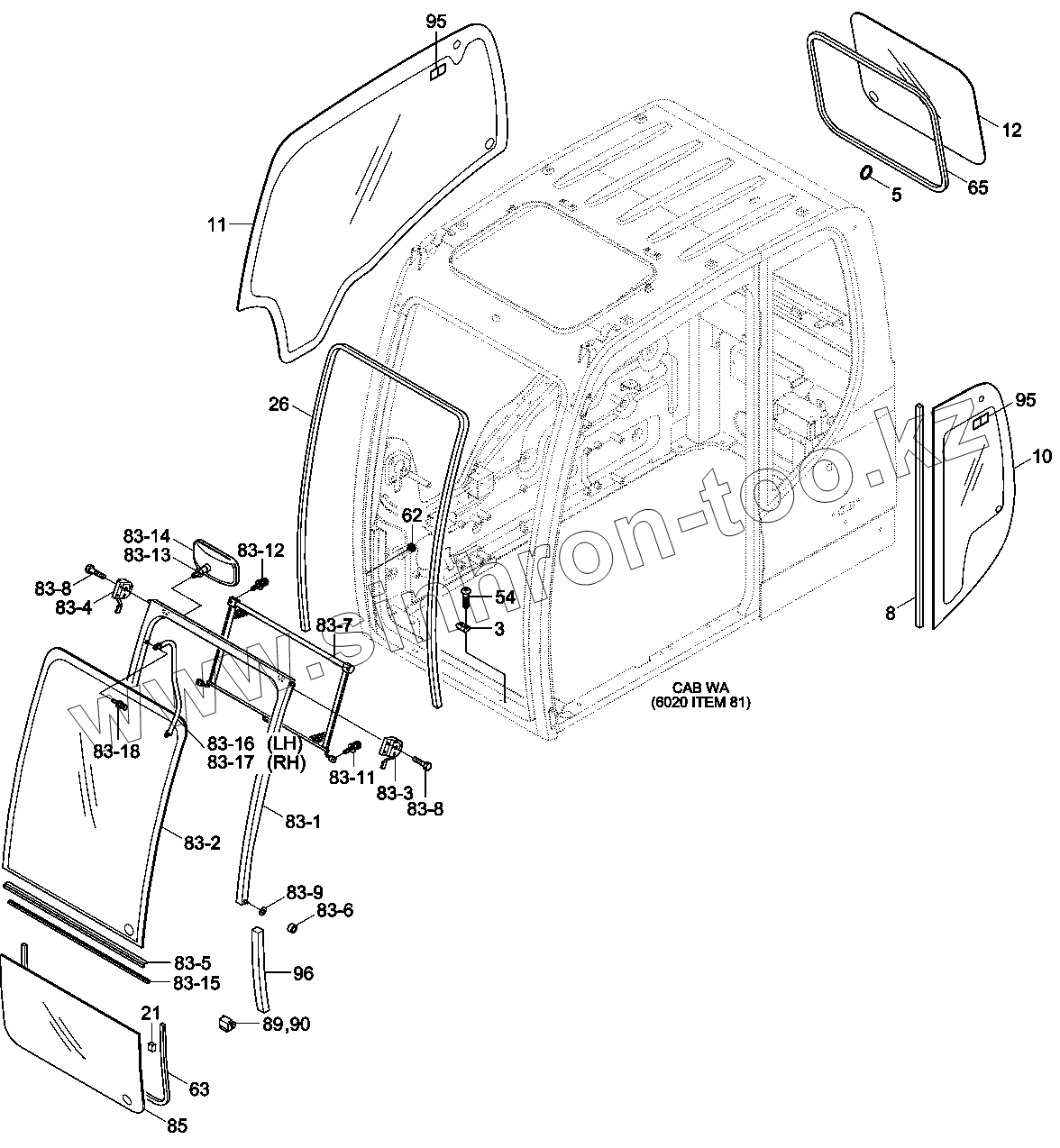

Каталог запасных частей к технике: Hyundai R330LC-9A. CAB ASSY (3/4)
CABIN
71Q6-02474
71Q6-02651
71Q6-03010
71L1-3377
S204-081006
S131-041246
S131-042046
71Q6-02411
71Q4-02411
S035-082526
71Q6-02441
71Q4-02441
71Q6-02480
71Q6-02490
71Q4-03020
71N6-03150
71Q6-03581
S017-100156
S017-100156
S403-101002
3
5
8
10
11
12
21
26
54
62
63
65
83
83
85
85
89
89
90
90
95
95
96
96
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| CABIN | CABIN | CABIN ASSY | |
| 71Q6-02474 | 71Q6-02474 | HANDLE | |
| 71Q6-02651 | 71Q6-02651 | HANDLE | |
| 71Q6-03010 | 71Q6-03010 | SEAL | |
| 71L1-3377 | 71L1-3377 | MIRROR-ROOM | |
| S204-081006 | S204-081006 | NUT-HEX | |
| S131-041246 | S131-041246 | SCREW-W/WASHER | |
| S131-042046 | S131-042046 | SCREW-W/WASHER | |
| 71Q6-02411 | 71Q6-02411 | SLIDING DOOR WA | |
| 71Q4-02411 | 71Q4-02411 | SLIDING DOOR WA | |
| S035-082526 | S035-082526 | BOLT-W/WASHER | |
| 71Q6-02441 | 71Q6-02441 | GLASS-SLIDING DOOR | |
| 71Q4-02441 | 71Q4-02441 | GLASS-SLIDING DOOR | |
| 71Q6-02480 | 71Q6-02480 | LATCH-SLIDING, LH | |
| 71Q6-02490 | 71Q6-02490 | LATCH-SLIDING, RH | |
| 71Q4-03020 | 71Q4-03020 | SASH | |
| 71N6-03150 | 71N6-03150 | ROLLER | |
| 71Q6-03581 | 71Q6-03581 | SUN VISOR ASSY | |
| S017-100156 | S017-100156 | BOLT-HEX | |
| S403-101002 | S403-101002 | WASHER-PLAIN | |
| 3 | 71N6-02880 | INSULATOR | |
| 5 | 71N6-03320 | RING | |
| 8 | S778-009900 | WEATHER STRIP | |
| 10 | 71Q6-02722 | GLASS-LH/RR | |
| 11 | 71Q6-02731 | GLASS-RH | |
| 12 | 71Q6-02740 | GLASS-RR | |
| 21 | 71Q6-03040 | SPONGE | |
| 26 | 71Q6-03480 | SEAL-FRONT | |
| 54 | S141-050206 | SCREW-FLAT HD | |
| 62 | S681-100800 | GROMMET | |
| 63 | 71N6-03150 | ROLLER | |
| 65 | S781-124302 | SEAL-GLASS | |
| 83 | 71Q4-02401 | SLIDING DOOR ASSY | |
| 83 | 71Q6-02401 | SLIDING DOOR ASSY | |
| 85 | 71Q4-02711 | GLASS-FR/BOTTOM | |
| 85 | 71Q6-02711 | GLASS-FR/BOTTOM | |
| 89 | 72Q6-02900 | STOPPER-LH | |
| 89 | 71Q6-02900 | STOPPER-LH | |
| 90 | 72Q6-02910 | STOPPER-RH | |
| 90 | 71Q6-02910 | STOPPER-RH | |
| 95 | 91Q6-07250 | DECAL-SAFETY FR WIN | |
| 96 | 71Q6-02750 | SEAL | |
| 96 | 72Q6-02750 | SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
