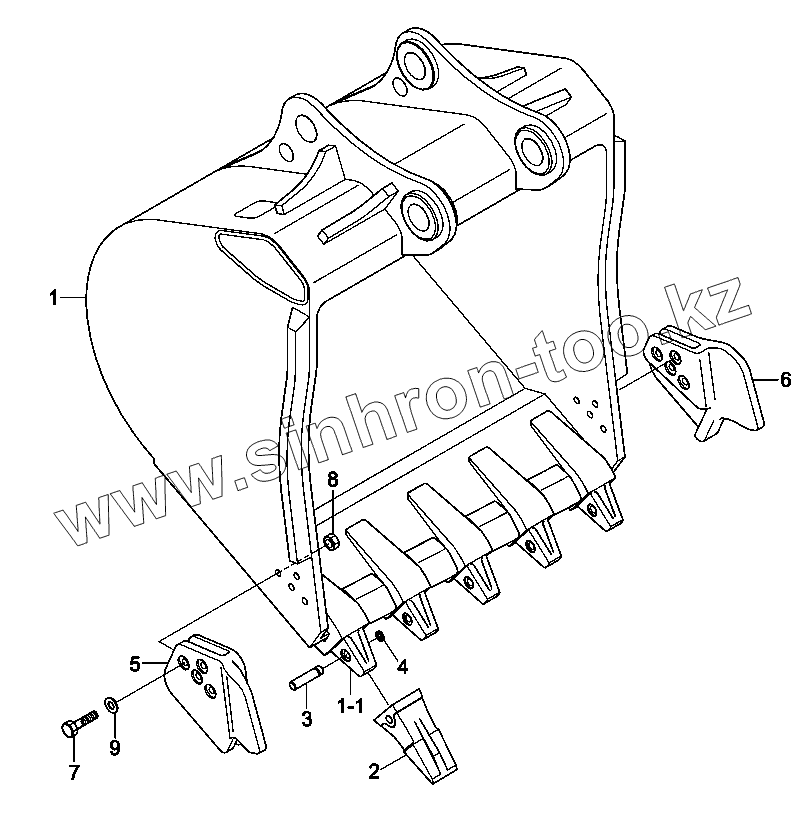

Каталог запасных частей к технике: Hyundai R330LC-9A. BUCKET (5 TEETH, CAST)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING FAN DRIVE SYSTEM AIR INTAKE SYSTEM EXHAUST SYSTEM AFTERTREATMENT DEVICE COOLING SYSTEM RADIATOR ASSY OIL COOLER SUB ASSY FAN MOTOR FUEL SYSTEM FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT RH ELECTRIC LH ELECTRIC BOOM ELECTRIC ENGINE ELECTRIC ELECTRIC BOX CAB ELECTRIC 1 CAB ELECTRIC 2 CAB ROOM ELECTRIC CLUSTER BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX PUMP MOUNTING HYDRAULIC TANK UPPER HYDRAULIC PIPING (BASE) UPPER HYDRAULIC PIPING (ATTACH) UPPER HYDRAULIC PIPING (TRAVEL) PILOT HYDRAULIC PIPING (CONTROL 1) PILOT HYDRAULIC PIPING (CONTROL 2) PILOT HYDRAULIC PIPING (CONTROL 3) PILOT HYD PIPING (CNTL, 2-PATTERN) PILOT HYDRAULIC PIPING (BASE 1) PILOT HYDRAULIC PIPING (BASE 2) PILOT HYDRAULIC PIPING (BASE 3) TRAVEL HYDRAULIC PIPING TRAVEL HYD PIPING (HIGH WALKER) BOOM HYDRAULIC PIPING (6.45M, STD) BOOM HYDRAULIC PIPING (6.15M) BOOM GREASE LUB SYSTEM (6.45M, STD) BOOM GREASE LUB SYSTEM (6.15M) BOOM SAFETY LOCK QUICK CLAMP HYD PIPING QUICK CLAMP (HOOK TYPE) QUICK CLAMP (CLOSE TYPE) ARM HYDRAULIC PIPING (3.2M, STD) ARM HYDRAULIC PIPING (2.2M) ARM HYDRAULIC PIPING (2.5M) ARM SAFETY LOCK SYSTEM DOUBLE ACTING MAIN PIPING KIT 1 DOUBLE ACTING MAIN PIPING KIT 2 ATTACH PIPING KIT (S & D/ACTING) SINGLE PEDAL (DOUBLE ACTING) SINGLE ACTING MAIN PIPING KIT MAIN PUMP REGULATOR GEAR PUMP MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR (TYPE 1) SWING MOTOR (TYPE 2) SWING REDUCTION GEAR (TYPE 1) SWING REDUCTION GEAR (TYPE 2) TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2) TRAVEL REDUCTION GEAR REMOTE CONTROL LEVER REMOTE CONTROL PEDAL TURNING JOINT BOOM CYLINDER ARM CYLINDER BUCKET CYLINDER SOLENOID VALVE UNDERCARRIAGE MOUNTING UNDERCARRIAGE MTG (HIGH WALKER) LOWER ROLLER UPPER ROLLER IDLER TRACK CHAIN ADJUST COMPONENT CAB MOUNTING CAB ASSY (1/4) CABIN A/S CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX (1/2, LH) CONSOLE BOX (2/2, LH) CONSOLE BOX (RH) SEAT BASE ASSY SEAT (SUSPENSION, HEATED, 1/2) SEAT (SUSPENSION, HEATED, 2/2) STORAGE BOX ASSY BOTTOM PLATE MOUNTING COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & COVER LOWER FRAME & COVER (HIGH WALKER) SWING RING GREASE LUB SYSTEM BOOM MOUNTING BOOM (6.45M, STD & H/DUTY) BOOM (6.15M, SHORT) ARM (3.20M, STD & H/DUTY) ARM (4.05M, LONG) ARM (2.50M, SHORT) ARM (2.20M, SHORT) BUCKET CONTROL GROUP BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (4 TEETH) BUCKET (6 TEETH) BUCKET (5 TEETH, HEAVY DUTY) BUCKET (5 TEETH, ROCK) BUCKET (5 TEETH, CAST) BUCKET (4 TEETH, HEAVY DUTY) TOOLS HCE-DT KIT DECALS MANUALS CRANKSHAFT PULLEY DATAPLATE FRONT GEAR HOUSING CRANKSHAFT PISTON COOLING NOZZLE VALVE TAPPET CYLINDER BLOCK CRANKCASE BREATHER COOLANT HEATER STARTING AID VIBRATION DAMPER FRONT GEAR TRAIN ACCESSORY DRAIN LOCATION THERMOSTAT ALTERNATOR MOUNTING EXHAUST RECIRCULATION EXHAUST RECIRCULATION AIR PLUMBING EXHAUST RECIRCULATION WATER PLUMBING FAN DRIVE MOUNTING FAN DRIVE FUEL DRAIN PLUMBING FUEL FILTER PLUMBING FUEL FILTER LOCATION FLYWHEEL HOUSING FUEL INLET FITTING FUEL PUMP MOUNTING FUEL PUMP FUEL TRANSFER PUMP FLYWHEEL FRONT GEAR COVER HEATER PLUMBING AIR INTAKE HOSE AIR INTAKE CONNECTION AIR INTAKE MANIFOLD AIR TRANSFER CONNECTION LIFTING BRACKET MOUNTING ENGINE OIL COOLER OIL FILTER OIL LEVEL GUUGE LUBRICATING OIL PUMP CYLINDER BLOCK COVER OIL PAN DRIVE PULLEY ENGINE CONTROL MODULE PLUMBING ENGINE CONTROL MODULE CONNECTION ROD AND PISTON CAMSHAFT INJECTOR CYLINDER HEAD INJECTOR PLUMBING TURBOCHARGER MOUNTING ROCKER LEVER ENGINE COOLANT VENT OIL LEVEL SENSOR HEAT SHIELD STARTING MOTOR AND MOUNTING EXHAUST MANIFOLD TURBOCHARGER PLUMBING VALVE COVER CORROSION RESISTOR WATER INLET & OUTLET WATER PUMP WATER PUMP BELT TENSIONER ENGINE CONTROL MODULE HARNESS EXHAUST OUTLET CONNECTION UPPER ENGINE GASKET KIT LOWER ENGINE GASKET KIT

68Q9-30100

68N8-31321

E262-5004-S

1

2

3

4

5

6

7

8

9

Позиция на иллюстрации	Заводской номер детали		Название детали
68Q9-30100	68Q9-30100		BUCKET ASSY-CASTING
68N8-31321	68N8-31321		ADAPTER-TOOTH
E262-5004-S	E262-5004-S		TOOTH PIN KIT
1	68Q9-31010		BUCKET WA-CASTING
2	61N8-31310GG		POINT-TOOTH
3	E262-5004		PIN-TOOTH
4	61E5-11150		WASHER-LOCK
5	68N8-31040		SIDE REINF-LH
6	68N8-31050		SIDE REINF-RH
7	S019-18065D		BOLT-HEX
8	S205-18100B		NUT-HEX
9	S411-180006		WASHER-SPRING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
