Каталог запасных частей к технике: Hyundai R330LC-9A. BOOM CYLINDER
31Q9-50120
31Y1-33420
S411-100002
S205-101002
S070-053442
S015-120452
S411-120002
31Y1-33370
31Y1-33360
31Y1-33350
31Q9-50110
31Y1-33170
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
24
24
25
25
25
25
26
26
27
27
28
28
29
29
30
30

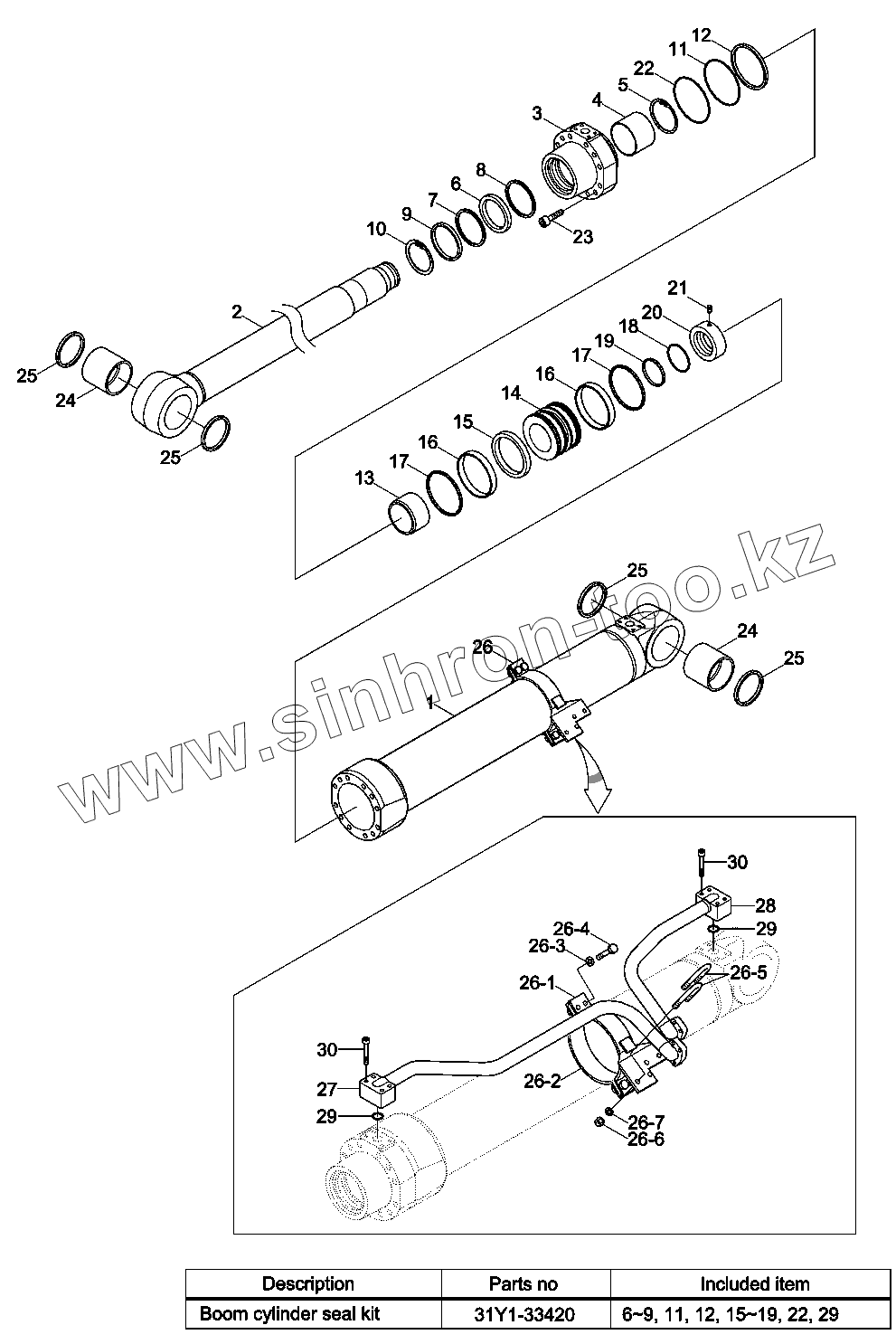

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q9-50120 | 31Q9-50120 | BOOM CYLINDER ASSY-RH | |
| 31Y1-33420 | 31Y1-33420 | SEAL KIT | |
| S411-100002 | S411-100002 | WASHER-SPRING | |
| S205-101002 | S205-101002 | NUT-HEX | |
| S070-053442 | S070-053442 | U-BOLT | |
| S015-120452 | S015-120452 | BOLT-HEX | |
| S411-120002 | S411-120002 | WASHER-SPRING | |
| 31Y1-33370 | 31Y1-33370 | BAND SUB ASSY | |
| 31Y1-33360 | 31Y1-33360 | BAND SUB ASSY-RH | |
| 31Y1-33350 | 31Y1-33350 | BAND SUB ASSY-LH | |
| 31Q9-50110 | 31Q9-50110 | BOOM CYLINDER ASSY-LH | |
| 31Y1-33170 | 31Y1-33170 | BOOM CYLINDER SUB | |
| 1 | 31Y1-33180 | TUBE ASSY | |
| 2 | 31Y1-33240 | ROD ASSY | |
| 3 | 31Y1-33270 | GLAND | |
| 4 | S732-105040 | BUSHING-DD2 | |
| 5 | Y191-112000 | RING-SNAP | |
| 6 | Y220-105013 | SEAL-ROD | |
| 7 | Y180-105120 | RING-BACK UP | |
| 8 | Y240-105012 | RING-BUFFER | |
| 9 | Y110-105011 | WIPER-DUST | |
| 10 | Y190-121000 | RING-SNAP | |
| 11 | S631-140004 | O-RING | |
| 12 | 31YC-BP140 | RING-BACK UP | |
| 13 | 31YC-26090 | RING-CUSHION | |
| 14 | 31Y1-33310 | PISTON | |
| 15 | Y420-150000 | SEAL-PISTON | |
| 16 | Y310-150003 | RING-WEAR | |
| 17 | Y440-150202 | RING-DUST | |
| 18 | S632-080004 | O-RING | |
| 19 | S642-080003 | RING-BACK UP | |
| 20 | 31YC-68090 | NUT-LOCK | |
| 21 | S114-100164 | SCREW-SET | |
| 22 | S632-145004 | O-RING | |
| 23 | S109-200904 | BOLT-SOCKET | |
| 24 | 31YC-15060 | BUSHING-PIN | |
| 25 | Y020-100100 | SEAL-DUST,DLI,KPU | |
| 26 | 31Y1-33340 | BAND ASSY-RH | |
| 26 | 31Y1-33330 | BAND ASSY-LH | |
| 27 | 31Y1-33380 | PIPE ASSY-R,LH | |
| 27 | 31Y1-33390 | PIPE ASSY-R,RH | |
| 28 | 31Y1-33410 | PIPE ASSY-B,RH | |
| 28 | 31Y1-33400 | PIPE ASSY-B,LH | |
| 29 | Y171-024004 | O-RING | |
| 30 | S107-120554 | BOLT-SOCKET |
