5262482
5262483
1
2
3
4
5
6
7
8
9
10
11

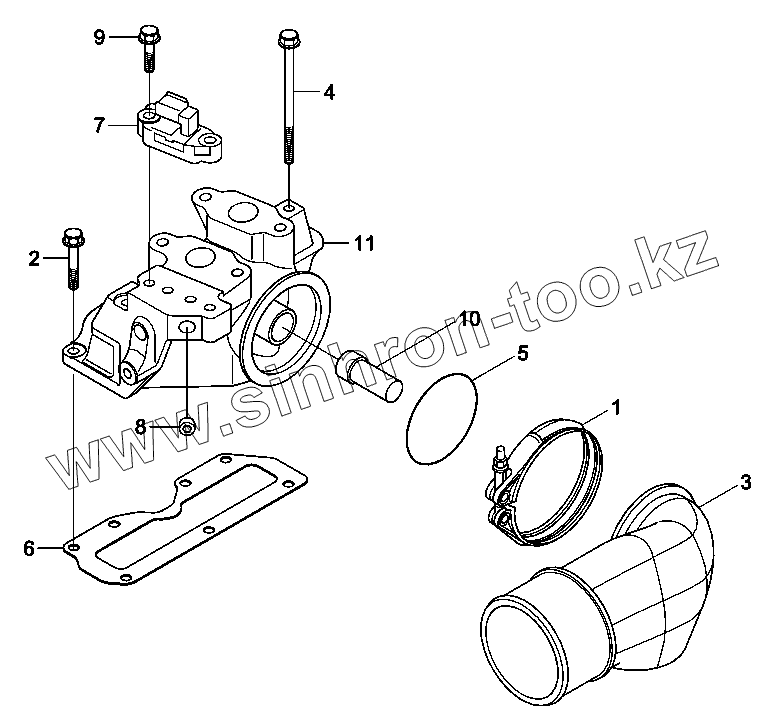

Позиция на иллюстрации
Заводской номер детали
Название детали
5262482
5262482
CONNECTION-AIR INTAKE
5262483
5262483
CONNECTION-AIR INTAKE
1
3067979
CLAMP-V BAND
2
3925402
SCREW-HEX FLANGE
3
3967749
PIPE-AIR INLET
4
3968959
SCREW-HEX F/HEAD CAP
5
4992509
SEAL/O-RING
6
4997725
GASKET-CONNECTION
7
2872210
SENSOR-PRESSURE
8
3008465
PLUG-PIPE
9
3900632
SCREW-HEX F/HEAD CAP
10
5262478
TUBE-AIR
11
5262481
CONNECTION-AIR INTAKE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
