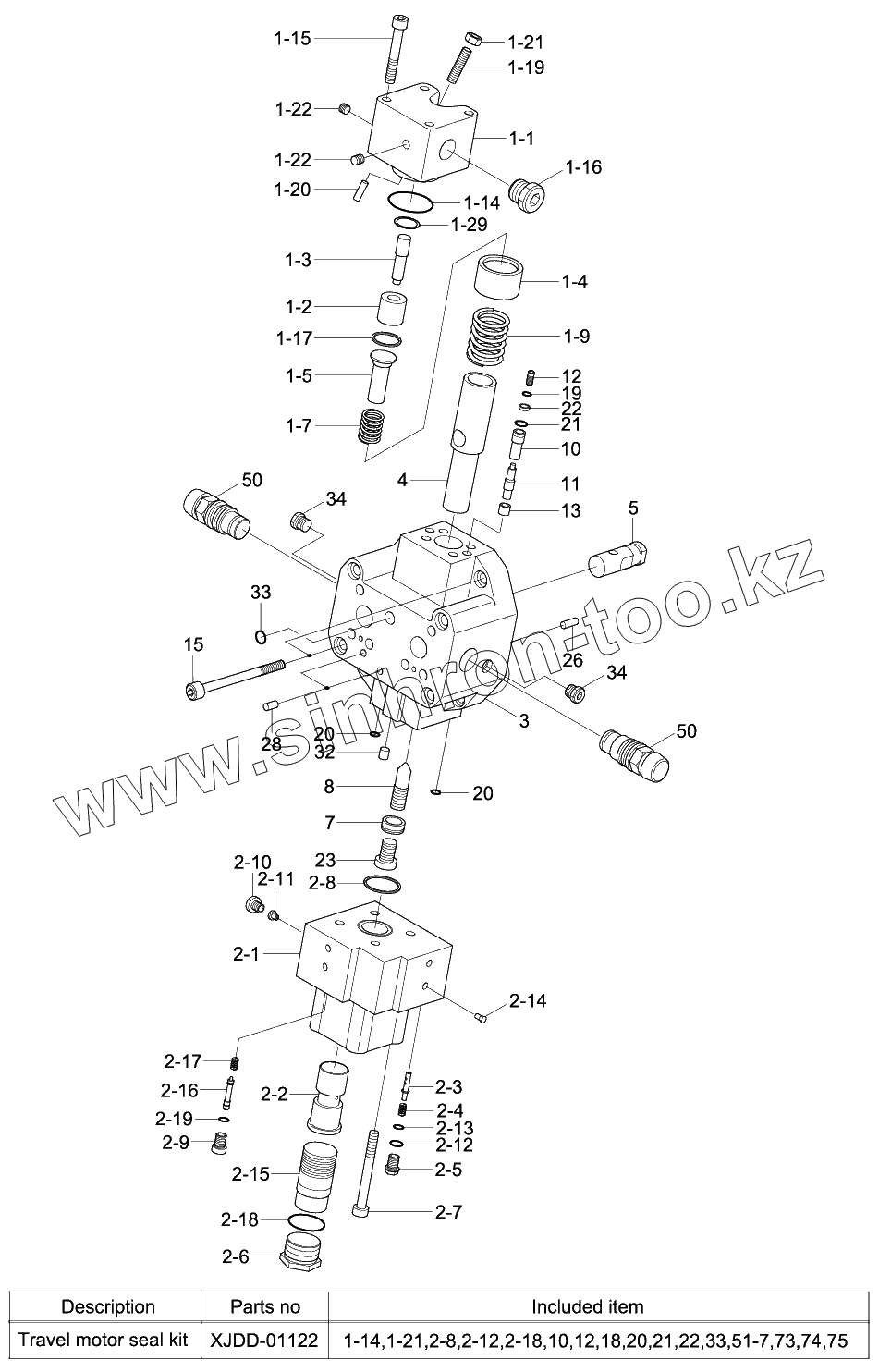

Каталог запасных частей к технике: Hyundai R210W-9. TRAVEL MOTOR (2/2, -#0417)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1-15
1-16
1-17
1-19
1-2
1-20
1-22
1-22
1-29
1-3
1-4
1-5
1-7
1-9
10
11
12
13
15
19
2-1
2-10
2-11
2-13
2-14
2-15
2-16
2-17
2-19
2-2
2-3
2-4
2-5
2-6
2-7
2-9
23
26
28
3
32
34
34
4
5
50
50
7
8
XJDD-01122
1-14
1-21
2-12
2-18
2-8
20
20
21
22
33
1-1
Позиция на иллюстрации Заводской номер детали Название детали
XJDD-01077 XJDD-01077 CONTROL
1 XJDD-01012 Control Part
1-15 XJDD-00272 Screw-Socket Head
1-16 XJDD-00174 Screw-Locking
1-17 XJDD-00273 Ring-Retaining
1-19 XJDD-00274 Pin-Threaded
1-2 XJDD-00265 Bushing-Control
1-20 XJDD-00275 Pin-Cylinder
1-22 XJDD-00277 Pin-D/Break Off
1-29 XJDD-00278 Disc-Retaining
1-3 XJDD-01014 Piston-Control
1-4 XJDD-00267 Bushing-Adjusting
1-5 XJDD-00268 Collar-Spring
1-7 XJDD-00269 Spring-Pressure
1-9 XJDD-00270 Spring-Pressure
10 XJDD-01085 GUIDE-VALVE
11 XJDD-00253 BOLT
12 XJDD-01088 SCREW-THROTTLE
13 XJDD-00254 Bushing
15 XJDD-01089 SCREW-SOCKET HEAD
16 XJDD-00256 Screw-Socket Head
19 XJDD-00257 O-RING
2 XJDD-01079 STROKE LIMIT-HYD
2-1 XJDD-01095 HOUSING
2-10 XJDD-00175 Screw-Locking
2-11 XJDD-00286 Orifice
2-13 XJDD-01019 Shim
2-14 XJDD-00277 Pin-D/Break Off
2-15 XJDD-01020 Piston
2-16 XJDD-00972 Piston-Control
2-17 XJDD-01021 Spring-Pressure
2-19 XJDD-00975 Shim
2-2 XJDD-01096 PISTON
2-3 XJDD-00281 Piston-Control
2-4 XJDD-00338 Spring-Pressure
2-5 XJDD-00282 Screw-Locking
2-6 XJDD-01016 Screw-Locking
2-7 XJDD-01097 SCREW-SOCKET HEAD
2-9 XJDD-01018 Screw-Locking
23 XJDD-00646 SCREW-SOCKET HEAD
26 XJDD-00648 PIN-CYLINDER
28 XJDD-00178 Pin-D/Break Off
3 XJDD-01080 PLATE-PORT
32 XJDD-00181 Pin-D/Break Off
34 XJDD-00210 Screw-Locking
4 XJDD-00652 PISTON-POSITIONING
5 XJDD-00642 TRUNNION-POSITIONING
50 XJDD-00622 Relief Valve
7 XJDD-01083 PISTON-W/PISTON RINGS
8 XJDD-00644 PIN-THREADED
XJDD-01122 XJDD-01122 SEAL KIT
1-14 XJDD-00271 O-Ring
1-21 XJDD-00276 Nut-Seal Lock
2-12 XJDD-00287 O-Ring
2-18 XJDD-00195 O-Ring
2-8 XJDD-00640 O-RING
20 XJDD-00258 O-Ring
21 XJDD-00259 O-Ring
22 XJDD-00329 Ring-Back Up
33 XJDD-00287 O-Ring
1-1 XJDD-01013 Housing-Control
4 XJDD-00652 PISTON-POSITIONING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
