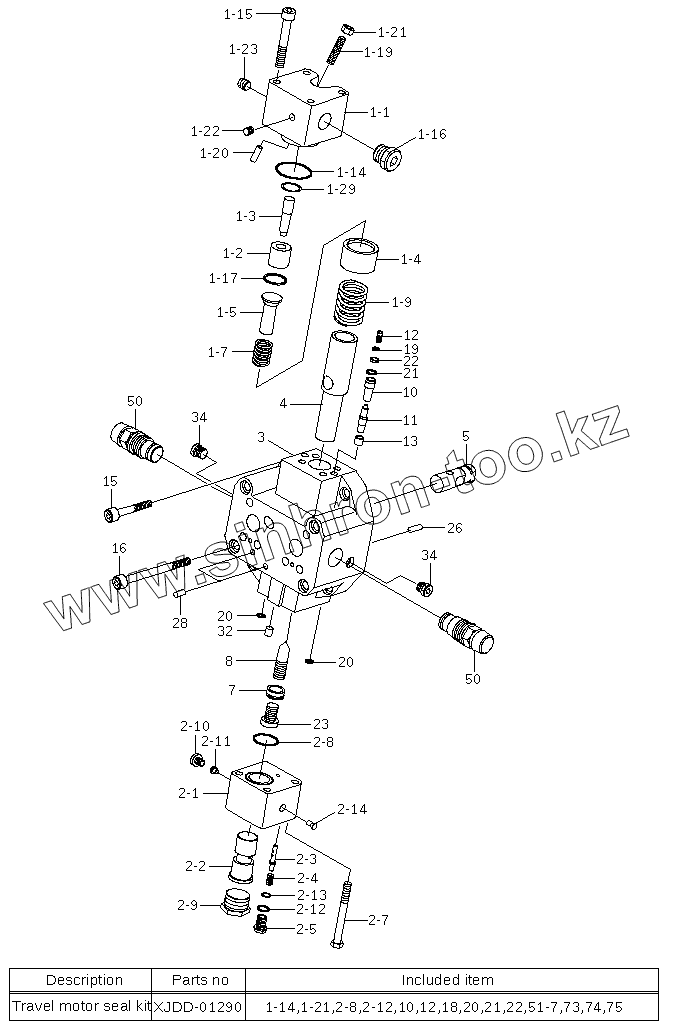

Каталог запасных частей к технике: Hyundai R210W-9. TRAVEL MOTOR (2/2, #0418-)

Тип техники

Марка

Модель

Схема

1-15

1-16

1-17

1-19

1-2

1-20

1-22

1-29

1-3

1-4

1-5

1-7

1-9

10

11

12

13

15

19

2-10

2-11

2-13

2-14

2-3

2-4

2-5

2-7

2-9

23

26

28

3

32

34

34

5

50

50

7

8

XJDD-01290

1-14

1-21

2-12

2-8

20

20

21

22

1-1

2-1

2-2

4

Позиция на иллюстрации	Заводской номер детали		Название детали
XJDD-01285	XJDD-01285		CONTROL
1	XJDD-01262		CONTROL PART
1-15	XJDD-00088		BOLT-SOCKET
1-16	XJDD-00174		Screw-Locking
1-17	XJDD-00273		Ring-Retaining
1-19	XJDD-01264		PIN-THREADED
1-2	XJDD-00265		Bushing-Control
1-20	XJDD-00275		Pin-Cylinder
1-22	XJDD-00277		Pin-D/Break Off
1-29	XJDD-00278		Disc-Retaining
1-3	XJDD-01014		Piston-Control
1-4	XJDD-00267		Bushing-Adjusting
1-5	XJDD-00268		Collar-Spring
1-7	XJDD-00269		Spring-Pressure
1-9	XJDD-00270		Spring-Pressure
10	XJDD-01085		GUIDE-VALVE
11	XJDD-00253		BOLT
12	XJDD-01088		SCREW-THROTTLE
13	XJDD-00254		Bushing
15	XJDD-00938		SCREW-SOCKET HEAD
19	XJDD-00257		O-RING
2	XJDD-01287		STROKE LIMIT-HYD
2-10	XJDD-00175		Screw-Locking
2-11	XJDD-00286		Orifice
2-13	XJDD-01019		Shim
2-14	XJDD-00277		Pin-D/Break Off
2-3	XJDD-00281		Piston-Control
2-4	XJDD-00338		Spring-Pressure
2-5	XJDD-00282		Screw-Locking
2-7	XJDD-01282		SCREW-SOCKET HEAD
2-9	XJDD-01269		SCREW-LOCKING
23	XJDD-00646		SCREW-SOCKET HEAD
26	XJDD-00648		PIN-CYLINDER
28	XJDD-00178		Pin-D/Break Off
3	XJDD-01286		PLATE-PORT
32	XJDD-00181		Pin-D/Break Off
34	XJDD-00210		Screw-Locking
5	XJDD-00642		TRUNNION-POSITIONING
50	XJDD-00622		Relief Valve
7	XJDD-01083		PISTON-W/PISTON RINGS
8	XJDD-00644		PIN-THREADED
XJDD-01290	XJDD-01290		SEAL KIT
1-14	XJDD-00271		O-Ring
1-21	XJDD-00276		Nut-Seal Lock
2-12	XJDD-00287		O-Ring
2-8	XJDD-00284		O-Ring
20	XJDD-00258		O-Ring
21	XJDD-00259		O-Ring
22	XJDD-00329		Ring-Back Up
1-1	XJDD-01263		HOUSING-CONTROL
2-1	XJDD-01288		HOUSING
2-2	XJDD-01289		PISTON
4	XJDD-00652		PISTON-POSITIONING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
