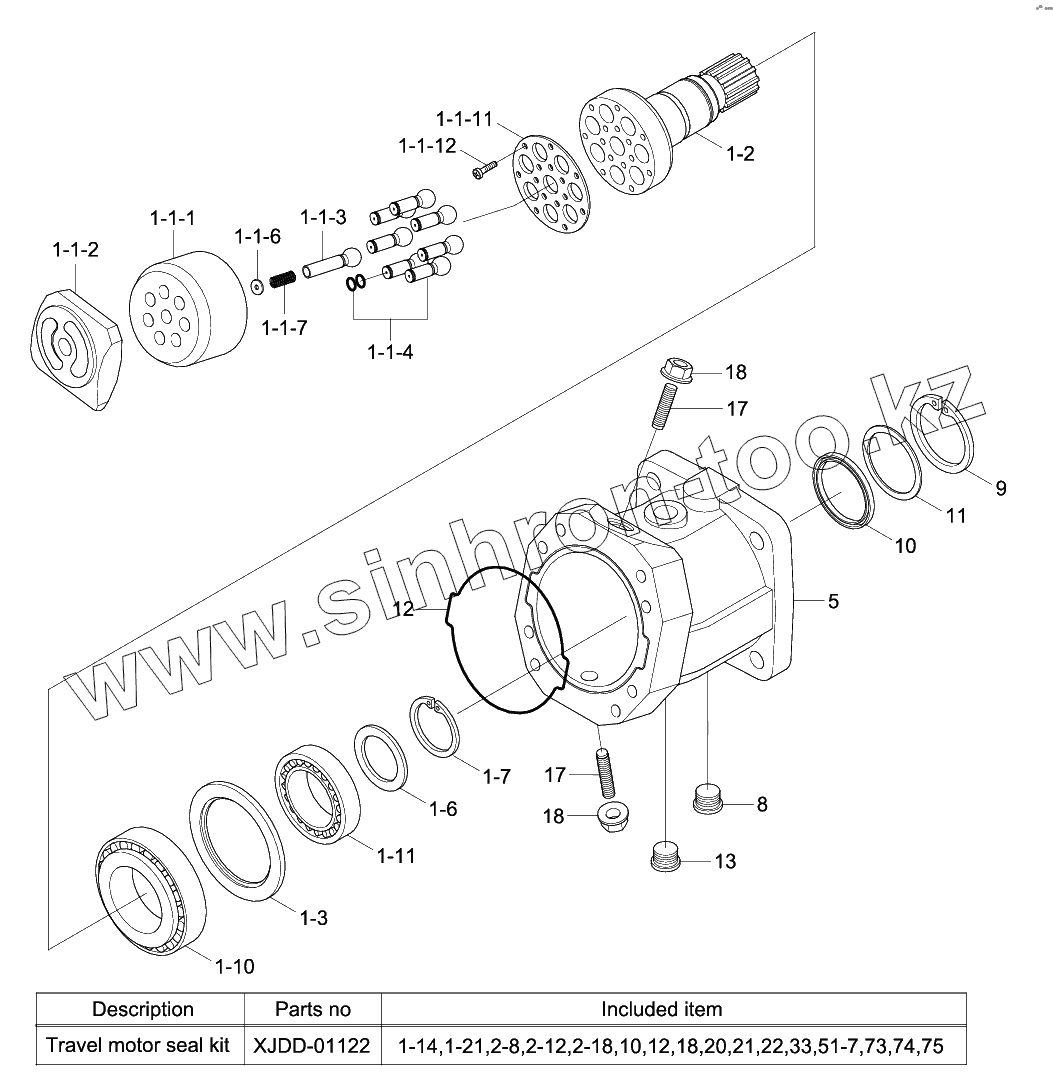

Каталог запасных частей к технике: Hyundai R210W-9. TRAVEL MOTOR (1/2)

Тип техники

Марка

Модель

Схема

1-1-1

1-1-11

1-1-12

1-1-2

1-1-3

1-1-4

1-1-6

1-1-7

1-10

1-11

1-2

1-3

1-6

1-7

11

13

17

17

5

8

9

XJDD-01122

10

12

18

18

Позиция на иллюстрации	Заводской номер детали		Название детали
31Q6-41010	31Q6-41010		TRAVEL MOTOR
XJDD-01037	XJDD-01037		MOTOR UNIT
CONTROLPART	CONTROLPART		CONTROL PART
CONTROL	CONTROL		CONTROL ASSY
COUNTERVALVE	COUNTERVALVE		COUNTER BALANCE VALVE
1	XJDD-00109		ROTARY GROUP
1-1	XJDD-00121		ROTARY-HYD SECTION
1-1-1	XJDD-00140		CYLINDER
1-1-11	XJDD-01075		PLATE-RETAINING
1-1-12	XJDD-00635		SCREW
1-1-2	XJDD-00141		CONTROL LENS
1-1-3	XJDD-00142		PIN-CENTER
1-1-3	XJDD-00232		Pin-Center
1-1-4	XJDD-00634		PISTON
1-1-4	XJDD-00233		Piston Assy
1-1-6	XJDD-00144		SHIM-ADJUSTMENT
1-1-6	XJDD-00918		Shim-Adjust
1-1-7	XJDD-00150		SPRING-PRESSURE
1-10	XJDD-00138		BEARING-ROLLER
1-11	XJDD-00139		BEARING-ROLLER
1-11	XJDD-00229		Bearing-Roller
1-2	XJDD-00122		SHAFT-DRIVE
1-3	XJDD-00125		SHIM
1-6	XJDD-00128		PLATE-BACK UP
1-6	XJDD-00136		PLATE-BACK UP
1-6	XJDD-00129		PLATE-BACK UP
1-6	XJDD-00130		PLATE-BACK UP
1-6	XJDD-00131		PLATE-BACK UP
1-6	XJDD-00132		PLATE-BACK UP
1-6	XJDD-00133		PLATE-BACK UP
1-6	XJDD-00134		PLATE-BACK UP
1-6	XJDD-00135		PLATE-BACK UP
1-7	XJDD-00137		RING-RETAINING
11	XJDD-00116		PLATE-BACK UP
11	XJDD-00213		Plate-Back Up
13	XJDD-01138		SCREW-LOCKING
13	XJDD-01010		Screw-Locking
17	XJDD-00111		Pin-Threaded
17	XJDD-00111		Pin-Threaded
5	XJDD-01086		HOUSING
5	XJDD-01009		Housing
8	XJDD-01010		Screw-Locking
8	XJDD-01010		Screw-Locking
9	XJDD-00114		RING-RETAINING
9	XJDD-00211		Ring-Retaining
XJDD-01122	XJDD-01122		SEAL KIT
XJDD-00684	XJDD-00684		Seal Kit
10	XJDD-00115		RING-SHAFT SEAL
10	XJDD-00212		Seal Ring-Shaft
12	XJDD-00117		O-RING
12	XJDD-00214		O-Ring
18	XJDD-00120		Nut-Seal Lock
18	XJDD-00120		Nut-Seal Lock

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
