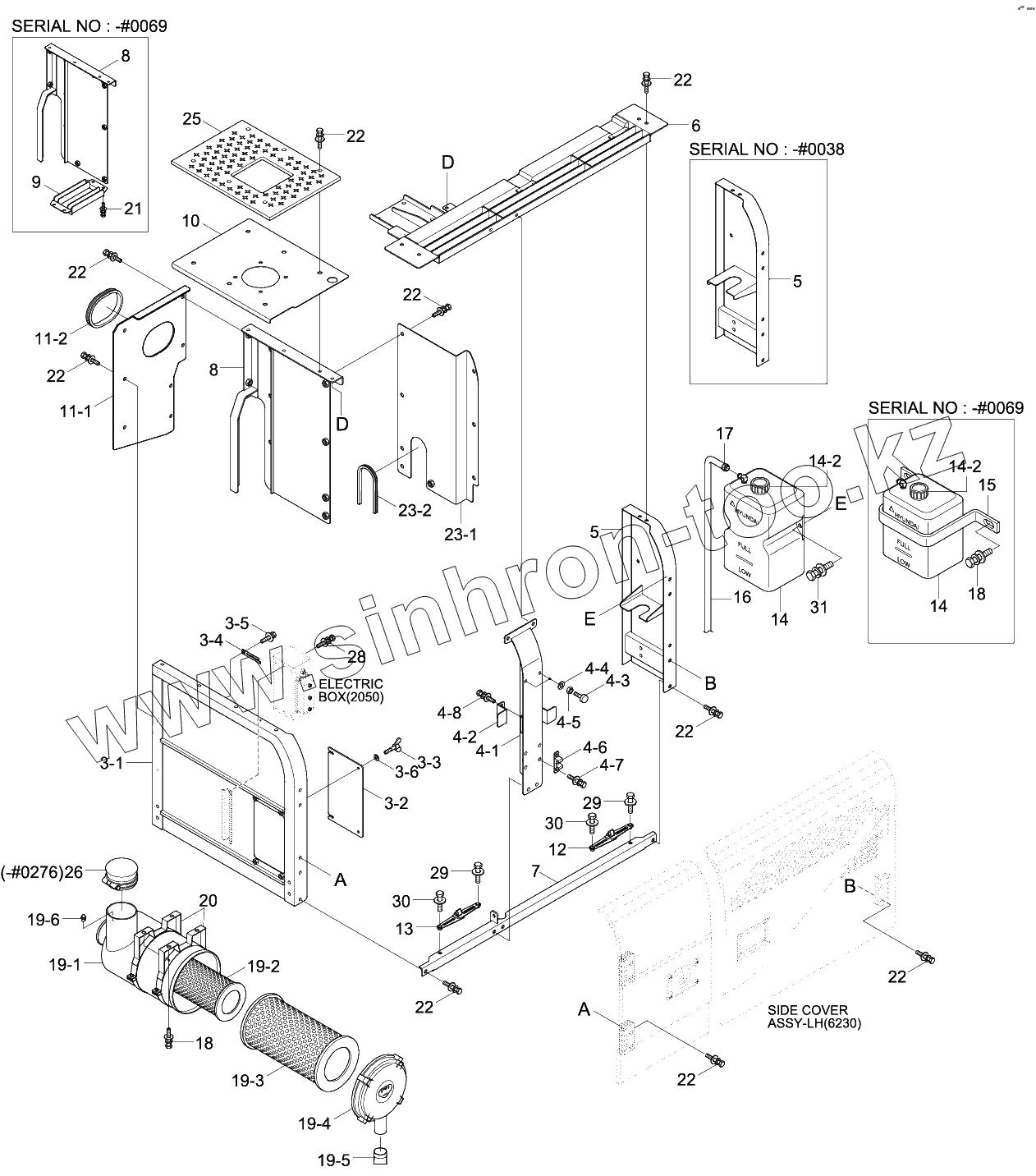

Каталог запасных частей к технике: Hyundai R210W-9. SIDE COWL ASSY (LH)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
11-1
11-2
12
13
14
14
14-2
14-2
15
16
17
18
18
19-2
19-3
19-4
19-5
19-6
20
21
22
22
22
22
22
22
22
22
22
23-1
23-2
25
26
28
29
29
3-1
3-2
3-3
3-4
3-5
3-6
30
30
31
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
5
5
6
7
8
8
9
19-1
Позиция на иллюстрации Заводской номер детали Название детали
72Q6-52003 72Q6-52003 SIDE COWL ASSY-LH
72Q6-52004 72Q6-52004 Side Cowl Assy-Lh
72Q6-52005 72Q6-52005 Side Cowl Assy-Lh
72Q6-52006 72Q6-52006 SIDE COWL ASSY-LH
79Q6-52000 79Q6-52000 SIDE COWL ASSY-LH
72Q6-52005 72Q6-52005 Side Cowl Assy-Lh
72Q6-52020 72Q6-52020 SIDE COWL ASSY-LH
72Q6-52021 72Q6-52021 Side Cowl Assy-Lh
72Q6-52022 72Q6-52022 Side Cowl Assy-Lh
72Q6-52023 72Q6-52023 SIDE COWL ASSY-LH
79Q6-52020 79Q6-52020 SIDE COWL ASSY-LH
72Q6-52021 72Q6-52021 Side Cowl Assy-Lh
72Q6-52022 72Q6-52022 Side Cowl Assy-Lh
72Q6-52003 72Q6-52003 SIDE COWL ASSY-LH
10 72Q6-56101 Hood Wa-A/Cleaner
10 72Q6-56102 HOOD WA-A/CLEANER
11 71Q6-56203 Screen-Mcv
11-1 71Q6-56213 Screen-Mcv
11-2 S791-020060 Grommet-Plate
12 71Q6-52180 STAY ASSY-LH
13 71Q6-53180 STAY ASSY-RH
14 11N8-41070 Tank-Reservoir
14 11N8-41071 TANK-RESERVOIR
14-2 MH100020 CAP-RESERVOIR TANK
15 11N8-41080 Clamp-Reservoir Tank
16 E111-2504 HOSE
17 S520-015000 CLAMP-HOSE,S/DRIVE
18 S035-082026 BOLT-W/WASHER
18 S035-082026 BOLT-W/WASHER
19 11Q6-20030 Air Cleaner Assy
19-2 11N6-27030 Element-Safety
19-3 11N6-27040 Element-Primary
19-4 11N6-27050 Cover Assy
19-5 11N6-27060 Valve-Vacuator
19-6 11N6-27070 Nipple-Sensor
20 11N6-27100 Clamp Band Wa
21 71Q6-50020 BOLT-W/WASHER
22 71Q6-50025 BOLT-W/WASHER
23 71Q6-55403 Screen
23-1 71Q6-55411 Screen
23-2 S791-020049 Grommet-Plate
25 71Q6-56500 Non Slip Plate
25 77Q6-56400 NON SLIP PLATE
26 11N6-20070 Grill
28 S037-101556 BOLT-W/WASHER
29 S037-102556 BOLT-W/WASHER
3 71Q6-52304 Support Assy
3 71Q6-52305 Support Assy
3 79Q6-52300 SUPPORT ASSY
3 71Q6-52304 Support Assy
3 71Q6-52305 Support Assy
3-1 71Q6-52315 Support Wa
3-1 71Q6-52316 Support Wa
3-1 79Q6-52310 SUPPORT WA
3-1 71Q6-52315 Support Wa
3-1 71Q6-52316 Support Wa
3-2 71Q6-52392 PLATE-SCREEN
3-2 71Q6-52392 PLATE-SCREEN
3-3 S035-082056 BOLT-W/WASHER
3-3 S091-080166 BOLT-WING
3-3 S035-082056 BOLT-W/WASHER
3-3 S091-080166 BOLT-WING
3-4 S593-000902 CLIP-HARNESS
3-4 S593-000802 CLIP-HARNESS
3-5 S037-101526 BOLT-W/WASHER
3-5 S037-101526 BOLT-W/WASHER
3-6 S403-082006 WASHER-PLAIN
3-6 S403-082006 WASHER-PLAIN
30 S037-103556 BOLT-W/WASHER
31 S035-082526 BOLT-W/WASHER
4 71Q6-52402 Support Assy
4-1 71Q6-52412 Support Wa-Lh,Mid
4-2 71Q6-53330 PLATE-LOCK
4-3 71EH-13150 BUMPER-RUBBER
4-4 S403-10200B WASHER-PLAIN
4-5 S205-10100B NUT-HEX
4-6 71Q6-53951 STOPPER-B
4-7 S035-082026 BOLT-W/WASHER
4-8 71Q6-50020 BOLT-W/WASHER
5 71Q6-52511 Support Wa-Lh,Rear
5 71Q6-52512 Support Wa-Lh,Rear
6 72Q6-52601 SUPPORT-ENG HOOD
6 72Q6-52602 Support-Eng Hood
7 71Q6-52702 Support Wa-Bottom
8 71Q6-52806 Support Wa
8 71Q6-52807 Support Wa
9 71Q6-52901 Support Wa
19-1 11N6-27020 Body Assy
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
