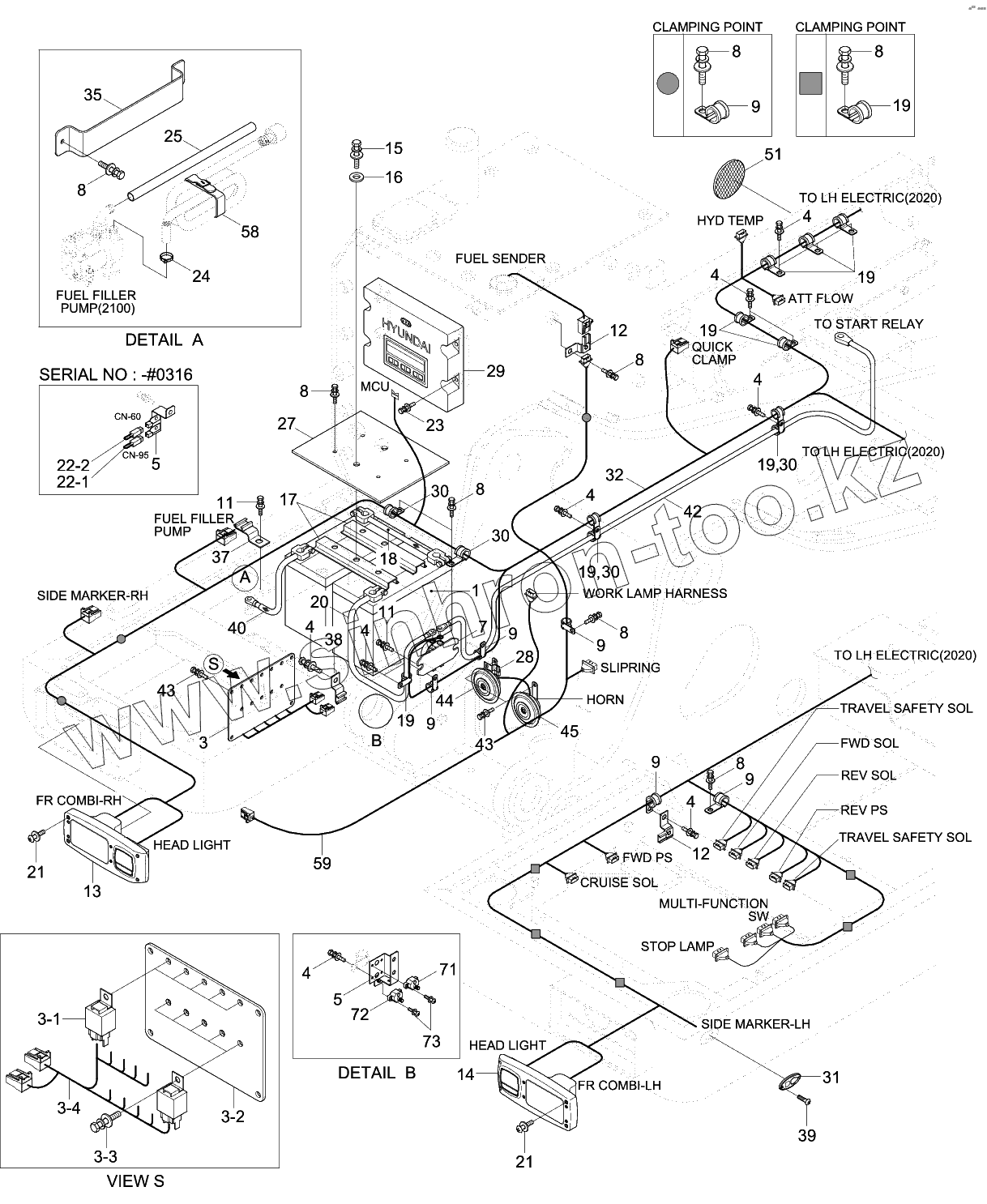

Каталог запасных частей к технике: Hyundai R210W-9. RH ELECTRIC
1
11
11
12
12
13
14
15
16
17
18
19
19
19
19
19
19
20
21
21
22-1
22-2
23
24
25
27
28
29
3
3-1
3-2
3-3
3-4
30
30
30
30
31
32
35
37
38
39
4
4
4
4
4
4
4
4
40
42
43
43
44
45
5
5
51
58
59
7
71
72
73
8
8
8
8
8
8
8
8
9
9
9
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 21E6-20270 | Battery | |
| 11 | S035-083026 | BOLT-W/WASHER | |
| 12 | 25D1-10640 | CLIP ASSY | |
| 13 | 21Q4-10360 | Lamp-Head&Position,Rh | |
| 13-1 | 21Q4-16210 | Head Lamp Unit | |
| 13-1 | 21Q4-16210 | Head Lamp Unit | |
| 13-2 | 21Q4-16230 | Case-Head Lamp | |
| 13-2 | 21Q4-16230 | Case-Head Lamp | |
| 13-3 | 21Q4-16220 | Lamp-Flasher Position | |
| 13-3 | 21Q4-16220 | Lamp-Flasher Position | |
| 14 | 21Q4-10350 | Lamp-Head&Position,Lh | |
| 14-1 | 21Q4-16210 | Head Lamp Unit | |
| 14-1 | 21Q4-16210 | Head Lamp Unit | |
| 14-2 | 21Q4-16230 | Case-Head Lamp | |
| 14-2 | 21Q4-16230 | Case-Head Lamp | |
| 14-3 | 21Q4-16220 | Lamp-Flasher Position | |
| 14-3 | 21Q4-16220 | Lamp-Flasher Position | |
| 15 | S017-102656 | Bolt-Hex | |
| 16 | S403-10500B | WASHER-PLAIN | |
| 17 | 21Q4-60400 | Bar-Battery | |
| 18 | 21N4-01400 | Cable | |
| 19 | 31L7-10200 | CLAMP-TUBE | |
| 20 | 21Q6-12400 | CABLE | |
| 21 | S131-053016 | SCREW-W/WASHER | |
| 22 | 21Q6-50105 | HARNESS-FRAME | |
| 22 | 21Q6-50106 | HARNESS-FRAME | |
| 22 | 21Q6-50107 | HARNESS-FRAME | |
| 22 | 27Q6-50100 | HARNESS-FRAME | |
| 22 | 21Q6-50108 | HARNESS-FRAME | |
| 22 | 21Q6-50109 | HARNESS-FRAME | |
| 22-1 | 21N4-01311 | Link-Fusible | |
| 22-1 | 21N4-01311 | Link-Fusible | |
| 22-2 | 21N4-01320 | Link-Fusible | |
| 22-2 | 21N4-01320 | Link-Fusible | |
| 23 | S035-082526 | BOLT-W/WASHER | |
| 23 | S035-082526 | BOLT-W/WASHER | |
| 24 | S520-032000 | CLAMP-HOSE | |
| 25 | 21Q6-21700 | HOSE-OUTLET | |
| 25 | 21Q6-21700 | HOSE-OUTLET | |
| 27 | 21Q4-60300 | Cover-Battery | |
| 27 | 21Q4-60300 | Cover-Battery | |
| 28 | 25D1-10660 | Clip Assy | |
| 28 | 25D1-10660 | Clip Assy | |
| 29 | 21Q6-32202 | MCU | |
| 29 | 21Q6-32203 | MCU | |
| 29 | 21Q6-32202 | MCU | |
| 29 | 21Q6-32203 | MCU | |
| 3 | 21Q6-20440 | Relay Board Assy | |
| 3 | 21Q6-20441 | Relay Board Assy | |
| 3 | 21Q6-20441 | Relay Board Assy | |
| 3-1 | 21E4-0011 | Relay Assy | |
| 3-1 | 22FV-24110 | Relay | |
| 3-1 | 22FV-24110 | Relay | |
| 3-2 | 21Q6-20430 | Relay Board Wa | |
| 3-3 | S132-061046 | Screw-W/Washer | |
| 3-4 | 21Q6-11161 | Harness Relay Board | |
| 3-4 | 21Q6-11160 | Harness-Relay Board | |
| 3-4 | 21Q6-11161 | Harness Relay Board | |
| 30 | 31L7-10230 | CLAMP | |
| 30 | 31L7-10230 | CLAMP | |
| 31 | 21Q4-20200 | Lamp-Side Marker | |
| 31 | 21Q4-20200 | Lamp-Side Marker | |
| 31 | 21Q4-20200 | Lamp-Side Marker | |
| 32 | 21Q6-50109 | HARNESS-FRAME | |
| 32 | 27Q6-50100 | HARNESS-FRAME | |
| 32 | 27Q7-50102 | HARNESS-FRAME | |
| 32 | 21Q6-50104 | HARNESS-FRAME | |
| 35 | 21QB-20080 | PLATE-CLAMP | |
| 35 | 21QB-20080 | PLATE-CLAMP | |
| 35 | 21QB-20080 | PLATE-CLAMP | |
| 37 | 25D1-10650 | CLIP ASSY | |
| 37 | 25D1-10650 | CLIP ASSY | |
| 37 | 25D1-10650 | CLIP ASSY | |
| 38 | 21N4-01130 | PLATE-CLIP | |
| 38 | 21N4-01130 | PLATE-CLIP | |
| 38 | 21N4-01130 | PLATE-CLIP | |
| 39 | S131-031416 | SCREW-W/WASHER | |
| 39 | S131-031416 | SCREW-W/WASHER | |
| 39 | S131-031416 | SCREW-W/WASHER | |
| 4 | S037-102026 | BOLT-W/WASHER | |
| 40 | 21EC-40320 | Cable | |
| 40 | 21EC-40320 | Cable | |
| 42 | 21N6-21210 | CABLE | |
| 42 | 21N6-21210 | CABLE | |
| 42 | 21N6-21210 | CABLE | |
| 43 | S035-081526 | BOLT-W/WASHER | |
| 43 | S035-081526 | BOLT-W/WASHER | |
| 43 | S035-081526 | BOLT-W/WASHER | |
| 44 | 21Q8-10060 | Horn-High | |
| 44 | 21N5-10061 | HORN-HIGH | |
| 44 | 21Q8-10060 | Horn-High | |
| 44 | 21N5-10061 | HORN-HIGH | |
| 44 | 21Q8-10060 | Horn-High | |
| 45 | 21Q8-10050 | Horn-Low | |
| 45 | 21N5-10051 | HORN-LOW | |
| 45 | 21Q8-10050 | Horn-Low | |
| 45 | 21N5-10051 | HORN-LOW | |
| 45 | 21Q8-10050 | Horn-Low | |
| 5 | 21N4-01130 | PLATE-CLIP | |
| 5 | 21N4-01140 | Plate-Clip | |
| 5 | 21Q6-14101 | Plate | |
| 5 | 21N4-01140 | Plate-Clip | |
| 51 | 21EK-10150 | Reflector-Side | |
| 51 | 21EK-10150 | Reflector-Side | |
| 51 | 21EK-10150 | Reflector-Side | |
| 58 | E127-3158 | BAND-FUEL PUMP | |
| 58 | E127-3158 | BAND-FUEL PUMP | |
| 58 | E127-3158 | BAND-FUEL PUMP | |
| 59 | 21Q6-11150 | Harness-Overload | |
| 59 | 21Q6-11150 | Harness-Overload | |
| 59 | 21Q8-16410 | HARNESS-OVERLOAD | |
| 59 | 21Q6-11150 | Harness-Overload | |
| 63 | 21N4-01400 | Cable | |
| 7 | 21QA-70010 | RELAY-BATTERY | |
| 7 | 21E5-0003 | Relay-Battery | |
| 7 | 21QA-70010 | RELAY-BATTERY | |
| 7 | 21E5-0003 | Relay-Battery | |
| 71 | 21M9-01171 | Circuit-Breaker | |
| 72 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 73 | S131-042046 | SCREW-W/WASHER | |
| 8 | S037-101526 | BOLT-W/WASHER | |
| 8 | S037-101526 | BOLT-W/WASHER | |
| 9 | 31L7-10190 | CLAMP-TUBE | |
| 9 | 31L7-10190 | CLAMP-TUBE | |
| 90 | 21Q6-50410 | Adapter | |
| 90 | 21Q6-50410 | Adapter | |
| 90 | 21Q6-50410 | Adapter | |
| 91 | S141-040206 | Screw-Flat Hd | |
| 92 | 21Q6-32601 | MCU | |
| 93 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 94 | 21M9-01171 | Circuit-Breaker |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
