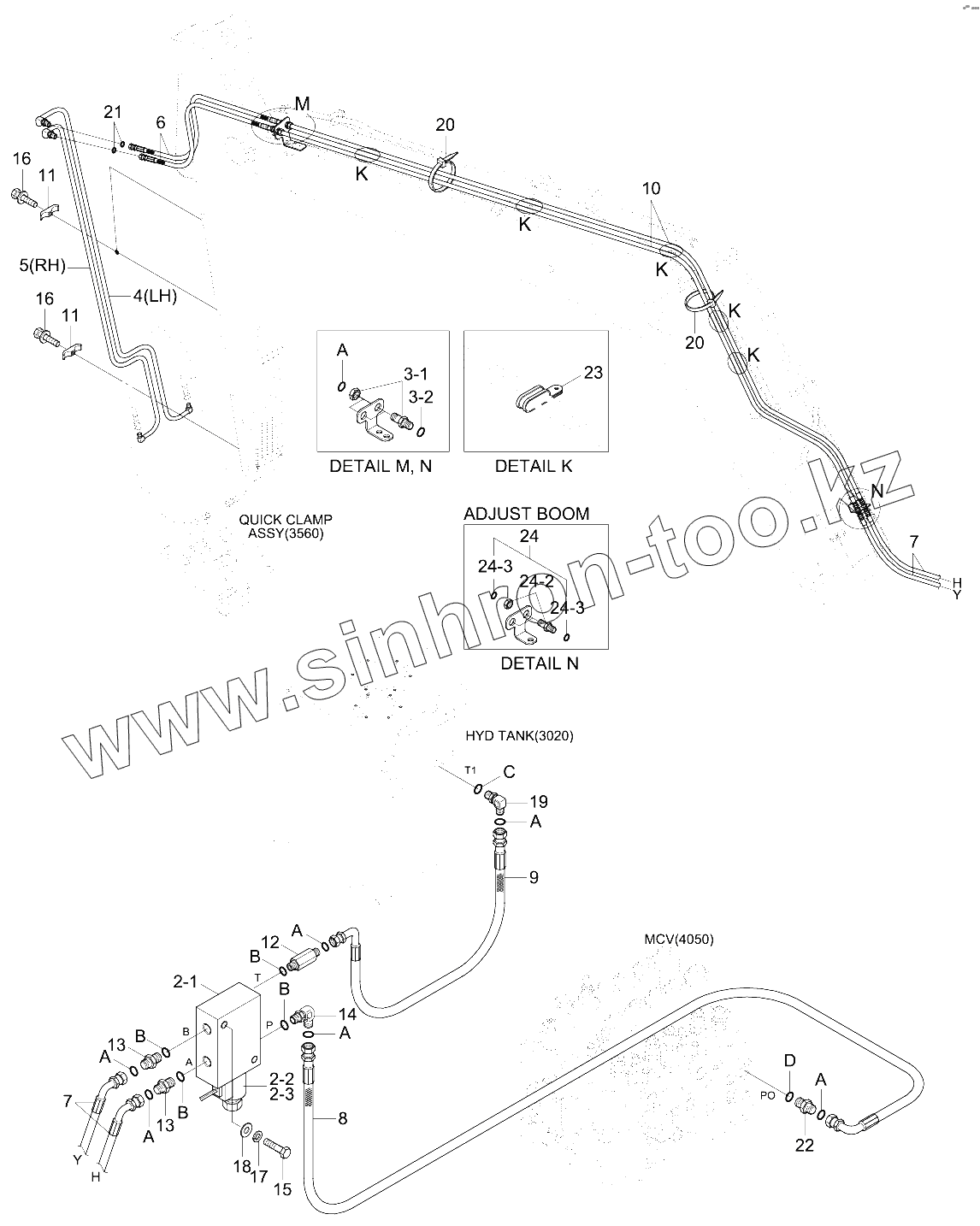

Каталог запасных частей к технике: Hyundai R210W-9. QUICK CLAMP HYD PIPING

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
11
11
12
13
13
14
15
16
16
17
18
19
2-1
2-2
2-3
20
20
21
22
23
24
24-2
24-3
24-3
3-1
3-2
4
5
6
7
7
8
9
A
A
A
A
A
A
A
B
B
B
B
C
D
Позиция на иллюстрации Заводской номер детали Название детали
10 P910-048121 Hose Assy-Orfs 0x0
10 P910-048119 Hose Assy-Orfs 0x0
10 P910-048114 HOSE ASSY-ORFS 0X0
10 P910-048099 HOSE ASSY-ORFS 0X0
10 P910-048121 Hose Assy-Orfs 0x0
11 34EA-91811 CLAMP-PIPE
11 34EA-91811 CLAMP-PIPE
12 X511-104512 CONNECTOR-LONG,ORFS
12 X511-104512 CONNECTOR-LONG,ORFS
13 X500-110001 CONNECTOR-ORFS
13 X500-110001 CONNECTOR-ORFS
14 X520-110001 ELBOW-90,ORFS
14 X520-110001 ELBOW-90,ORFS
15 S017-100556 BOLT-HEX
15 S017-100556 BOLT-HEX
16 S037-103026 BOLT-W/WASHER
16 S037-103026 BOLT-W/WASHER
17 S411-100006 WASHER-SPRING
17 S411-100006 WASHER-SPRING
18 S403-10200B WASHER-PLAIN
18 S403-10200B WASHER-PLAIN
19 X520-110012 ELBOW-90,ORFS
19 X520-110012 ELBOW-90,ORFS
2 31Q6-91720 SOLENOID VALVE-Q/CLAMP
2-1 B-34EA-91720 MANIFOLD
2-1 B-34EA-91720 MANIFOLD
2-2 GS044200NC VALVE-SOLENOID
2-2 GS044200NC VALVE-SOLENOID
2-3 LTC0627VMD/DT COIL
2-3 LTC0627VMD/DT COIL
20 S554-054300 CLAMP-BAND
20 S554-054300 CLAMP-BAND
21 S621-011001 O-RING
21 S621-011001 O-RING
22 31NB-20140 CONNECTOR-ORFS
22 31NB-20140 CONNECTOR-ORFS
23 31L7-10200 CLAMP-TUBE
23 31L7-10200 CLAMP-TUBE
24 31NB-95820 TERMAINAL-Q/CLAMP
24-2 X540-120001 CONNECTOR-ORFS
24-3 S621-011001 O-RING
3 31N8-95770 TERMINAL-Q/CLAMP
3-1 X540-120001 CONNECTOR-ORFS
3-1 X540-120001 CONNECTOR-ORFS
3-2 S621-011001 O-RING
3-2 S621-011001 O-RING
4 31Q6-91520 Pipe Wa
4 31Q6-91700 Pipe Wa
4 31Q6-91520 Pipe Wa
4 31Q6-91700 Pipe Wa
5 31Q6-91530 Pipe Wa
5 31Q6-91710 Pipe Wa
5 31Q6-91530 Pipe Wa
5 31Q6-91710 Pipe Wa
6 P915-048033 Hose Assy-Orfs 0x0
6 P915-048030 Hose Assy-Orfs,Thd 0x0
6 P915-048022 Hose Assy-Orfs,Thd 0x0
6 P913-048033 HOSE ASSY-ORFS 0X0
6 P915-048033 Hose Assy-Orfs 0x0
6 P913-048030 HOSE ASSY-ORFS 0X0
6 P915-048030 Hose Assy-Orfs,Thd 0x0
6 P913-048022 HOSE ASSY-ORFS 0X0
6 P915-048022 Hose Assy-Orfs,Thd 0x0
7 P920-048037 Hose Assy-Orfs 0x45
7 P920-048033 HOSE ASSY-ORFS 0X45
7 P920-048057 HOSE ASSY-ORFS 0X45
7 P920-048037 Hose Assy-Orfs 0x45
7 P920-048033 HOSE ASSY-ORFS 0X45
8 P930-048018 Hose Assy-Orfs 0x90
8 P930-048018 Hose Assy-Orfs 0x90
9 P930-042010 Hose Assy-Orfs 0x90
9 P930-042010 Hose Assy-Orfs 0x90
A S621-011001 O-RING
A S621-011001 O-RING
B S631-011004 O-RING
B S631-011004 O-RING
C S631-014004 O-RING
C S631-014004 O-RING
D S631-024004 O-RING
D S631-024004 O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
