  5. PILOT HYD PIPING (BASE 1, -#0024)

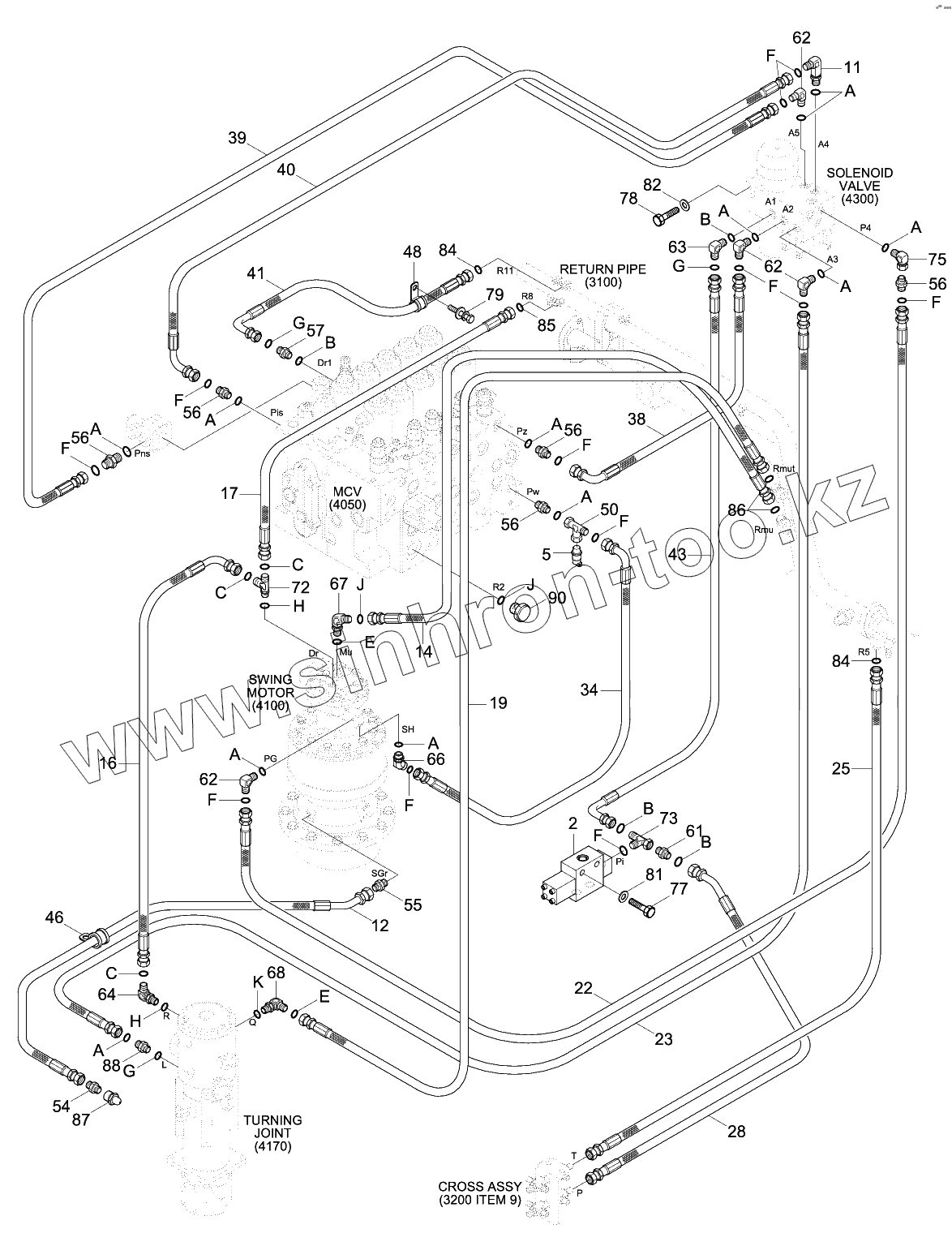

Каталог запасных частей к технике: Hyundai R210W-9. PILOT HYD PIPING (BASE 1, -#0024)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
11
12
14
16
17
19
2
22
23
25
28
34
38
39
40
41
43
46
48
5
50
54
55
56
56
56
56
56
57
61
62
62
62
63
64
66
67
68
72
73
75
77
78
79
81
82
84
84
85
86
87
88
90
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
C
C
C
E
E
F
F
F
F
F
F
F
F
F
F
G
G
G
H
H
J
J
Позиция на иллюстрации Заводской номер детали Название детали
11 31N6-25110 ELBOW-90,LONG
12 P850-042022 Hose Assy-Syn 0x45
14 P910-162018 Hose Assy-Orfs 0x0
16 P930-082013 HOSE ASSY-ORFS 0X90
17 P910-082018 Hose Assy-Orfs 0x0
19 P930-162014 Hose Assy-Orfs 0x90
2 31Q6-20150 Select Valve
22 X400-042048 Hose Assy-Synf Orfs
23 X400-042058 Hose Assy-Synf Orfs
25 X400-062025 HOSE ASSY-SYNF,ORFS
28 X410-062032 HOSE ASSY-ORFS 0X45
34 X420-042018 Hose Assy-Orfs 0x90
38 X420-042041 Hose Assy-Orfs 0x90
39 X420-042043 Hose Assy-Orfs 0x90
40 X420-042047 Hose Assy-Orfs 0x90
41 X420-062006 Hose Assy-Orfs 0x90
43 X420-062031 Hose Assy-Orfs 0x90
46 31L7-10190 CLAMP-TUBE
48 31L7-10240 CLAMP-TUBE INS
5 31Q8-40520 Sensor-Pressure
50 31N6-66080 TEE-BRENCH TEST
54 31W5-70060 CONNECTOR
55 P010-430002 CONNECTOR
56 X500-110001 CONNECTOR-ORFS
57 X500-110002 CONNECTOR-ORFS
60 X500-110005 CONNECTOR-ORFS
61 X500-110011 CONNECTOR-ORFS
62 X520-110001 ELBOW-90,ORFS
63 X520-110002 ELBOW-90,ORFS
64 X520-110003 ELBOW-90,ORFS
66 X530-110001 ELBOW-45,ORFS
67 X530-110005 ELBOW-45,ORFS
68 X530-110020 ELBOW-45,ORFS
72 X820-085353 Tee-R/Type, Orfs
73 X830-525252 TEE-B/TYPE,SWIVEL,ORFS
75 X850-515100 ELBOW-90 SWIVEL,ORFS
77 S015-080506 BOLT-HEX
78 S017-101156 BOLT-HEX
79 S037-102026 BOLT-W/WASHER
81 S403-08200B WASHER-PLAIN
82 S441-10000B WASHER-HARDENED
84 S621-012001 O-RING
85 S621-014001 O-RING
86 S621-021001 O-RING
87 S653-810002 NIPPLE-GREASE
88 X500-110013 CONNECTOR-ORFS
90 P220-110106 PLUG-HEX
A S621-011001 O-RING
B S621-012001 O-RING
C S621-014001 O-RING
E S621-021001 O-RING
F S631-011004 O-RING
G S631-014004 O-RING
H S631-018004 O-RING
J S631-024004 O-RING
S631-038004 S631-038004 O-RING
