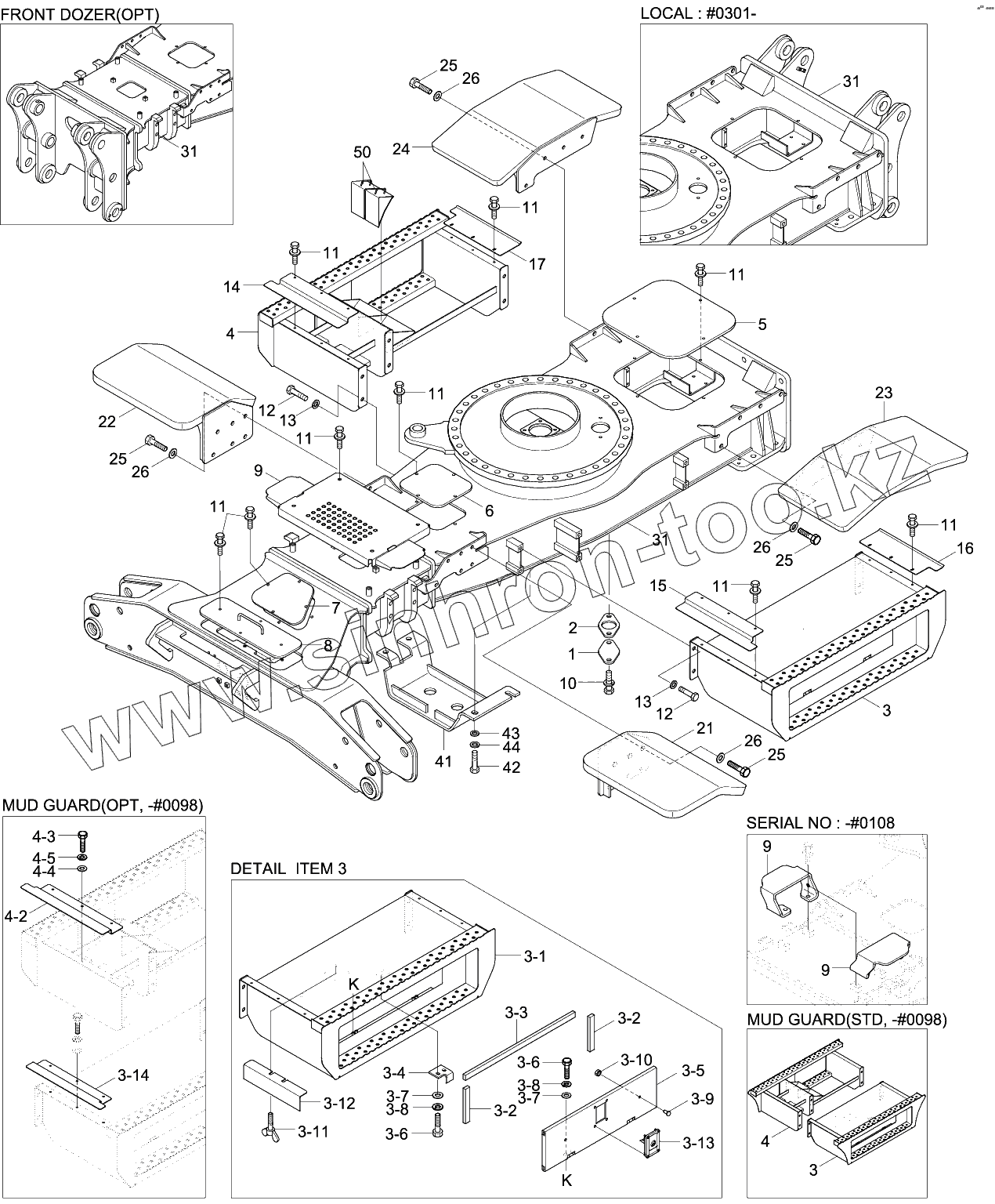

Каталог запасных частей к технике: Hyundai R210W-9. LOWER FRAME & FENDER
1
10
11
11
11
11
11
11
11
11
12
12
13
13
14
15
16
17
2
21
22
23
24
25
25
25
25
26
26
26
26
3
3
3-1
3-10
3-11
3-12
3-13
3-14
3-2
3-2
3-3
3-4
3-5
3-6
3-6
3-7
3-7
3-8
3-8
3-9
31
31
31
4
4
4-2
4-3
4-4
4-5
41
42
43
44
5
50
6
7
8
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 41N6-10100 | COVER | |
| 10 | S037-102556 | BOLT-W/WASHER | |
| 10 | S037-102556 | BOLT-W/WASHER | |
| 11 | S037-122556 | BOLT-W/WASHER | |
| 11 | S037-122556 | BOLT-W/WASHER | |
| 11 | S037-122556 | BOLT-W/WASHER | |
| 11 | S037-122556 | BOLT-W/WASHER | |
| 11 | S037-122556 | BOLT-W/WASHER | |
| 12 | S017-20040D | Bolt-Hex | |
| 12 | S017-20040D | Bolt-Hex | |
| 13 | S441-200006 | WASHER-HARDENED | |
| 13 | S441-200006 | WASHER-HARDENED | |
| 14 | 51Q6-32370 | PLATE | |
| 15 | 51Q6-32380 | PLATE | |
| 16 | 51Q6-32390 | PLATE | |
| 17 | 51Q6-32400 | PLATE | |
| 2 | 41E9-1306 | SEAL | |
| 2 | 41E9-1306 | SEAL | |
| 21 | 51Q4-40018 | FENDER WA-FRONT,LH | |
| 21 | 51Q6-40015 | FENDER WA-FRONT,LH | |
| 22 | 51Q4-40028 | FENDER WA-FRONT,RH | |
| 22 | 51Q6-40025 | FENDER WA-FRONT,RH | |
| 23 | 51Q4-40713 | Fender Wa-Rear,Lh | |
| 23 | 51Q6-40710 | FENDER WA-REAR,LH | |
| 24 | 51Q4-40723 | Fender Wa-Rear,Rh | |
| 24 | 51Q6-40720 | FENDER WA-REAR,RH | |
| 25 | S017-16035D | Bolt-Hex | |
| 25 | S017-16035D | Bolt-Hex | |
| 25 | S017-16025D | Bolt-Hex | |
| 26 | S441-160006 | WASHER-HARDENED | |
| 26 | S441-160006 | WASHER-HARDENED | |
| 26 | S441-160006 | WASHER-HARDENED | |
| 3 | 51Q6-32001 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32002 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32003 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32001 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32002 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-31001 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32001 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32002 | FOOT BOARD ASSY-LH | |
| 3 | 51Q6-32003 | FOOT BOARD ASSY-LH | |
| 3-1 | 51Q6-32011 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32012 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32013 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32011 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32012 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-31011 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-31011 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32011 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32012 | FOOT BOARD WA-LH | |
| 3-1 | 51Q6-32013 | FOOT BOARD WA-LH | |
| 3-10 | S205-06200B | Nut-Hex | |
| 3-10 | S205-06200B | Nut-Hex | |
| 3-11 | S091-100166 | Bolt-Wing | |
| 3-12 | 51Q6-32360 | BRACKET | |
| 3-12 | 51Q6-32360 | BRACKET | |
| 3-13 | 71Q6-52190GG | Latch Assy | |
| 3-14 | 51Q6-32370 | PLATE | |
| 3-14 | 51Q6-32370 | PLATE | |
| 3-2 | 51Q4-31210 | Pad-Rubber | |
| 3-3 | 51Q6-32200 | Pad-Rubber | |
| 3-3 | 51Q6-32200 | Pad-Rubber | |
| 3-4 | 51Q4-31231 | Bracket | |
| 3-5 | 51Q6-32310 | Door Wa-Side | |
| 3-5 | 51Q6-32310 | Door Wa-Side | |
| 3-6 | S403-08500B | Washer-Plain | |
| 3-6 | S403-08500B | Washer-Plain | |
| 3-6 | S403-08500B | Washer-Plain | |
| 3-6 | S403-08500B | Washer-Plain | |
| 3-6 | S403-08500B | Washer-Plain | |
| 3-6 | S403-08500B | Washer-Plain | |
| 3-7 | S411-080006 | WASHER-SPRING | |
| 3-7 | S411-080006 | WASHER-SPRING | |
| 3-7 | S411-080006 | WASHER-SPRING | |
| 3-7 | S411-080006 | WASHER-SPRING | |
| 3-7 | S411-080006 | WASHER-SPRING | |
| 3-7 | S411-080006 | WASHER-SPRING | |
| 3-8 | S015-080206 | Bolt-Hex | |
| 3-8 | S015-080206 | Bolt-Hex | |
| 3-8 | S015-080206 | Bolt-Hex | |
| 3-8 | S015-080206 | Bolt-Hex | |
| 3-8 | S015-080206 | Bolt-Hex | |
| 3-8 | S015-080206 | Bolt-Hex | |
| 3-9 | 51Q4-31350 | Stopper-Rubber | |
| 31 | 51Q6-07014 | LOWER FRAME WA | |
| 31 | 51Q6-08012 | LOWER FRAME WA | |
| 31 | 51Q6-07013 | LOWER FRAME WA | |
| 31 | 51Q6-07014 | LOWER FRAME WA | |
| 31 | 51Q6-08011 | LOWER FRAME WA | |
| 31 | 51Q6-08012 | LOWER FRAME WA | |
| 31 | 52Q6-07010 | LOWER FRAME WA | |
| 31 | 51Q6-07013 | LOWER FRAME WA | |
| 31 | 51Q6-08011 | LOWER FRAME WA | |
| 31 | 51Q6-07012 | LOWER FRAME WA | |
| 4 | 51Q6-34011 | FOOT BOARD WA-RH | |
| 4 | 51Q6-34000 | FOOT BOARD ASSY-RH | |
| 4 | 51Q6-34103 | FOOT BOARD WA-RH | |
| 4 | 51Q6-33011 | FOOT BOARD WA-RH | |
| 4 | 51Q6-34011 | FOOT BOARD WA-RH | |
| 4 | 51Q6-34000 | FOOT BOARD ASSY-RH | |
| 4 | 51Q6-34103 | FOOT BOARD WA-RH | |
| 4 | 51Q6-34000 | FOOT BOARD ASSY-RH | |
| 4 | 51Q6-33011 | FOOT BOARD WA-RH | |
| 4 | 51Q6-34011 | FOOT BOARD WA-RH | |
| 4-1 | 51Q6-34012 | FOOT BOARD WA-RH | |
| 4-2 | 51Q6-32380 | PLATE | |
| 4-2 | 51Q6-32380 | PLATE | |
| 4-2 | 51Q6-32380 | PLATE | |
| 4-3 | S015-080206 | Bolt-Hex | |
| 4-3 | S015-080206 | Bolt-Hex | |
| 4-3 | S015-080206 | Bolt-Hex | |
| 4-4 | S403-08500B | Washer-Plain | |
| 4-4 | S403-08500B | Washer-Plain | |
| 4-4 | S403-08500B | Washer-Plain | |
| 4-5 | S411-080006 | WASHER-SPRING | |
| 4-5 | S411-080006 | WASHER-SPRING | |
| 4-5 | S411-080006 | WASHER-SPRING | |
| 41 | 81Q6-40150 | GUARD WA-T/MISSION | |
| 41 | 81Q6-40150 | GUARD WA-T/MISSION | |
| 42 | S017-16030D | Bolt-Hex | |
| 42 | S017-16030D | Bolt-Hex | |
| 43 | S441-160006 | WASHER-HARDENED | |
| 43 | S441-160006 | WASHER-HARDENED | |
| 44 | S411-160006 | WASHER-SPRING | |
| 44 | S411-160006 | WASHER-SPRING | |
| 5 | 51N6-33100GG | COVER-REAR | |
| 5 | 51N6-33100GG | COVER-REAR | |
| 50 | 81Q4-10580 | Wheel Chock | |
| 6 | 51N6-33110GG | COVER-FRONT | |
| 6 | 51N6-33110GG | COVER-FRONT | |
| 7 | 51N6-33120GG | COVER-OUTRIGGER | |
| 7 | 51N6-33120GG | COVER-OUTRIGGER | |
| 8 | 51N6-33131GG | COVER-OUTRIGGER | |
| 8 | 51Q6-35130 | COVER-OUTRIGGER | |
| 8 | 51N6-33131GG | COVER-OUTRIGGER | |
| 8 | 51Q6-35130 | COVER-OUTRIGGER | |
| 9 | 51EK-21011GG | COVER-O/CYLINDER | |
| 9 | 51Q6-30150 | COVER WA-FRONT | |
| 9 | 51EK-21011GG | COVER-O/CYLINDER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
