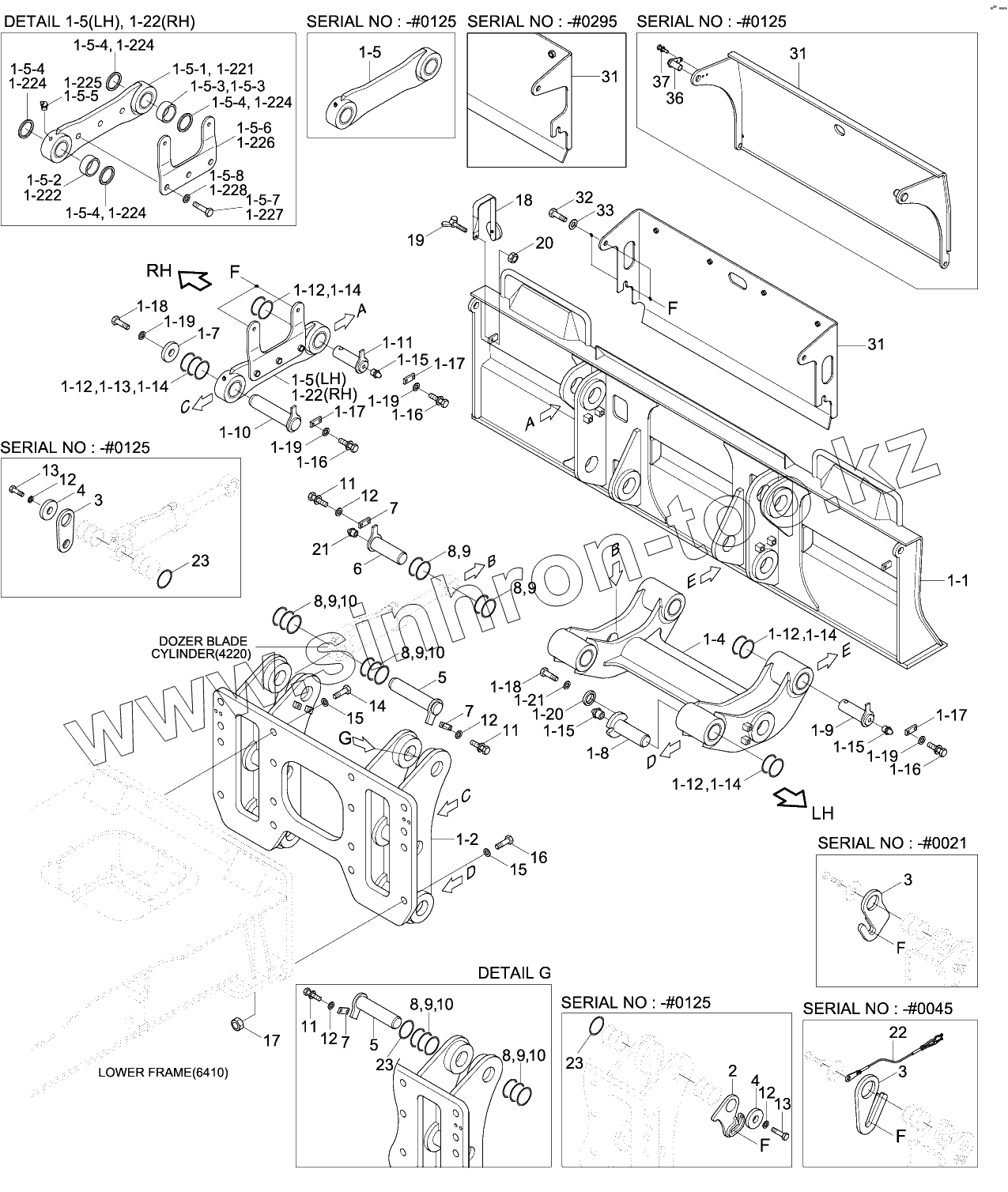

Каталог запасных частей к технике: Hyundai R210W-9. DOZER BLADE-REAR
1-1
1-10
1-11
1-12
1-12
1-12
1-12
1-13
1-14
1-14
1-14
1-14
1-15
1-15
1-15
1-16
1-16
1-16
1-17
1-17
1-17
1-18
1-18
1-19
1-19
1-19
1-19
1-2
1-20
1-21
1-22
1-22
1-221
1-222
1-224
1-224
1-224
1-224
1-225
1-226
1-227
1-228
1-4
1-5
1-5
1-5
1-5-1
1-5-2
1-5-3
1-5-3
1-5-4
1-5-4
1-5-4
1-5-4
1-5-5
1-5-6
1-5-7
1-5-8
1-7
1-8
1-9
10
10
10
10
11
11
11
12
12
12
12
12
13
13
14
15
15
16
17
18
19
2
20
21
22
23
23
23
3
3
3
31
31
31
32
33
36
37
4
4
5
5
6
7
7
7
8
8
8
8
8
8
9
9
9
9
9
9
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 51Q6-51001 | DOZER BLADE ASSY-RR | |
| 1 | 51Q6-51002 | BLADE ASSY | |
| 1-1 | 51Q6-51010 | BLADE WA | |
| 1-1 | 51Q6-51011 | BLADE WA | |
| 1-10 | 51ER-30731GG | PIN-BLADE | |
| 1-11 | 51ER-30721GG | PIN-BLADE | |
| 1-11 | 51Q6-30720 | PIN-BLADE | |
| 1-12 | S390-070120 | Shim-Round | |
| 1-13 | S391-070120 | Shim-Round | |
| 1-14 | S392-070120 | Shim-Round | |
| 1-15 | S651-810002 | NIPPLE-GREASE | |
| 1-16 | S017-120256 | Bolt-Hex | |
| 1-17 | 51EK-52560GG | PLATE-LOCK | |
| 1-18 | S017-120406 | Bolt-Hex | |
| 1-19 | S441-12000B | WASHER-HARDENED | |
| 1-2 | 51Q6-30200 | BRACKET WA | |
| 1-20 | 51N6-30800GG | SPACER | |
| 1-21 | 61N8-00330-DA | WASHER-HARDENED | |
| 1-22 | 51Q6-51422 | LINK ASSY-RH | |
| 1-221 | 51Q6-51432 | LINK WA | |
| 1-222 | 51ER-30620 | BUSHING | |
| 1-223 | 51ER-30630 | BUSHING | |
| 1-224 | S700-070206 | Seal-Dust | |
| 1-225 | S652-810002 | Nipple-Grease | |
| 1-226 | 51Q6-51480 | PLATE-LH | |
| 1-226 | 51Q6-51490 | PLATE-RH | |
| 1-227 | S017-160606 | BOLT-HEX | |
| 1-228 | S441-160006 | WASHER-HARDENED | |
| 1-4 | 51N6-30313GG | LINK ASSY-BLADE | |
| 1-5 | 51Q6-51410 | LINK ASSY | |
| 1-5 | 51Q6-51411 | LINK ASSY | |
| 1-5 | 51Q6-51412 | LINK ASSY-LH | |
| 1-5-1 | 51Q6-51430 | LINK WA | |
| 1-5-1 | 51Q6-51431 | LINK WA | |
| 1-5-1 | 51Q6-51432 | LINK WA | |
| 1-5-2 | 51ER-30620 | BUSHING | |
| 1-5-3 | 51ER-30630 | BUSHING | |
| 1-5-4 | S700-070206 | Seal-Dust | |
| 1-5-5 | S652-810002 | Nipple-Grease | |
| 1-5-6 | 51Q6-51480 | PLATE-LH | |
| 1-5-6 | 51Q6-51490 | PLATE-RH | |
| 1-5-7 | S017-160606 | BOLT-HEX | |
| 1-5-8 | S441-160006 | WASHER-HARDENED | |
| 1-7 | 51ER-30550GG | WASHER-LOCK | |
| 1-8 | 51ER-30711GG | PIN-BLADE | |
| 1-8 | 51Q6-30710 | PIN-BLADE | |
| 1-9 | 51ER-30761GG | PIN-BLADE | |
| 10 | S392-070120 | Shim-Round | |
| 11 | S017-120256 | Bolt-Hex | |
| 12 | S441-12000B | WASHER-HARDENED | |
| 12 | S441-12000B | WASHER-HARDENED | |
| 13 | S017-120406 | Bolt-Hex | |
| 14 | S018-30060D | BOLT-HEX | |
| 15 | S441-300006 | WASHER-HARDENED | |
| 16 | 51ER-30810-DA | BOLT-DOZER | |
| 17 | S206-30100B | NUT-HEX | |
| 18 | 51N6-30500GG | REFLECTOR ASSY | |
| 19 | S091-100306 | Bolt-Wing | |
| 2 | 51Q6-51530 | PLATE WA | |
| 20 | S261-10000B | Nut-Wing | |
| 21 | S651-810002 | NIPPLE-GREASE | |
| 21 | S651-810002 | NIPPLE-GREASE | |
| 22 | 51Q4-50350 | Wire Assy-Steel | |
| 23 | S392-070110 | SHIM-ROUND | |
| 3 | 51Q6-51560 | PLATE WA | |
| 3 | 51Q6-51561 | PLATE WA-PIVOT | |
| 3 | 51Q6-51450 | PLATE WA-PIVOT | |
| 31 | 51Q6-55000 | BLADE COVER WA-REAR | |
| 31 | 51Q6-55003 | COVER WA-BLADE | |
| 31 | 51Q6-55004 | COVER WA-BLADE | |
| 31 | 51Q6-55005 | COVER WA-BLADE | |
| 32 | 51N4-51282 | Bolt-Cover Mtg | |
| 32 | 51N4-51282 | Bolt-Cover Mtg | |
| 32 | S017-160456 | Bolt-Hex | |
| 33 | S411-200006 | Washer-Spring | |
| 33 | S411-200006 | Washer-Spring | |
| 33 | S441-160006 | WASHER-HARDENED | |
| 34 | 51N4-52570 | Pin-Clevis | |
| 36 | 51Q4-51550 | Plate Wa | |
| 37 | S037-122556 | BOLT-W/WASHER | |
| 4 | 51Q6-51601 | WASHER-LOCK | |
| 5 | 51Q6-51700 | PIN-CYLINDER HEAD | |
| 5 | 51Q6-56100 | PIN-CYLINDER HEAD | |
| 6 | 51N6-30751GG | PIN-B/CYL ROD | |
| 7 | 51EK-52560GG | PLATE-LOCK | |
| 8 | S390-070120 | Shim-Round | |
| 9 | S391-070120 | Shim-Round |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
