  5. DOUBLE ACTING MAIN PIPING KIT 2

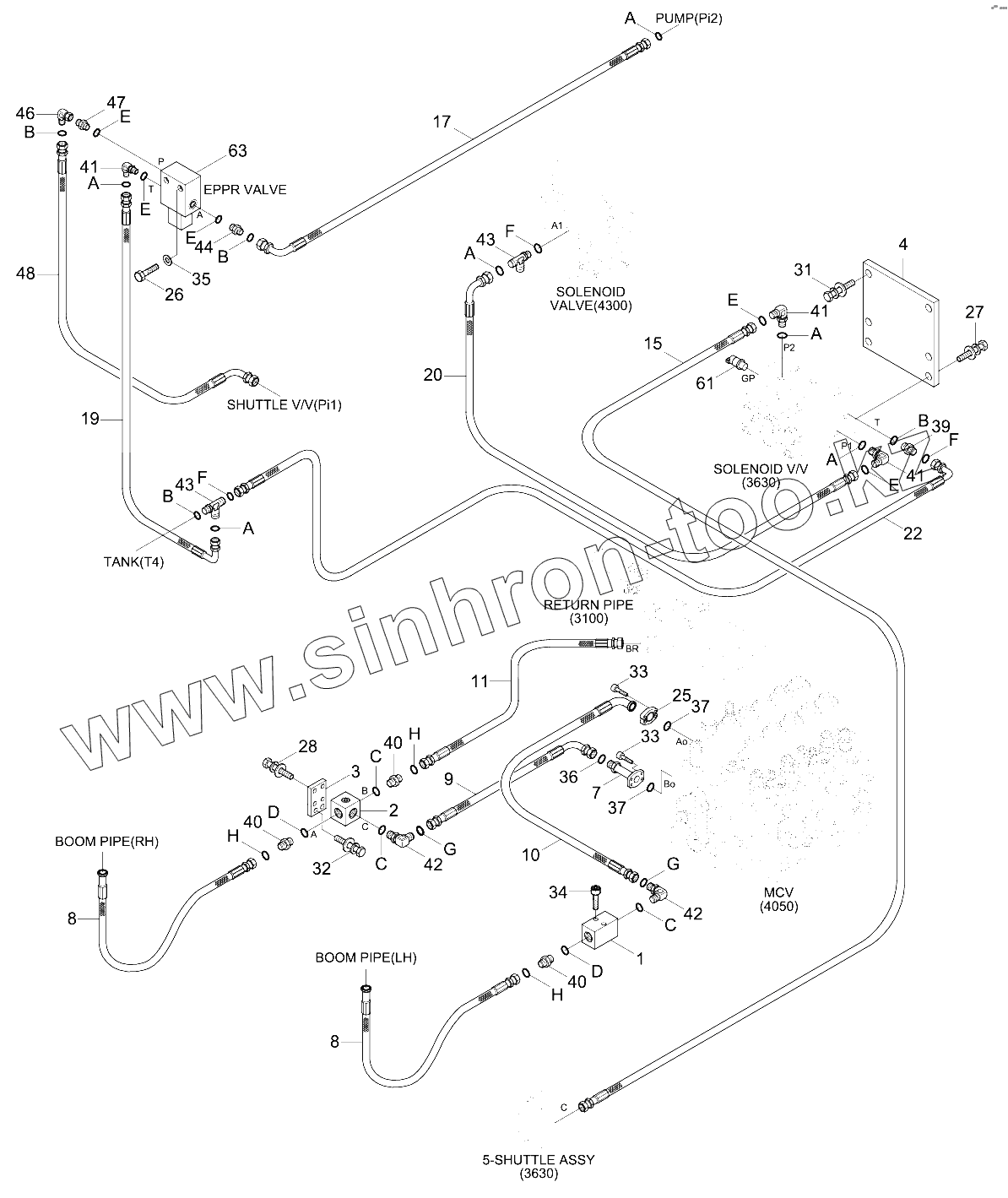

Каталог запасных частей к технике: Hyundai R210W-9. DOUBLE ACTING MAIN PIPING KIT 2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
10
11
15
17
19
2
20
22
25
26
27
28
3
31
32
33
33
34
35
36
37
37
39
4
40
40
40
41
41
41
42
42
43
43
44
46
47
48
61
63
7
8
8
9
A
A
A
A
A
A
B
B
B
B
C
C
C
D
D
E
E
E
E
E
F
F
F
G
G
H
H
H
Позиция на иллюстрации Заводской номер детали Название детали
D/ACTHYDPIPINGKIT D/ACTHYDPIPINGKIT D/ACT HYD PIPING KIT
D/ACTPIPINGKIT D/ACTPIPINGKIT D/ACT PIPING KIT
D/ACTMAINPIPINGKIT D/ACTMAINPIPINGKIT D/ACT MAIN PIPING KIT
ATTACHPIPINGKIT ATTACHPIPINGKIT ATTACH PIPING KIT
1 31EM-91540 JOINT ASSY-HOSE
10 32Q6-90470 Hose Assy
11 P913-163022 Hose Assy-Orfs 0x0
15 P910-042060 HOSE ASSY-ORFS 0X0
17 P930-062010 Hose Assy-Orfs 0x90
17 P930-062011 Hose Assy-Orfs 0x90
19 P930-042017 Hose Assy-Orfs 0x90
2 31EM-91620 JOINT-3 WAY
20 P930-042028 HOSE ASSY-ORFS 0X90
22 P930-062038 Hose Assy-Orfs 0x90
25 P173-160104 FLANGE-HYD,SPLIT
26 S015-060506 Bolt-Hex
27 S035-082026 BOLT-W/WASHER
28 S035-083026 BOLT-W/WASHER
3 31E9-95010 BRACKET-3 WAY JOINT
31 S037-122526 BOLT-W/WASHER
32 S037-123526 BOLT-W/WASHER
33 S109-100306 BOLT-SOCKET
34 S109-120656 BOLT-SOCKET
35 S403-06200B WASHER-PLAIN
36 S621-021001 O-RING
37 Y171-024004 O-RING
39 X500-110002 CONNECTOR-ORFS
4 31Q6-90450 BRACKET-SOL VALVE
40 X500-110021 CONNECTOR-ORFS
41 X520-110001 ELBOW-90,ORFS
42 X520-110005 ELBOW-90,ORFS
43 X820-065251 TEE-R/TYPE,ORFS
44 X500-110011 CONNECTOR-ORFS
46 X850-525200 ELBOW-90,SWIVEL,ORFS
47 31N6-25070 FILTER-LAST GUARD
48 P930-062044 HOSE ASSY-ORFS 0X90
61 31Q8-40520 Sensor-Pressure
61 31Q4-40620 SENSOR-PRESSURE
63 31Q9-20130 Eppr Valve
7 32Q6-90491 Pipe Wa
8 31Q6-90480 Hose Assy
8 31Q6-90481 HOSE ASSY
9 P933-166016 Hose Assy-Orfs 0x90
A S621-011001 O-RING
B S621-012001 O-RING
C S621-021001 O-RING
D S621-025001 O-RING
E S631-011004 O-RING
F S631-014004 O-RING
G S631-029004 O-RING
H S631-038004 O-RING
