Каталог запасных частей к технике: Hyundai R210W-9. DECALS

Тип техники

Марка

Модель

Схема

1-1

1-10

1-11

1-12

1-2

1-3

1-4

1-5

1-6

1-7

1-8

1-9

2-1

2-10

2-11

2-12

2-13

2-14

2-15

2-16

2-18

2-2

2-23

2-24

2-25

2-26

2-27

2-28

2-29

2-3

2-30

2-31

2-32

2-33

2-34

2-35

2-36

2-4

2-5

2-6

2-7

2-8

2-9

20-1

20-2

20-3

20-4

20-5

20-6

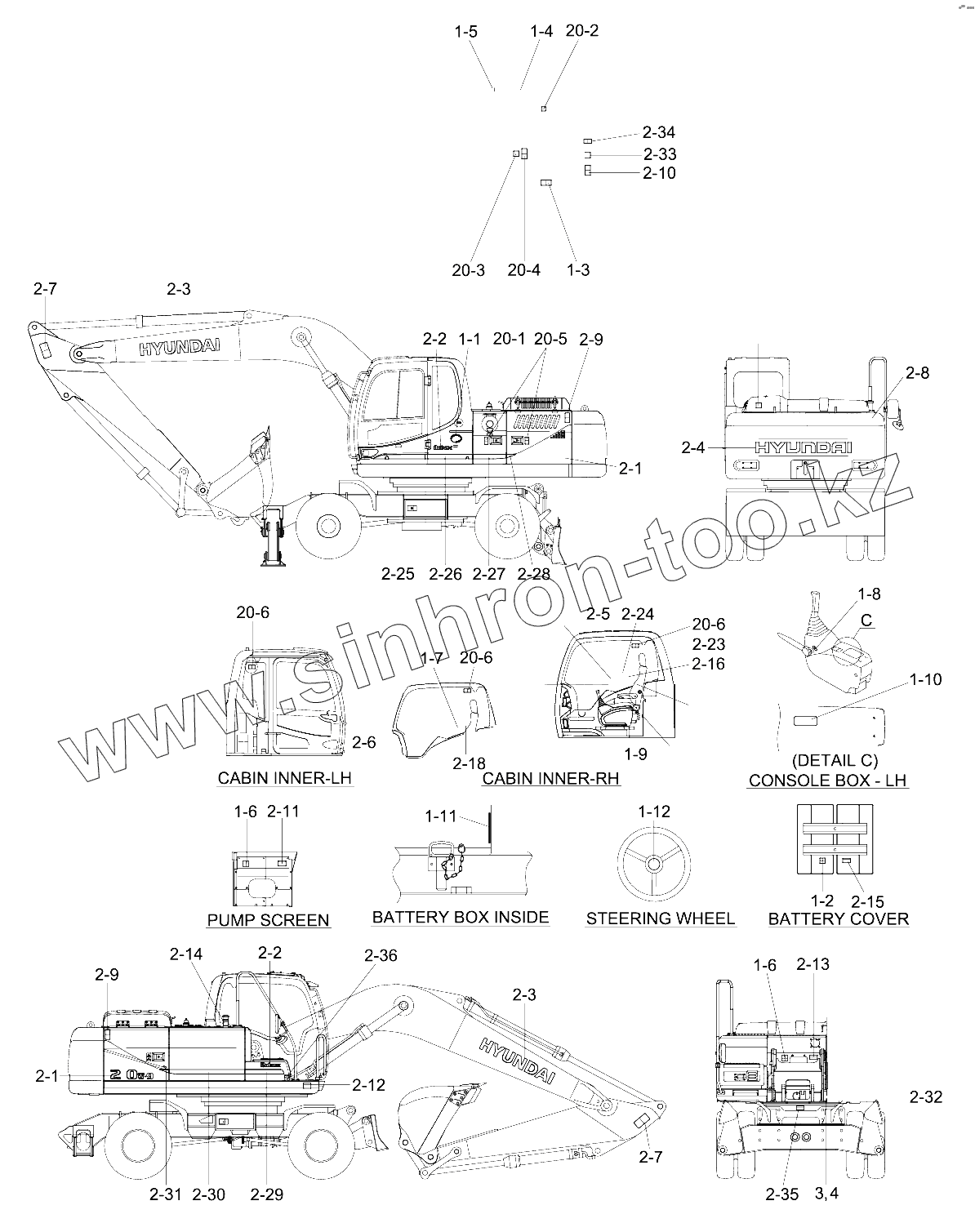

Позиция на иллюстрации	Заводской номер детали	Название детали
1	91Q4-00200	Decal Kit
1-1	91E1-27110	DECAL-L/EMISSION ENG
1-10	91N6-07340	Decal-Ideogram
1-10	92N6-07360	Decal-Ideogram
1-10	92N6-07431	Decal-Ideogram
1-11	92N6-07410	Decal-Swing Ideogram
1-12	92N6-07420	Decal-Steering Wheel
1-14	92N6-07510	Decal-Console Box Tilt
1-2	91N6-02120	DECAL-BATT ACCIDENT
1-3	91N6-01121	DECAL-RADIATOR CAP
1-4	91N6-03140	DECAL-FALLING
1-5	91N6-03111	DECAL-HYD OIL LUBRICAT
1-6	91N6-03130	DECAL-H/PRESS HOSE
1-7	92N6-07200	Decal-Cntl Ideogram
1-7	92N6-08200	Decal-Cntl Ideogram
1-7	92N6-07500	Decal-Cntl Ideogram
1-7	92N6-08500	Decal-Cntl Ideogram
1-8	92N6-07310	DECAL-SAFETY LEVER
1-9	91N6-07272	DECAL-AIRCON FILTER
2	92Q6-10103	DECAL KIT
2	92Q6-10104	DECAL KIT
2	92Q6-10105	DECAL KIT
2	92Q6-10106	DECAL KIT
2	92Q6-10108	DECAL KIT
2	92Q6-10110	DECAL KIT
2	92Q6-10111	DECAL KIT
2	92Q6-10112	DECAL KIT
2	92Q6-10113	DECAL KIT
2	92Q6-10114	DECAL KIT
2	92Q6-10115	DECAL KIT
2	92Q6-10104	DECAL KIT
2	92Q6-10105	DECAL KIT
2	92Q6-10106	DECAL KIT
2	92Q6-10108	DECAL KIT
2	92Q6-10110	DECAL KIT
2-1	9AQ6-77740	DECAL-MODEL NAME
2-1	9AQ6-77741	DECAL-MODEL NAME
2-1	9AQ6-77742	DECAL- MODEL NAME
2-10	91N6-04132	DECAL-LIFTING EYE
2-11	92N6-03100	Decal-Hyd Oil Level
2-12	92N6-07140	Decal-Transporting
2-13	91N6-03121	DECAL-R/GEAR GREASE
2-14	91M8-01140	DECAL-FUELING
2-15	91LB-01350	DECAL-ELECTRIC WELDING
2-16	91Q6-07330	DECAL-LOCKING CLAMP
2-17	91N6-07390	Decal-Turbocharger
2-18	91Q6-07371	DECAL-CABIN RH PILLAR
2-18	91Q4-07370	Decal-Cabin Rh Pillar
2-18	91Q4-07370	Decal-Cabin Rh Pillar
2-19	91Q6-03210	DECAL-RCV L/PATTERN
2-2	91Q6-17112	DECAL-ROBEX LOGO
2-22	91N6-03200	DECAL-ACCUMULATOR
2-23	92Q6-07350	Decal-Swing Lock
2-24	92N4-28010	DECAL-AXLE CAUTION
2-25	91Q6-07510	DECAL-BAND,CAB FR
2-26	91Q6-07520	DECAL-BAND,CAB RR
2-27	91Q6-07530	Decal-Band,Lh Front
2-28	91Q6-07540	Decal-Band,Lh Rear
2-29	91Q4-07610	Decal-Band,Tool Box
2-3	91N6-23140	Decal-Hyundai Logo
2-30	91Q6-07620	Decal-Band,Tank
2-31	91Q6-07630	Decal-Band,Rh
2-32	91N6-22130	DECAL-NOISE LWA/103DB
2-32	91N6-22110	Decal-Noise Level/Lwa
2-32	91N6-22120	Decal-Noise Level/Lwa
2-32	91N6-22110	Decal-Noise Level/Lwa
2-32	91N6-22120	Decal-Noise Level/Lwa
2-33	91N6-07131	DECAL-NO STEP
2-34	91N6-03140	DECAL-FALLING
2-35	91Q6-03220	Decal-Swing Bearing
2-36	91M9-02110	DECAL-BATTERY POSITION
2-37	91Q4-07020	Decal-Reflecting
2-37	91Q4-07020	Decal-Reflecting
2-38	91N6-07400	DECAL-M/CNTL CAB
2-38	91N6-07400	DECAL-M/CNTL CAB
2-39	91N6-07410	DECAL-M/CNTL PATTERN
2-39	91N6-07410	DECAL-M/CNTL PATTERN
2-4	91N6-26160	Decal-Hyundai Logo
2-40	91Q4-02200	DECAL-BEACON LAMP
2-40	91Q4-02200	DECAL-BEACON LAMP
2-41	91Q6-03230	DECAL-FUEL SHUT OFF
2-41	91Q6-03230	DECAL-FUEL SHUT OFF
2-42	91Q4-07180	Decal-Water Separator
2-42	91Q4-07180	Decal-Water Separator
2-44	91Q6-01281	Decal-Rops Cabin
2-44	91Q6-01281	Decal-Rops Cabin
2-45	91N6-07280	Decal-Hammer
2-45	91Q6-07280	DECAL-HAMMER
2-45	91N6-07280	Decal-Hammer
2-46	91Q4-07920	DECAL-CAUTION(W/S,T/C)
2-46	91Q4-07920	DECAL-CAUTION(W/S,T/C)
2-47	91Q6-07260	DECAL-SAFETY RR WIN
2-5	92Q6-02310	DECAL-LIFTING CHART
2-5	92Q6-02311	DECAL-LIFTING CHART
2-5	92Q6-02110	DECAL-LIFTING CHART
2-5	92Q6-02111	DECAL-LIFTING CHART
2-5	92Q6-02210	DECAL-LIFTING CHART
2-5	92Q6-02211	DECAL-LIFTING CHART
2-5	92Q6-02311	DECAL-LIFTING CHART
2-5	92Q6-02110	DECAL-LIFTING CHART
2-5	92Q6-02111	DECAL-LIFTING CHART
2-5	92Q6-02211	DECAL-LIFTING CHART
2-6	92Q6-10710	DECAL-SER INSTRUCTION
2-6	92Q6-10711	DECAL-SER INSTRUCTION
2-6	92Q6-10712	DECAL-SERVICE INSTRUCTION
2-6	92Q6-10714	DECAL-SER INSTRUCTION
2-6	92Q6-10715	DECAL-SER INSTRUCTION
2-6	92Q6-10716	DECAL-SERVICE INSTRUCTION
2-6	92Q6-10712	DECAL-SERVICE INSTRUCTION
2-7	91N6-06110	Decal-Keep Clear-Att
2-8	91Q6-07010	DECAL-KEEP CLEAR,RR
2-9	91Q6-07021	DECAL-KEEP CLEAR,SIDE
20	91Q6-00092	Decal Kit-A/S
20	91Q6-00093	Decal Kit-A/S
20	91Q6-00096	DECAL KIT-A/S
20-1	91N6-01102	DECAL-A/CLEANER FILTER
20-2	91N6-01111	DECAL-TURBO COVER
20-3	91N6-07121	DECAL-SHEARING
20-4	91N6-07131	DECAL-NO STEP
20-5	91N6-07112	DECAL-STAY FIX
20-6	91Q6-07250	DECAL-SAFETY FR WIN
20-7	91N6-07261	Decal-Alternate Exit
20-8	91N6-07280	Decal-Hammer
3	91LM-14110	PIN PLATE
3	91E1-14110	Decal-Pin Plate
3	91LM-14110	PIN PLATE
3	91E1-14110	Decal-Pin Plate
3	91E1-14130	Pin Plate
3	91LM-14130	PIN PLATE
4	91EK-12010	RIVET
6	91N6-01280	FOPS FOG PLATE
7	91EK-12010	RIVET

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
