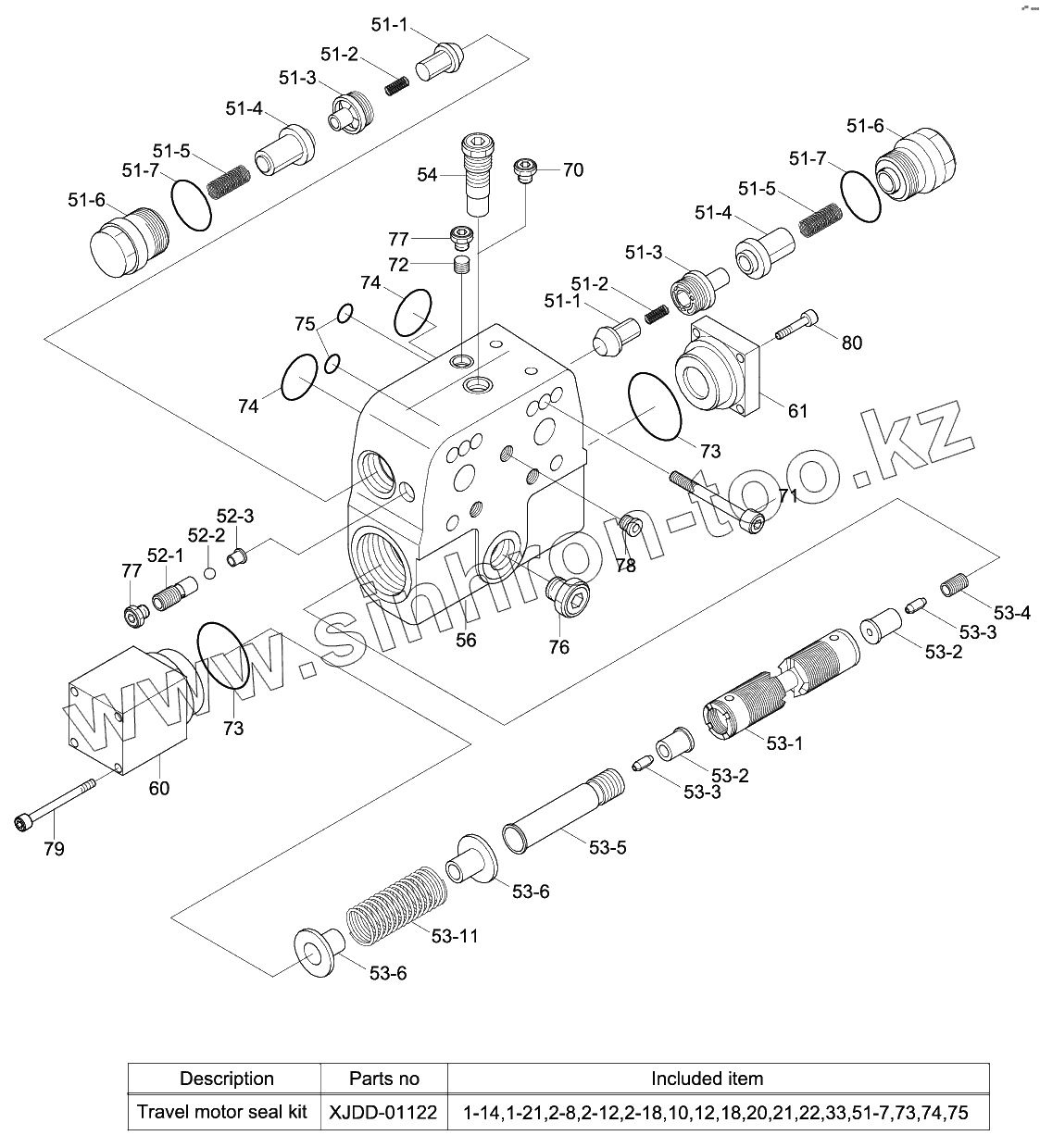

Каталог запасных частей к технике: Hyundai R210W-9. COUNTER BALANCE VALVE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
51-1
51-1
51-2
51-2
51-3
51-3
51-4
51-4
51-5
51-5
51-6
51-6
52-1
52-2
52-3
53-1
53-11
53-2
53-2
53-4
53-5
53-6
53-6
56
60
61
70
71
72
76
77
77
78
79
80
XJDD-01122
51-7
51-7
73
73
74
74
75
53-3
53-3
Позиция на иллюстрации Заводской номер детали Название детали
XJDD-01038 XJDD-01038 COUNTER BALANCE VLV
51 XJDD-00654 VALVE
51-1 XJDD-00655 POPPET-VALVE
51-2 XJDD-00449 SPRING-PRESSURE
51-3 XJDD-00657 SEAT-POPPET
51-4 XJDD-00451 POPPET-VALVE
51-5 XJDD-00452 SPRING-PRESSURE
51-6 XJDD-00660 SCREW-LOCKING
52 XJDD-00298 Valve-Shuttle
52-1 XJDD-00169 Screw-Valve
52-2 XJDD-00995 BALL
52-3 XJDD-00170 Bushing
53 XJDD-01101 PISTON-BRAKE
53-1 XJDD-01118 PISTON-BRAKE
53-11 XJDD-00465 SPRING-PRESSURE
53-2 XJDD-00318 Bushing-Valve
53-4 XJDD-00632 Screw-Valve
53-5 XJDD-00633 BOLT
53-6 XJDD-00665 COLLAR-SPRING
56 XJDD-00667 HOUSING
60 XJDD-00668 COVER
61 XJDD-00669 COVER
70 XJDD-00303 Screw-Locking
71 XJDD-01105 SCREW-SOCKET HEAD
72 XJDD-00305 Plug
76 XJDD-00180 SCREW-LOCKING
77 XJDD-00309 Screw-Locking
78 XJDD-00277 Pin-D/Break Off
79 XJDD-01108 SCREW-SOCKET HEAD
80 XJDD-00938 SCREW-SOCKET HEAD
XJDD-01122 XJDD-01122 SEAL KIT
51-7 XJDD-00661 O-RING
73 XJDD-00671 O-RING
74 XJDD-00640 O-RING
75 XJDD-00307 O-Ring
53-3 XJDD-00999 Pin-Throttle
53-3 XJDD-01168 PIN-THROTTLE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
