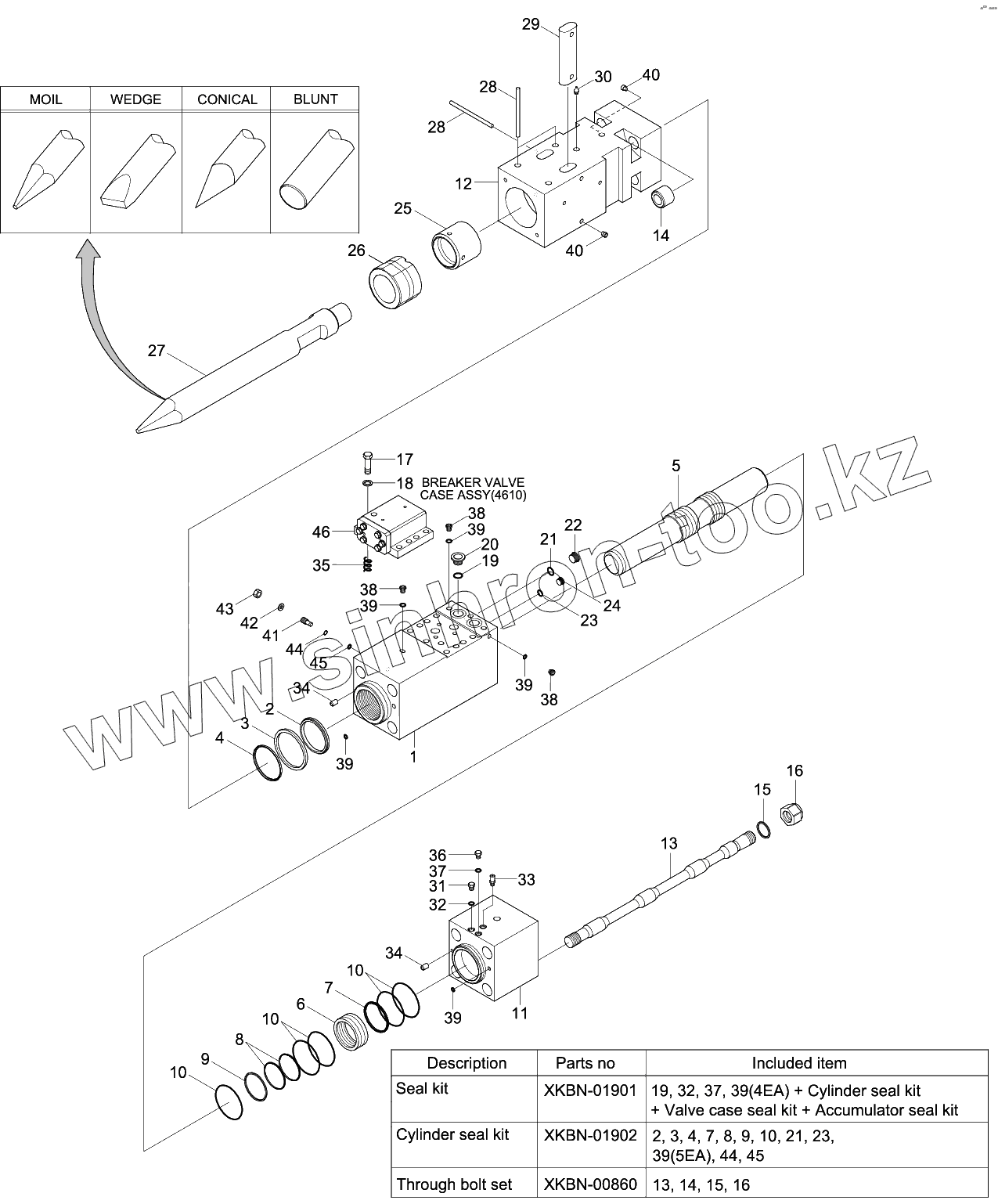

Каталог запасных частей к технике: Hyundai R210W-9. BREAKER ASSY (1/3)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
XKBN-01901
XKBN-01902
XKBN-00860
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
29
30
31
32
33
34
34
35
36
37
38
38
38
39
39
39
39
39
40
40
41
42
43
44
45
46
Позиция на иллюстрации Заводской номер детали Название детали
MAINBODY MAINBODY MAIN BODY ASSY
XKBN-01901 XKBN-01901 SEAL KIT-BREAKER
XKBN-01902 XKBN-01902 SEAL KIT-CYLINDER
XKBN-00860 XKBN-00860 THROUGH BOLT SET
31Q6-81110 31Q6-81110 HYD BREAKER ASSY
DECAL DECAL DECAL
HOSE HOSE HOSE ASSY
1 XKBN-00866 CYLINDER
2 XKBN-00875 RING-BUFFER
3 XKBN-00868 U-PACKING
4 XKBN-00869 SEAL-DUST
5 XKBN-00870 PISTON
6 XKBN-00872 BUSHING-CYLINDER
7 XKBN-00873 RING-QUAD
8 XKBN-00874 SEAL-STEP
9 XKBN-00875 RING-BUFFER
10 XKBN-00876 O-RING
11 XKBN-00897 CAP-HEAD
12 XKBN-00890 HEAD-FRONT
13 XKBN-00861 BOLT-THROUGH
14 XKBN-00864 NUT-WOOD RUFF
15 XKBN-00863 WASHER-THROUGH BOLT
16 XKBN-00862 NUT-HEX, T/BOLT
17 XKBN-00903 BOLT-HEX
18 XKBN-00904 WASHER-NORD LOCK
19 XKBN-00877 O-RING
20 XKBN-00878 PLUG-HEX SOCKET
21 XKBN-00181 O-RING
22 XKBN-00880 Plug-Hex Socket
23 XKBN-00127 O-RING
24 XKBN-00880 Plug-Hex Socket
25 XKBN-00891 RING-THRUST
26 XKBN-01896 COVER-FRONG, TIGHT
27 XKBN-01898 CHISEL-WEDGE
27 XKBN-01897 CHISEL-MOIL
27 XKBN-01899 CHISEL-CONICAL
27 XKBN-01900 CHISEL-BLUNT
28 XKBN-00894 PIN-STOP
29 XKBN-00895 PIN-CHISEL
30 XKBN-00892 Grease-Nipple
31 XKBN-00899 Air Cap Sub Assy
32 XKBN-00539 O-Ring
33 XKBN-00898 Coupling-Screw
34 XKBN-00901 PIN-KNOCK
35 XKBN-00888 COIL-HELI
36 XKBN-00881 Plug-Hex Socket
37 XKBN-00015 O-Ring
38 XKBN-00881 Plug-Hex Socket
39 XKBN-00015 O-Ring
40 XKBN-00893 Plug-Hollow
41 XKBN-00883 Valve-Auto Control
42 XKBN-00884 Washer-Nord Lock
43 XKBN-00885 Nut-Hex
44 XKBN-00886 Ring-Back Up
45 XKBN-00887 O-Ring
46 VALVECASE VALVE CASE ASSY
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
