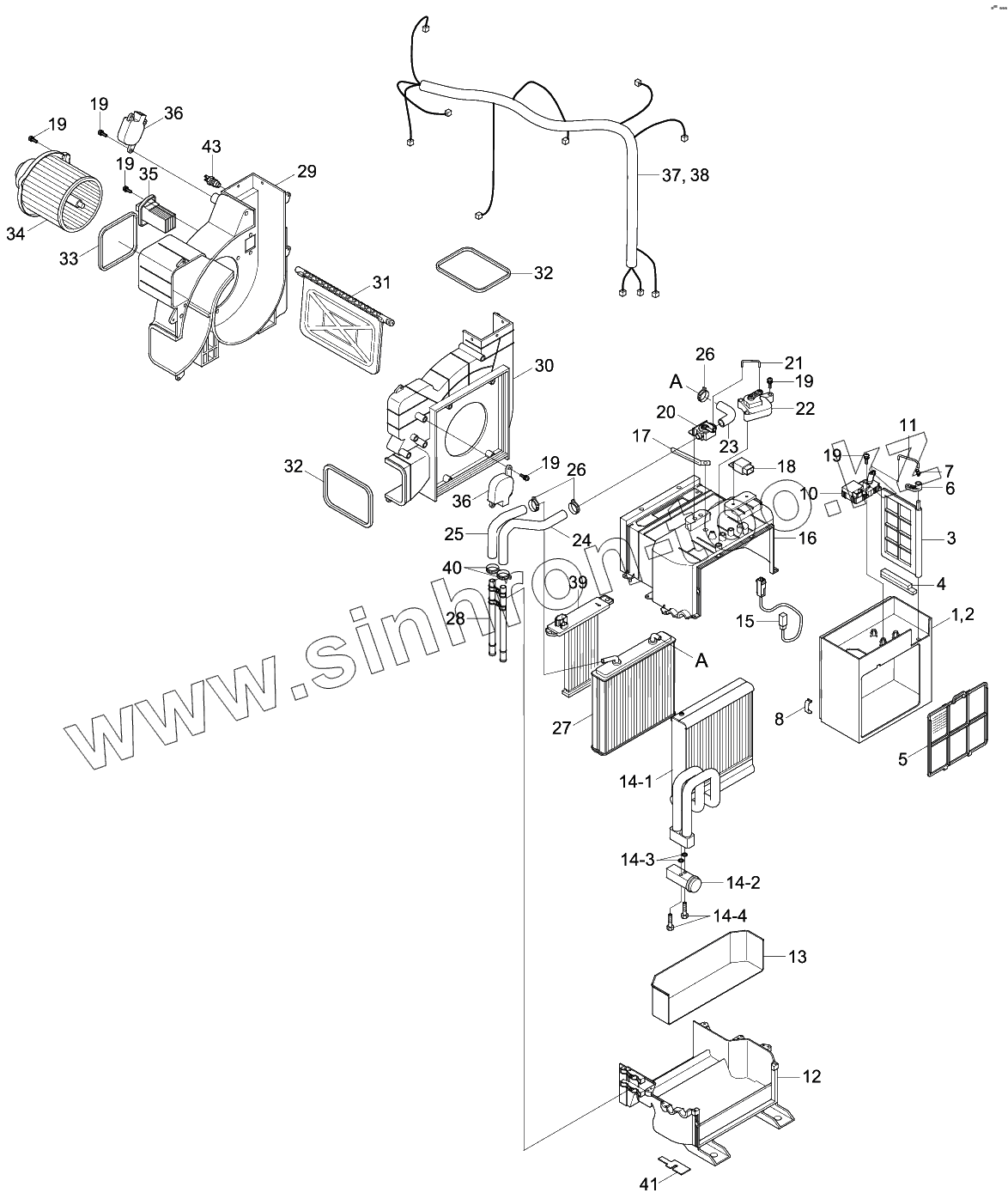

Каталог запасных частей к технике: Hyundai R210W-9. AIRCON & HEATER UNIT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
10
11
12
13
14-1
14-2
14-3
14-4
15
17
18
19
19
19
19
19
19
20
21
22
23
24
25
26
26
27
28
32
32
33
34
35
36
36
37
38
39
4
40
41
43
5
7
8
1
16
2
29
3
30
31
6
Позиция на иллюстрации Заводской номер детали Название детали
11Q6-90412 11Q6-90412 Aircon&Heater Unit-Fatc
11Q6-90413 11Q6-90413 AIRCON&HEATER UNIT-FATC
11Q6-90020 11Q6-90020 Aircon&Heater Unit-Satc
11Q6-90021 11Q6-90021 Aircon&Heater Unit-Satc
10 11Q6-90570 MOTOR ACT-INTAKE
11 AM52300100-4 Rod-Intake
11 AM52300100-3 ROD-INTAKE
12 AH002402 HVAC CASE-LOW
13 AH002463 HVAC INSULATION-LOW
14 11Q6-90560 CORE ASSY-EVAP
14-1 A1W00864 CORE-EVAP
14-2 11Q6-90551 VALVE-EXPANSION
14-3 A308000214-2 O-Ring
14-3 A302000214-2 O-RING
14-4 A1W00837 BOLT-TXV
15 AH100730 THERMISTOR
17 XKAN-00097 Holder-Wire
18 11N6-90820 RELAY
19 XKAN-00012 Screw- High Lwr
20 AH001160 VLAVE-WATER
21 AH000559 ROD-TEMP
22 AH100656 MOTOR ACT ASSY-TEMP
23 AH001287 HOSE-INLET,WATER
24 AH002411 HOSE-INLET,WATER
25 AH002412 HOSE-OUTLET,WATER
26 XKAN-00049 Clamp-Water Hose
27 11Q6-90540 HEATER SET-RAD
28 AH002410 PIPE-INLET/OUTLET
32 AW80000303-3 Seal-Sponge A
32 AW800003-3 SEAL-SPONGE A
33 AW80000304-3 Seal-Sponge B
33 AW800003-4 Seal-Sponge B
34 11N6-90700 FAN & MOTOR
35 11Q6-90530 FET
36 11Q6-90520 MOTOR ACT ASSY-VENT DF
37 11Q6-90600 WIRING ASSY-FATC
38 11Q6-90610 Wiring Assy-Satc
39 11Q6-90502 APTC ASSY
4 AM70003600-3 SEAL-FILTER,FRESH
40 AH000314 CLAMP-H/RAD PIPE
41 AA000079 COVER FILM-TXV
43 11N6-90890 SENSOR-TEMP
5 11N6-90770 AIR FILTER-REFRESH
7 3AH0705 ROD-CLAMP
8 4AH0688 CLIP-CASE
1 AH002585 Case-Upper Htr & Evap
1 AH002686 CASE-UPPER,INTAKE
16 AH002401 HVAC CASE-UPP
2 AM13200100-0 CASE-LOWER,INTAKE
29 AH002403 CASE-BLOWER,LH
3 AM47000200-2 DAMPER ASSY-INTAKE
30 AH002404 CASE-BLOWER,RH
31 AH002407 DOOR ASSY-VENT
6 AH54100100-3 LEVER-DEF
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
