Каталог запасных частей к технике: Hyundai R210W-9. A030 REAR GEAR HOUSING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING AIR INTAKE SYSTEM EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM (WITHOUT PREFILTER, -#0059) FUEL SYSTEM (WITHOUT PREFILTER, #0060-) FUEL SYSTEM (W/PREFILTER, R210W-9MH) FUEL SYSTEM (WITH PREFILTER, -#0059) FUEL SYSTEM (WITH PREFILTER, #0060-) FUEL SYSTEM (W/O PREFILTER, R210W-9MH) FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT AIR CONDITIONER MOUNTING AIR CONDITIONER UNIT (SEMI AUTO) HEATER MOUNTING HEATER UNIT (SEMI AUTO) PRE HEATING GROUP RH ELECTRIC LH ELECTRIC LOWER ELECTRIC BOOM ELECTRIC BOOM ELECTRIC (ADJUST BOOM, #0243-) ENGINE ELECTRIC ELECTRIC BOX (-#0374) ELECTRIC BOX (#0375-) CAB ELECTRIC 1 CAB ELECTRIC 2 CABIN ROOM ELECTRIC CLUSTER CLUSTER (OPTION) BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX AIR COMPRESSOR ELECTRIC CAB ELEVATING HARNESS (R210W-9MH) PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING (ATTACH, ADJUST BOOM) UPPER HYD PIPING (TRAVEL) UPPER HYD PIPING (ADJUST BOOM) CONTROL VALVE (ADJUST BOOM) PILOT HYD PIPING (CONTROL 1) PILOT HYD PIPING (CONTROL 2) PILOT HYD PIPING (CONTROL 3) PILOT HYD PIPING (BASE 1, -#0024) PILOT HYD PIPING (BASE 1, #0025-) PILOT HYD PIPING (BASE 2) PILOT HYD PIPING (BASE 3, -#0024) PILOT HYD PIPING (BASE 3, #0025-) PILOT HYD PIPING (4 OUTRIGGER) PILOT HYD PIPING (FR/OT, RR/BLADE) POWER TRAIN HYD PIPING 1 POWER TRAIN HYD PIPING 2 POWER TRAIN HYD PIPING 3 POWER TRAIN HYD PIPING (1-WAY PEDAL) POWER TRAIN HYD PIPING (2-WAY PEDAL) LOWER HYD PIPING 1 (#0285-) LOWER HYD PIPING 2 (#0285-) LOWER HYD PIPING 3 (#0285-) LOWER HYD PIPING 1 (#0286-) LOWER HYD PIPING 2 (#0286-) LOWER HYD PIPING 3 (#0286-) FRONT OUTRIGGER HYD PIPING (#0285-) REAR DOZER BLADE HYD PIPING (#0285-) FRONT OUTRIGGER HYD PIPING (#0286-) REAR DOZER BLADE HYD PIPING (#0286-) FRONT OUTRIGGER HYD PIPING (-#0285) REAR OUTRIGGER HYD PIPING (-#0285) FRONT OUTRIGGER HYD PIPING (#0286-) REAR OUTRIGGER HYD PIPING (#0286-) LOWER HYD PIPING 1 (F/BLD, R/OUT, -#0285) LOWER HYD PIPING 2 (F/BLD, R/OUT, -#0285) LOWER HYD PIPING 1 (F/BLD, R/OUT, #0286-) LOWER HYD PIPING 2 (F/BLD, R/OUT, #0286-) LOWER HYD PIPING 1 (F/BLD, R/BLD, -#0285) LOWER HYD PIPING 2 (F/BLD, R/BLD, -#0285) LOWER HYD PIPING 1 (F/BLD, R/BLD, #0286-) LOWER HYD PIPING 2 (F/BLD, R/BLD, #0286-) BOOM HYD PIPING 1 (5.65M, STD) BOOM GREASE LUB SYSTEM (5.65M, STD) BOOM HYD PIPING (ADJUST BOOM) BOOM GREASE LUB SYSTEM (ADJUST BOOM) BOOM HYD PIPING (5.2M, SHORT) BOOM GREASE LUB SYSTEM (5.2M, SHORT) BOOM HYD PIPING (5.55M, OPT) BOOM GREASE LUB SYSTEM (5.55M, OPT) BOOM HYD PIPING (6.5M, R210W-9MH) BOOM GREASE LUB SYSTEM (R210W-9MH) ATTACH PIPING KIT (S & D/ACTING) ATTACH PIPING KIT (S&D/ACTING, ADJ/ BOOM) BOOM SAFETY LOCK SYSTEM BOOM SAFETY LOCK SYSTEM (ADJUST BOOM) QUICK CLAMP HYD PIPING QUICK CLAMP (HOOK TYPE 1) QUICK CLAMP (CLOSED TYPE 1) QUICK CLAMP (HOOK TYPE 2) QUICK CLAMP (CLOSED TYPE 2) QUICK CLAMP (HOOK TYPE , #0329-) QUICK CLAMP (CLOSED TYPE 1, #0329-) QUICK CLAMP (HOOK TYPE 2, #0329-) QUICK CLAMP (CLOSED TYPE 2, #0329-) ARM HYD PIPING (AM 2.92M, STD) ARM HYD PIPING (AM 2.00M) ARM HYD PIPING (AM 2.40M) ARM HYD PIPING (AM 2.70M) ARM HYD PIPING (AM 2.80M) ARM HYD PIPING (4.5M, R210W-9MH) ARM GREASE LUB SYSTEM (4.5M, R210W-9MH) ARM SAFETY LOCK SYSTEM ARM SAFETY LOCK SYSTEM (ADJUST BOOM) DOUBLE ACTING MAIN PIPING KIT 1 DOUBLE ACTING MAIN PIPING KIT 2 D/ACTING MAIN PIPING KIT 1 (ADJUST BOOM) D/ACTING MAIN PIPING KIT 2 (ADJUST BOOM) SINGLE PEDAL (DOUBLE ACTING) SINGLE ACTING MAIN PIPING KIT MAIN PUMP (1/2) MAIN PUMP (2/2) REGULATOR GEAR PUMP EPPR VALVE MAIN CONTROL VALVE (1/4) MAIN CONTROL VALVE (2/4) MAIN CONTROL VALVE (3/4) MAIN CONTROL VALVE (4/4) SWING MOTOR (TYPE 1) SWING REDUCTION GEAR (TYPE 1) SWING MOTOR (TYPE 2, 3) SWING REDUCTION GEAR (TYPE 2, 3) REMOTE CONTROL LEVER (TYPE 1, 2) REMOTE CONTROL LEVER (TYPE 3, -#0349) REMOTE CONTROL LEVER (TYPE 4, -#0406) REMOTE CONTROL LEVER (TYPE 4, #0407-) REMOTE CONTROL LEVER (TYPE 5) REMOTE CONTROL LEVER (TYPE 6) REMOTE CONTROL LEVER (TYPE 7) DOZER CONTROL LEVER ACCELERATOR PEDAL (STD) ACCELERATOR PEDAL (2 WAY, OPT) TRAVEL MOTOR (1/2) TRAVEL MOTOR (2/2, -#0417) TRAVEL MOTOR (2/2, #0418-) COUNTER BALANCE VALVE TURNING JOINT (-#0285) TURNING JOINT SUB ASSY (-#0285) TURNING JOINT (#0286-) TURNING JOINT SUB ASSY (#0286-) BOOM CYLINDER BOOM SAFETY LOCK CYLINDER (ADJUST BOOM) ARM CYLINDER BUCKET CYLINDER DOZER BLADE CYLINDER OUTRIGGER CYLINDER ADJUST CYLINDER SOLENOID VALVE (-#0184) SOLENOID VALVE (#0185-) STEERING VALVE TRAVEL CONTROL VALVE BRAKE SUPPLY VALVE BRAKE VALVE BREAKER ASSY (1/3) BREAKER ASSY (2/3) BREAKER ASSY (3/3) BREAKER AUTO GREASE UNIT (OPT) BREAKER CENTRAL GREASE SUPPLY UNIT (OPT) POWER TRAIN MOUNTING PROPELLER SHAFT (-#0192) PROPELLER SHAFT (#0193-) OSCILLATING CYLINDER FRONT AXLE INPUT GROUP (-#0010) FRONT AXLE DIFFERENTIAL (-#0010) FRONT AXLE CASING (-#0010) FRONT AXLE JOINT HOUSING (-#0010) FRONT AXLE OUTPUT GROUP (-#0010) FRONT AXLE STEERING GEAR (-#0010) FRONT AXLE UNIVERSAL JOINT (-#0010) REAR AXLE INPUT GROUP (-#0010) REAR AXLE DIFFERENTIAL (-#0010) REAR AXLE CASING (-#0010) REAR AXLE HUB CARRIER (-#0010) REAR AXLE OUTPUT GROUP (-#0010) TRANSMISSION INPUT HOUSING TRANSMISSION HOUSING TRANSMISSION MULTI-DISC BRAKE TRANSMISSION COUPLING TRANSMISSION PLANETARY DRIVE TRANSMISSION OUTPUT GROUP TRANSMISSION GEAR SHIFT SENSOR TRANSMISSION OIL PIPE FRONT AXLE INPUT GROUP (#0011-) FRONT AXLE DIFFERENTIAL (#0011-) FRONT AXLE CASING (#0011-) FRONT AXLE JOINT HOUSING (#0011-) FRONT AXLE OUTPUT GROUP (#0011-) FRONT AXLE STEERING GEAR (#0011-) FRONT AXLE UNIVERSAL JOINT (#0011-) REAR AXLE INPUT GROUP (#0011-) REAR AXLE DIFFERENTIAL (#0011-) REAR AXLE CASING (#0011-) REAR AXLE HUB CARRIER (#0011-) REAR AXLE OUTPUT GROUP (#0011-) CAB MOUNTING CAB ASSY (1/4) CABIN A/S KIT CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX1 (LH, #0258-) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) CONSOLE BOX (RH, #0258-) SEAT BASE ASSY SEAT BASE ASSY (#0258-) SEAT (SUSPENSION, HEATED, STD) SEAT (SUSPENSION) SEAT (SUSPENSION, 2"AIR RIDE, HEATED) SEAT (SUSPENSION, 2"AIR RIDE) SEAT (#0258-) STORAGE BOX ASSY BOTTOM PLATE MOUNTING STEERING COLUMN COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX GROMMET GROUP UPPER FRAME & COUNTERWEIGHT LOWER FRAME & FENDER SWING RING GREASE LUB SYSTEM DOZER BLADE-REAR DOZER BLADE-REAR (LOCAL) DOZER BLADE-FRONT OUTRIGGER MOUNTING (FRONT) OUTRIGGER MOUNTING (REAR) OUTRIGGER ASSY (REAR) BOOM MOUNTING (5.65M, STD) BOOM MOUNTING (ADJUST BOOM, -#0206) BOOM MOUNTING (ADJUST BOOM, #0207-) BOOM BOOM (ADJUST BOOM) BOOM (6.5M, R210W-9MH) ARM ARM (2.0M) ARM (2.4M) ARM (2.7M) ARM (2.8M) ARM (4.5M, R210W-9MH) BUCKET CONTROL GROUP BUCKET (5 TEETH) BUCKET (3 TEETH) BUCKET (6 TEETH) BUCKET (5 TEETH, HEAVY DUTY) BUCKET (5 TEETH, ROCK) BUCKET (SLOPE FINISHING) TOOLS HCE-DT KIT HCEC ENGINE INSITE KIT DECALS MANUALS AIR HEATER STARTING AID DATAPLATE REAR GEAR HOUSING CRANKSHAFT & MAIN BEARINGS CYLINDER BLOCK VALVE TAPPET CRANKCASE BREATHER COOLANT HEATER STARTING AID VIBRATION DAMPER REAR GEAR TRAIN MOUNTING THERMOSTAT ALTERNATOR MOUNTNG FAN DRIVE FUEL FILTER LOCATION FUEL FILTER PLUMBING FLYWHEEL HOUSING FUEL INLET FITTING FUEL PUMP FUEL PLUMBING FLYWHEEL FRONT GEAR COVER HEATER PLUMBING AUXILIARY PUMP MOUNTING AIR INTAKE CONNECTION AIR INTAKE HOSE AIR INTAKE COVER AIR TRANSFER CONNECTION LIFTING ARRANGEMENT ENGINE OIL COOLER FULL FLOW OIL FILTER OIL LEVEL GAUGE LUBRICATING OIL PUMP OIL FILLER ARRANGEMENT OIL PAN ENGINE CONTROL MODULE CONNECTING ROD AND PISTON CAMSHAFT FUEL INJECTOR CYLINDER HEAD TURBOCHARGER INJECTER PLUMBING ROCKER LEVER ENGINE COOLANT VENT OIL LEVEL SENSOR HEAT SHIELD 1 HEAT SHIELD 2 STARTING MOTOR STARTING MOTOR MOUNTING FAN PILOT SPACER TURBOCHARGER ARRANGEMENT TORQUE CONVERTER OIL COOLER TURBOCHARGER PLUMBING VALVE COVER ARRANGEMENT WATER INLET CONNECTION WATER OUTLET CONNECTION WATER PUMP DRIVE WATER PUMP BELT TENSIONER ENGINE CONTROL MODULE HARNESS EXHAUST OUTLET A010 AIR HEATER STARTING AID A020 DATAPLATE A030 REAR GEAR HOUSING A040 CRANKSHAFT & MAIN BEARINGS A050 CYLINDER BLOCK A060 VALVE TAPPET A070 CRANKCASE BREATHER A080 COOLANT HEATER STARTING AID A090 VIBRATION DAMPER A100 REAR GEAR TRAIN MOUNTING A110 THERMOSTAT A120 ALTERNATOR MOUNTNG A130 FAN DRIVE A140 FUEL FILTER LOCATION A150 FUEL FILTER PLUMBING A160 FLYWHEEL HOUSING A170 FUEL INLET FITTING A180 FUEL PUMP A190 FUEL PLUMBING A200 FLYWHEEL A210 FRONT GEAR COVER A220 HEATER PLUMBING A230 AUXILIARY PUMP MOUNTING A240 AIR INTAKE CONNECTION A250 AIR INTAKE HOSE A260 AIR INTAKE COVER A270 AIR TRANSFER CONNECTION A280 LIFTING ARRANGEMENT A300 ENGINE OIL COOLER A310 FULL FLOW OIL FILTER A320 OIL LEVEL GAUGE A330 LUBRICATING OIL PUMP A340 OIL FILLER ARRANGEMENT A350 OIL PAN A360 ENGINE CONTROL MODULE A370 CONNECTING ROD AND PISTON A380 CAMSHAFT A390 FUEL INJECTOR A400 CYLINDER HEAD A410 TURBOCHARGER A420 INJECTER PLUMBING A440 ROCKER LEVER A450 ENGINE COOLANT VENT A460 OIL LEVEL SENSOR A470 HEAT SHIELD 1 A480 HEAT SHIELD 2 A485 STARTING MOTOR A490 STARTING MOTOR MOUNTING A500 FAN PILOT SPACER A510 TURBOCHARGER ARRANGEMENT A520 TORQUE CONVERTER OIL COOLER A530 TURBOCHARGER PLUMBING A540 VALVE COVER ARRANGEMENT A550 WATER INLET CONNECTION A560 WATER OUTLET CONNECTION A570 WATER PUMP DRIVE A580 WATER PUMP A590 BELT TENSIONER A600 ENGINE CONTROL MODULE HARNESS A610 EXHAUST OUTLET

1

2

3

4

5

6

7

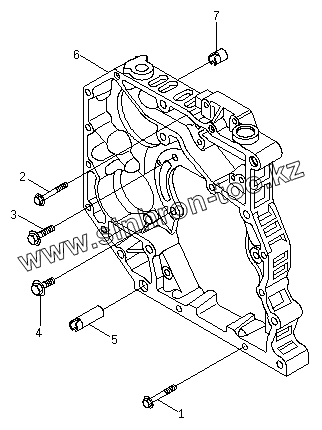

Позиция на иллюстрации	Заводской номер детали		Название детали
XKDE-01169	XKDE-01169		HOUSING-GEAR
1	XKDE-01368		SCREW-HEX HD CAP
2	XKDE-00324		SCREW-HEX HD CAP
3	XKDE-00111		SCREW-HEX HD CAP
4	XKDE-01367		SCREW-HEX HD CAP
5	XKDE-01049		DOWEL-RING
6	XKDE-01170		HOUSING-GEAR
7	XKDE-01184		INSERT-THREADED

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
