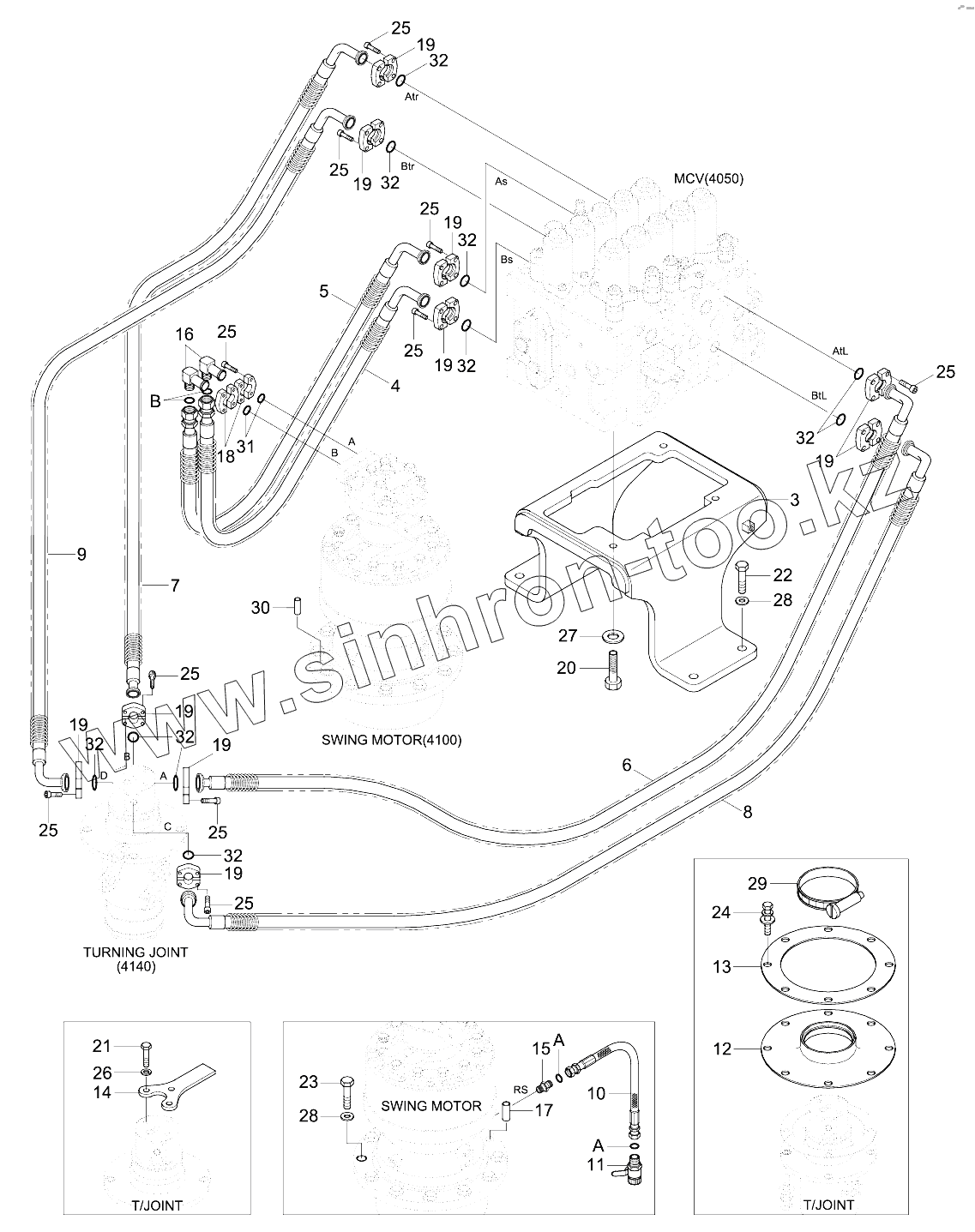

Каталог запасных частей к технике: Hyundai R210NLC-9. UPPER HYD PIPING (TRAVEL)
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
19
19
19
19
19
20
21
22
23
24
25
25
25
25
25
25
25
25
25
25
26
27
28
28
29
30
31
32
32
32
32
32
32
32
32
A
A
A
B
B
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | 31Q6-13460 | Bracket-Mcv Mtg | |
| 4 | 31Q6-13161 | Hose Assy | |
| 5 | 31Q6-13170 | Hose Assy | |
| 6 | 31Q6-14110 | Hose Assy | |
| 7 | 31Q6-14120 | Hose Assy | |
| 8 | 31Q6-14131 | Hose Assy | |
| 9 | 31Q6-14140 | Hose Assy | |
| 10 | 31Q6-12430 | Hose Assy-Drain | |
| 11 | 31Q9-11600 | VALVE-DRAIN | |
| 12 | 31N1-40941 | RUBBER-T/JOINT | |
| 13 | 31N1-40951 | COVER-T/JOINT | |
| 14 | 31N1-40961 | BRACKET-T/JOINT | |
| 15 | X500-430003 | CONNECTOR-ORFS | |
| 16 | 31N8-11312 | Elbow-90 | |
| 17 | 31E4-3039 | Pin-Dowel | |
| 18 | P173-120102 | FLANGE-HYD,SPLIT | |
| 19 | P173-160104 | FLANGE-HYD,SPLIT | |
| 20 | S017-120356 | BOLT-HEX | |
| 21 | S017-140306 | BOLT-HEX | |
| 22 | S017-20050D | BOLT-HEX | |
| 23 | S017-20075D | BOLT-HEX | |
| 24 | S037-102026 | BOLT-W/WASHER | |
| 25 | S109-100306 | BOLT-SOCKET | |
| 26 | S411-140006 | WASHER-SPRING | |
| 27 | S441-12000B | WASHER-HARDENED | |
| 28 | S441-200006 | WASHER-HARDENED | |
| 29 | S520-130000 | CLAMP-HOSE | |
| 30 | S981-202500 | PLUG | |
| 31 | Y171-019004 | O-RING | |
| 32 | Y171-024004 | O-RING | |
| A | S621-012001 | O-RING | |
| B | S621-018001 | O-RING |
