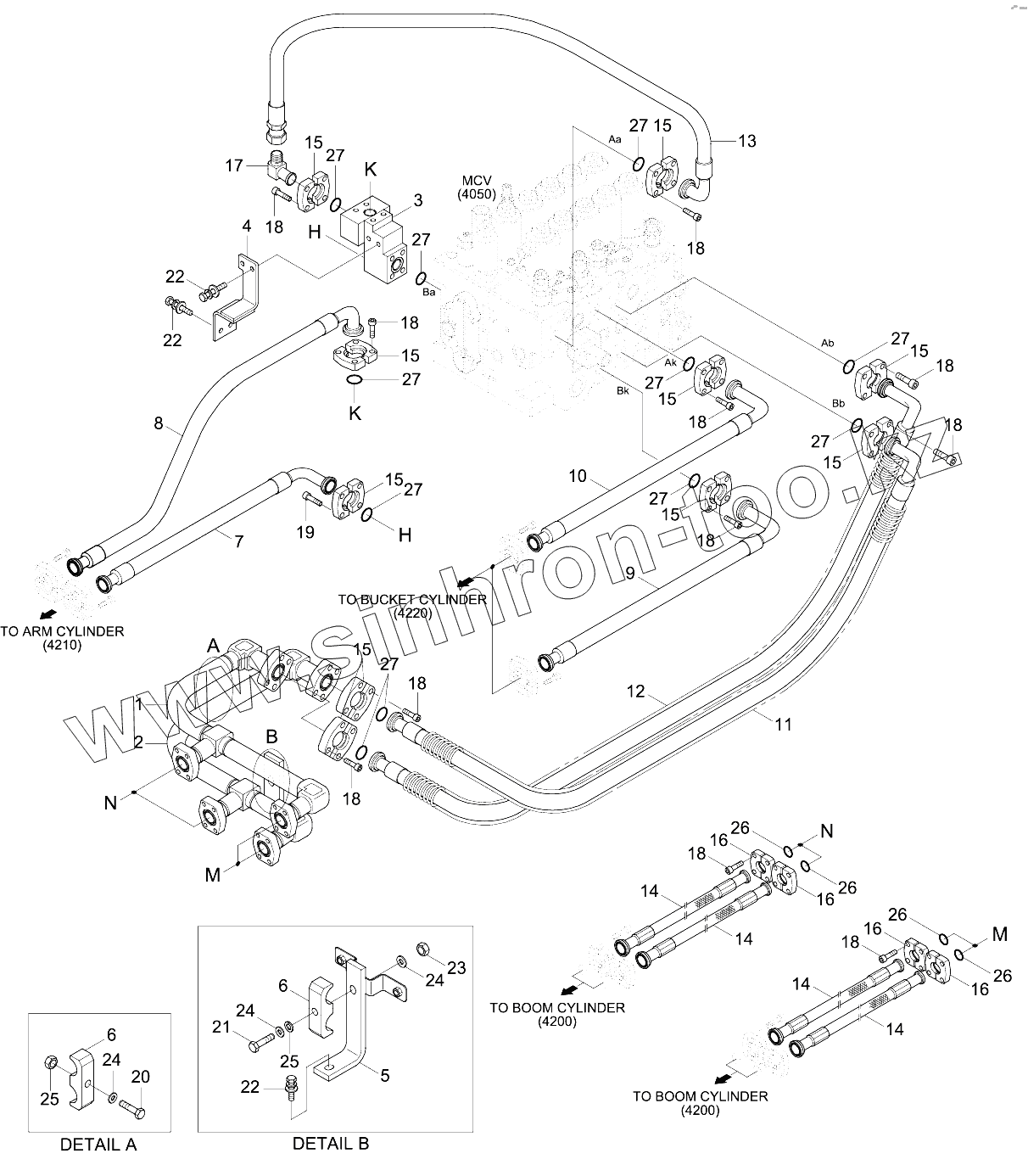

Каталог запасных частей к технике: Hyundai R210NLC-9. UPPER HYD PIPING (ATTACH)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
14
14
14
15
15
15
15
15
15
15
15
15
16
16
16
16
17
18
18
18
18
18
18
18
18
18
18
18
19
20
21
22
22
22
23
24
24
24
25
25
26
26
26
26
27
27
27
27
27
27
27
27
27
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q6-13451 | 31Q6-13451 | Pipe Wa | |
| 31Q6-13441 | 31Q6-13441 | Pipe Wa | |
| 31Q6-13491 | 31Q6-13491 | Hose Assy | |
| 31Q6-13481 | 31Q6-13481 | Hose Assy | |
| 31Q6-13580 | 31Q6-13580 | Hose Assy | |
| 31Q6-13570 | 31Q6-13570 | Hose Assy | |
| 31Q6-13560 | 31Q6-13560 | Hose Assy | |
| 31Q6-13550 | 31Q6-13550 | Hose Assy | |
| 1 | 31Q6-13440 | Pipe Wa | |
| 2 | 31Q6-13450 | Pipe Wa | |
| 3 | 31Q6-12401 | BLOCK | |
| 4 | 31Q6-12420 | BRACKET | |
| 5 | 31Q6-11322 | Bracket Wa | |
| 6 | 31Q6-11330 | CLAMP | |
| 7 | 31Q6-13321 | Hose Assy | |
| 8 | 31Q6-13330 | Hose Assy | |
| 9 | 31Q6-13400 | Hose Assy | |
| 10 | 31Q6-13410 | Hose Assy | |
| 11 | 31Q6-13480 | Hose Assy | |
| 12 | 31Q6-13490 | Hose Assy | |
| 13 | 31Q6-13380 | Hose Assy | |
| 14 | 31Q6-13390 | Hose Assy | |
| 15 | P173-160104 | FLANGE-HYD,SPLIT | |
| 16 | P173-120102 | FLANGE-HYD,SPLIT | |
| 17 | 31NB-10380 | Elbow-90,Orfs | |
| 18 | S109-100306 | BOLT-SOCKET | |
| 19 | S109-101006 | BOLT-SOCKET | |
| 20 | S017-120706 | BOLT-HEX | |
| 21 | S017-120956 | BOLT-HEX | |
| 22 | S037-123026 | BOLT-W/WASHER | |
| 23 | S205-12100B | NUT-HEX | |
| 24 | S403-12200B | WASHER-PLAIN | |
| 25 | S411-120006 | WASHER-SPRING | |
| 26 | Y171-019004 | O-RING | |
| 27 | Y171-024004 | O-RING |
