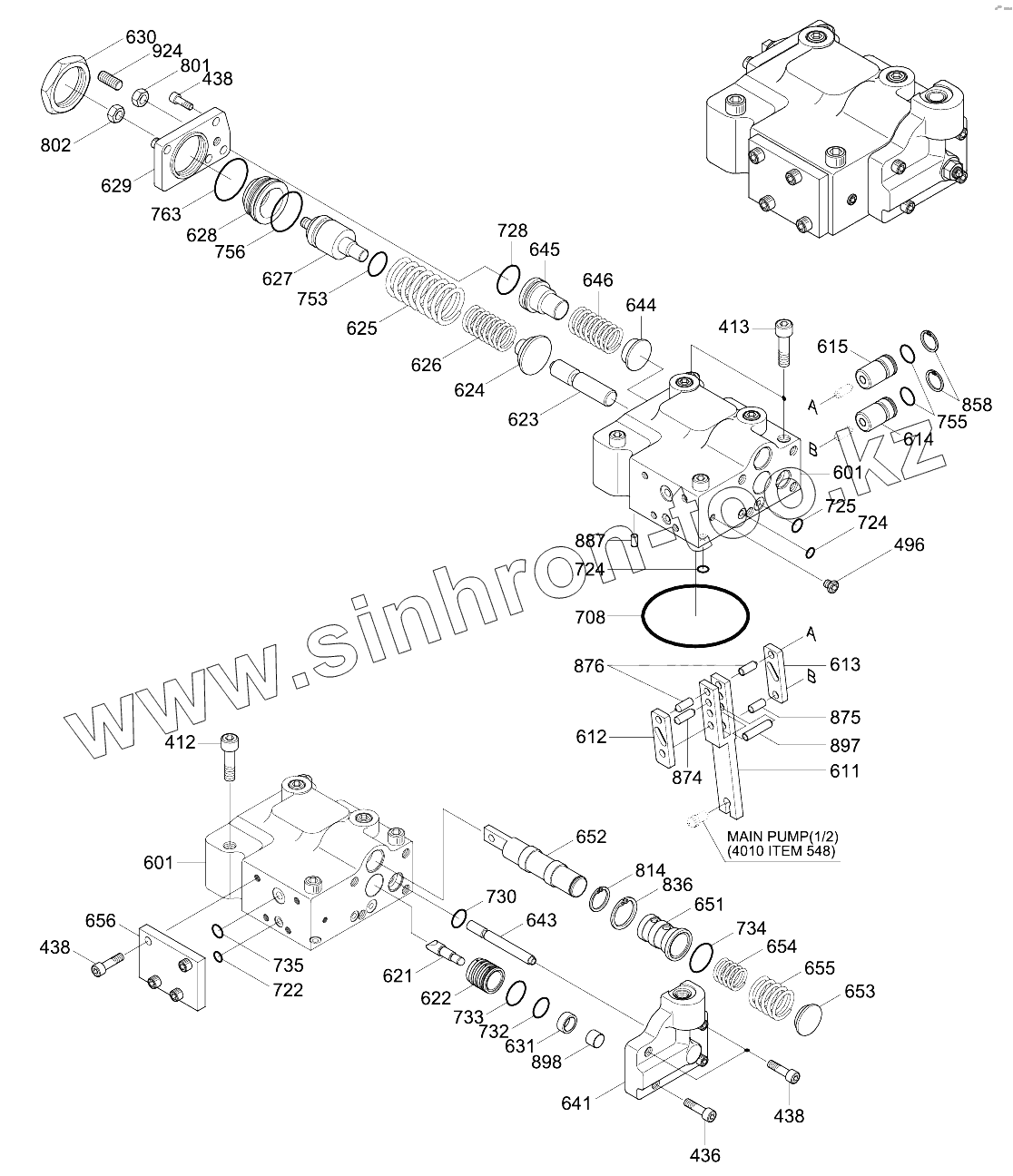

Каталог запасных частей к технике: Hyundai R210NLC-9. REGULATOR
412
413
436
438
438
438
496
611
612
614
615
621
622
625
626
629
630
631
641
645
652
653
654
655
656
708
722
724
724
725
728
730
732
733
734
735
755
763
801
814
836
858
874
875
876
887
897
898
924
K627
K628
K753
K756
K802
N601
N601
N613
N623
N624
N643
N644
N646
N651
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| XJBN-01623 | XJBN-01623 | Regulator | |
| 412 | XJBN-00321 | SCREW-HEX | |
| 413 | XJBN-00320 | SCREW-HEX | |
| 436 | XJBN-00319 | SCREW-HEX | |
| 438 | XJBN-00318 | SCREW-HEX | |
| 496 | XJBN-00032 | PLUG | |
| 611 | XJBN-00347 | Lever-Feedback | |
| 612 | XJBN-00315 | LEVER-1 | |
| 614 | XJBN-00313 | PLUG-CENTER | |
| 615 | XJBN-00312 | PLUG-ADJUST | |
| 621 | XJBN-00311 | PISTON-COMPENSATOR | |
| 622 | XJBN-00346 | CASE-PISTON | |
| 625 | XJBN-00345 | Spring-Outer | |
| 626 | XJBN-00306 | SPRING-INNER | |
| 629 | XJBN-00303 | COVER(C) | |
| 630 | XJBN-00302 | LOCK NUT | |
| 631 | XJBN-00301 | Sleeve | |
| 641 | XJBN-00871 | COVER-PILOT | |
| 645 | XJBN-01042 | Stem(Q)-Adjust | |
| 652 | XJBN-00291 | SPOOL | |
| 653 | XJBN-00290 | SEAT-SPRING | |
| 654 | XJBN-00289 | SPRING-RETURN | |
| 655 | XJBN-00288 | SPRING-SET | |
| 656 | XJBN-00287 | COVER-BLOCK | |
| 708 | XJBN-00286 | O-RING | |
| 722 | XJBN-00285 | O-RING | |
| 724 | XJBN-00044 | O-RING | |
| 725 | XJBN-00231 | O-RING | |
| 728 | XJBN-00097 | O-RING | |
| 730 | XJBN-00230 | O-RING | |
| 732 | XJBN-00820 | O-RING | |
| 733 | XJBN-00282 | O-RING | |
| 734 | XJBN-00281 | O-RING | |
| 735 | XJBN-00280 | O-RING | |
| 755 | XJBN-00045 | O-RING | |
| 763 | XJBN-00094 | O-RING | |
| 801 | XJBN-00278 | NUT | |
| 814 | XJBN-00277 | RING-SNAP | |
| 836 | XJBN-00276 | RING-SNAP | |
| 858 | XJBN-00275 | RING-SNAP | |
| 874 | XJBN-00344 | PIN | |
| 875 | XJBN-00273 | PIN | |
| 876 | XJBN-00794 | PIN | |
| 887 | XJBN-00272 | PIN | |
| 897 | XJBN-00795 | PIN | |
| 898 | XJBN-00270 | Pin | |
| 924 | XJBN-00269 | SCREW-SET | |
| K627 | XJBN-01031 | STEM(C)-ADJUST | |
| K628 | XJBN-01025 | SCREW(C)-ADJUST | |
| K753 | XJBN-01026 | O-RING | |
| K756 | XJBN-00279 | O-RING | |
| K802 | XJBN-01027 | NUT | |
| N601 | XJBN-00792 | Casing | |
| N613 | XJBN-01211 | Lever-2 | |
| N623 | XJBN-01202 | ROD-COMPENSATOR | |
| N624 | XJBN-01203 | SEAT-SPRING | |
| N643 | XJBN-01205 | PISTON-PILOT | |
| N644 | XJBN-01206 | SEAT-SPRING | |
| N646 | XJBN-01379 | Spring-Pilot | |
| N651 | XJBN-01624 | Sleeve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
