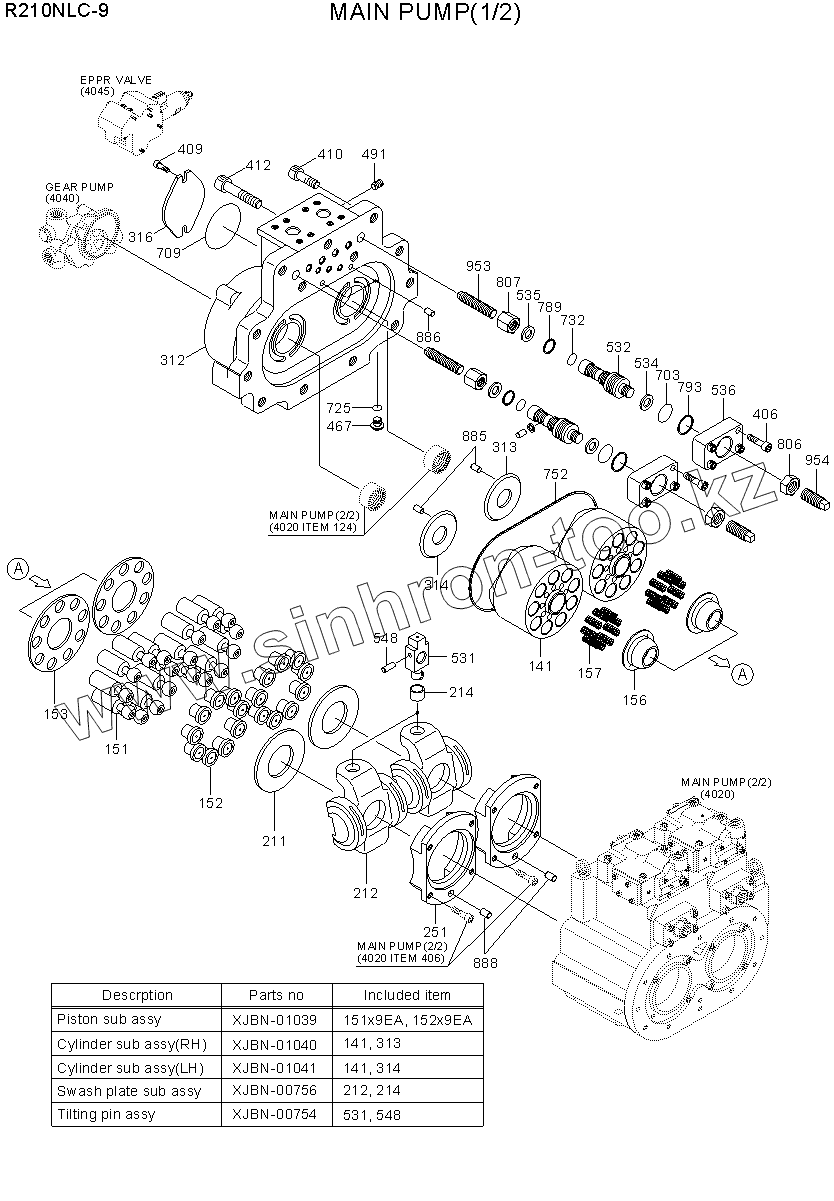

Каталог запасных частей к технике: Hyundai R210NLC-9. MAIN PUMP (1/2)
153
156
157
211
251
312
316
406
409
410
412
467
491
532
534
535
536
703
709
725
732
752
789
793
806
807
885
886
888
953
954
NS141
NS151
NS152
NS212
NS313
NS314
NS531
NS548
S
S
S
S
S
S214
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q6-10100 | 31Q6-10100 | Main Pump | |
| MainPumpUnit | MainPumpUnit | Main Pump Unit | |
| 153 | XJBN-00945 | Plate-Set | |
| 156 | XJBN-00083 | Bushing-Spherical | |
| 157 | XJBN-00084 | Spring-Cylinder | |
| 211 | XJBN-00085 | Plate-Shoe | |
| 251 | XJBN-00779 | Support | |
| 312 | XJBN-00776 | Cover-Valve | |
| 316 | XJBN-00690 | Cover | |
| 406 | XJBN-00355 | Screw | |
| 409 | XJBN-00696 | Screw-Hex | |
| 410 | XJBN-00775 | Screw-Hex | |
| 412 | XJBN-00774 | Screw-Hex | |
| 467 | XJBN-00265 | Plug | |
| 491 | XJBN-00234 | PLUG | |
| 532 | XJBN-00770 | Piston-Servo | |
| 534 | XJBN-01124 | Stopper | |
| 535 | XJBN-00093 | Stopper | |
| 536 | XJBN-00768 | Cover-Servo | |
| 703 | XJBN-00915 | O-Ring | |
| 709 | XJBN-00387 | O-Ring | |
| 725 | XJBN-00045 | O-RING | |
| 732 | XJBN-00904 | O-Ring | |
| 752 | XJBN-00763 | Packing-Seat | |
| 789 | XJBN-00099 | Ring-Back Up | |
| 793 | XJBN-00761 | Ring-Back Up | |
| 806 | XJBN-00101 | Nut-Hex | |
| 807 | XJBN-00760 | Nut | |
| 885 | XJBN-00103 | Pin-Valve Plate | |
| 886 | XJBN-00054 | PIN-SPRING | |
| 888 | XJBN-00712 | Pin | |
| 953 | XJBN-00757 | Screw-Set | |
| 954 | XJBN-00392 | Screw-Set | |
| NS141 | XJBN-00067 | Block-Cylinder | |
| NS151 | XJBN-01032 | Piston | |
| NS152 | XJBN-01214 | Shoe | |
| NS212 | XJBN-00780 | Plate-Swash | |
| NS313 | XJBN-01035 | Plate-Valve | |
| NS314 | XJBN-01036 | Plate-Valve | |
| NS531 | XJBN-00771 | Pin-Tilting | |
| NS548 | XJBN-00360 | PIN-FEED BACK | |
| S | XJBN-01039 | Piston Sub Assy | |
| S | XJBN-01040 | Cylinder Assy-Rh | |
| S | XJBN-01041 | Cylinder Assy-Lh | |
| S | XJBN-00756 | Swash Plate Assy | |
| S | XJBN-00754 | Tilting Pin Assy | |
| S214 | XJBN-00071 | Bushing-Tilting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
