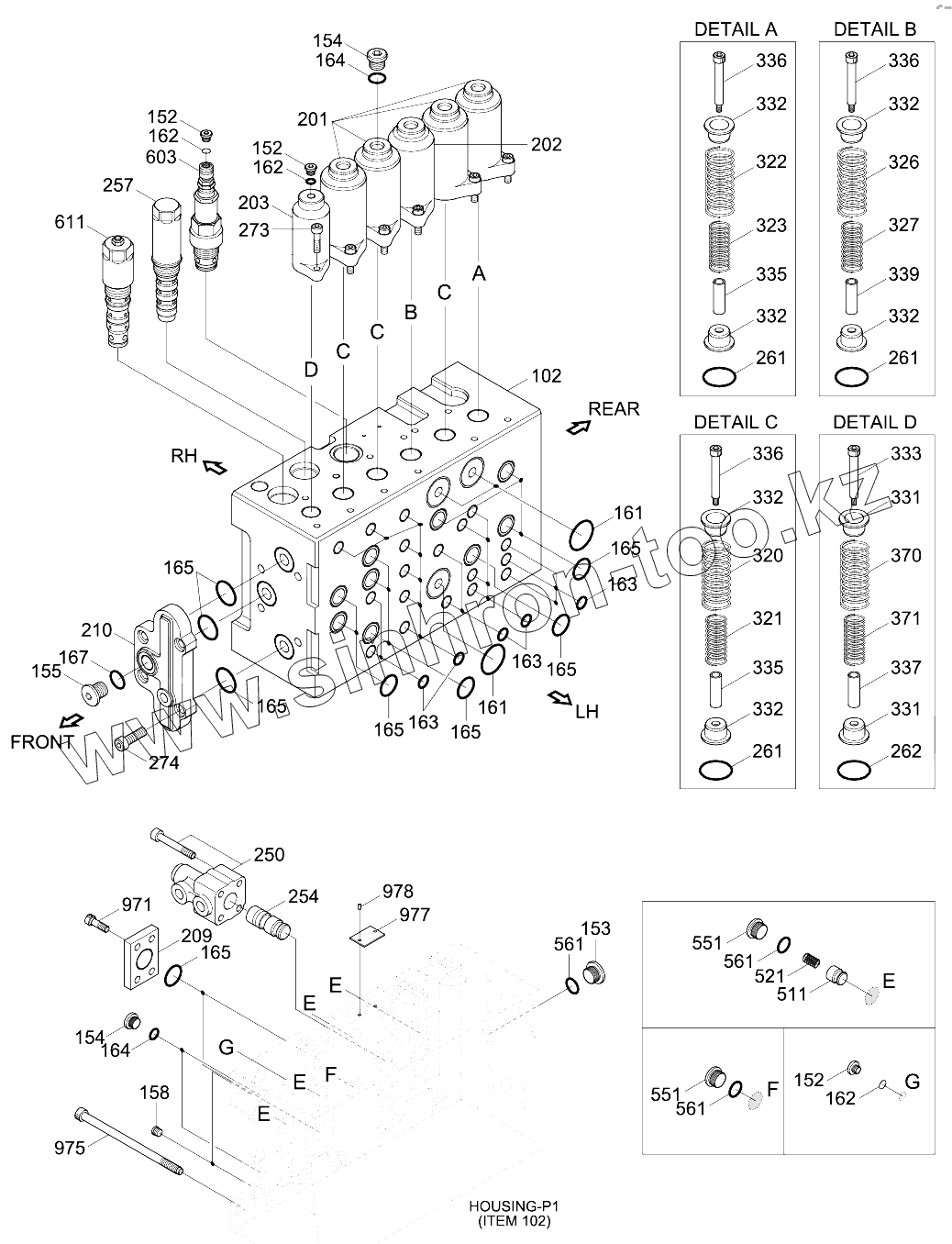

Каталог запасных частей к технике: Hyundai R210NLC-9. MAIN CONTROL VALVE (3/4)
152
152
152
153
154
154
155
158
161
161
162
162
162
163
163
163
164
164
165
165
165
165
165
165
165
167
201
202
203
209
210
250
254
257
261
261
261
262
273
274
320
321
322
323
326
327
331
331
332
332
332
332
332
332
333
335
335
336
336
336
337
339
370
371
511
521
551
551
561
561
561
603
611
971
975
977
978
N102
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| MainControlValve | MainControlValve | Main Control Valve | |
| 152 | XJBN-00749 | PLUG | |
| 153 | XJBN-00773 | PLUG | |
| 154 | XJBN-01356 | Plug | |
| 155 | XJBN-01219 | PLUG | |
| 158 | XJBN-00032 | PLUG | |
| 161 | XJBN-01221 | O-RING | |
| 162 | XJBN-00362 | O-RING | |
| 163 | XJBN-01222 | O-RING | |
| 164 | XJBN-01357 | O-RING | |
| 165 | XJBN-00403 | O-RING | |
| 167 | XJBN-01358 | O-RING | |
| 201 | XJBN-01224 | COVER-SPRING | |
| 202 | XJBN-01225 | COVER-SPRING | |
| 203 | XJBN-01226 | COVER-SPRING | |
| 209 | XJBN-00227 | FLANGE | |
| 210 | XJBN-01227 | PLATE | |
| 250 | XJBN-01489 | CONTROL VALVE-LOGIC | |
| 254 | XJBN-01490 | Poppet-Logic | |
| 257 | XJBN-01612 | Arm Regen Cut Sub | |
| 259 | XJBN-01504 | PLUG | |
| 261 | XJBN-01234 | O-RING | |
| 262 | XJBN-00212 | O-RING | |
| 273 | XJBN-00210 | SCREW-SOCKET | |
| 274 | XJBN-01235 | SCREW-SOCKET | |
| 320 | XJBN-00185 | SPRING | |
| 321 | XJBN-00180 | SPRING | |
| 322 | XJBN-01064 | SPRING | |
| 323 | XJBN-01065 | SPRING | |
| 326 | XJBN-00183 | SPRING | |
| 327 | XJBN-00184 | SPRING | |
| 331 | XJBN-00195 | SEAT | |
| 332 | XJBN-00194 | SEAT | |
| 333 | XJBN-01248 | BOLT-SPACER | |
| 335 | XJBN-00191 | STOPPER | |
| 336 | XJBN-00190 | BOLT | |
| 337 | XJBN-01249 | STOPPER | |
| 339 | XJBN-00187 | STOPPER | |
| 370 | XJBN-01250 | SPRING | |
| 371 | XJBN-01251 | SPRING | |
| 511 | XJBN-00172 | POPPET | |
| 521 | XJBN-00169 | SPRING | |
| 551 | XJBN-00167 | PLUG | |
| 561 | XJBN-00363 | O-RING | |
| 603 | XJBN-01261 | Port Relief Valve | |
| 611 | XJBN-01611 | Posi-Nega Control Vlv | |
| 971 | XJBN-01371 | SCREW | |
| 975 | XJBN-01264 | SCREW-SOCKET | |
| 977 | XJBN-00156 | NAME PLATE | |
| 978 | XJBN-00341 | PIN | |
| N102 | XJBN-01488 | HOUSING-P2 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
