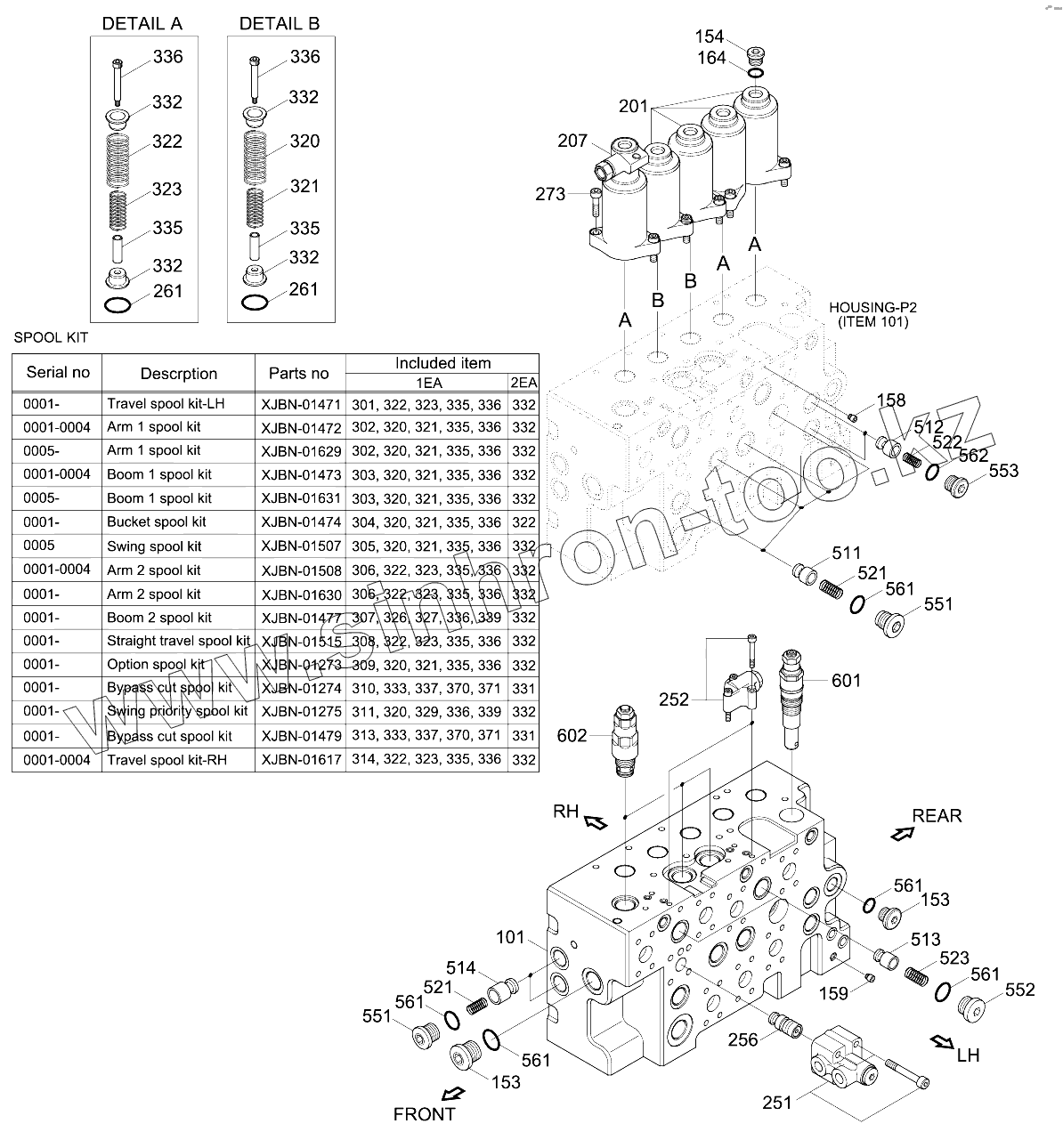

Каталог запасных частей к технике: Hyundai R210NLC-9. MAIN CONTROL VALVE (1/4)
101
153
153
154
158
159
164
201
207
251
252
256
261
261
273
301K
302K
303K
304K
305K
306K
307K
308K
309K
310K
311K
313K
314K
320
321
322
323
332
332
332
332
335
335
336
336
511
512
513
514
521
521
522
523
551
551
552
553
561
561
561
561
561
562
601
602
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 101 | XJBN-01468 | HOUSING-P1 | |
| 31Q6-16112 | 31Q6-16112 | Main Control Valve | |
| 153 | XJBN-00773 | PLUG | |
| 154 | XJBN-01356 | Plug | |
| 158 | XJBN-00032 | PLUG | |
| 159 | XJBN-00234 | PLUG | |
| 164 | XJBN-01357 | O-RING | |
| 201 | XJBN-01224 | COVER-SPRING | |
| 207 | XJBN-01502 | Cover Sub-Spring | |
| 251 | XJBN-01469 | CONTROL VALVE-LOGIC | |
| 252 | XJBN-01229 | SELECTOR VALVE-LOCK | |
| 256 | XJBN-01470 | POPPET-LOGIC | |
| 261 | XJBN-01234 | O-RING | |
| 273 | XJBN-00210 | SCREW-SOCKET | |
| 301K | XJBN-01471 | Travel Spool Kit | |
| 302K | XJBN-01472 | Arm 1 Spool Kit | |
| 303K | XJBN-01473 | Boom 1 Spool Kit | |
| 304K | XJBN-01474 | Bucket Spool Kit | |
| 305K | XJBN-01507 | Swing Spool Kit | |
| 306K | XJBN-01508 | Arm 2 Spool Kit | |
| 307K | XJBN-01477 | BOOM 2 SPOOL KIT | |
| 308K | XJBN-01515 | STRAIGNT TRAVEL SPL KIT | |
| 309K | XJBN-01273 | OPTION SPOOL KIT | |
| 310K | XJBN-01274 | BYPASS CUT SPOOL KIT | |
| 311K | XJBN-01275 | SWING PRIORITY SPOOL KIT | |
| 313K | XJBN-01479 | Bypass Cut Spool Kit | |
| 314K | XJBN-01617 | Travel Spool Kit-Rh | |
| 320 | XJBN-00185 | SPRING | |
| 321 | XJBN-00180 | SPRING | |
| 322 | XJBN-01064 | SPRING | |
| 323 | XJBN-01065 | SPRING | |
| 332 | XJBN-00194 | SEAT | |
| 335 | XJBN-00191 | STOPPER | |
| 336 | XJBN-00190 | BOLT | |
| 511 | XJBN-00172 | POPPET | |
| 512 | XJBN-01252 | POPPET | |
| 513 | XJBN-00170 | POPPET | |
| 514 | XJBN-01253 | POPPET | |
| 521 | XJBN-00169 | SPRING | |
| 522 | XJBN-01254 | SPRING | |
| 523 | XJBN-00168 | SPRING | |
| 551 | XJBN-00167 | PLUG | |
| 552 | XJBN-00166 | PLUG | |
| 553 | XJBN-01259 | PLUG | |
| 561 | XJBN-00363 | O-RING | |
| 562 | XJBN-01366 | O-Ring | |
| 601 | XJBN-01260 | Main Relief Valve | |
| 602 | XJBN-01506 | PORT RELIEF VALVE | |
| N101 | XJBN-01468 | HOUSING-P1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
