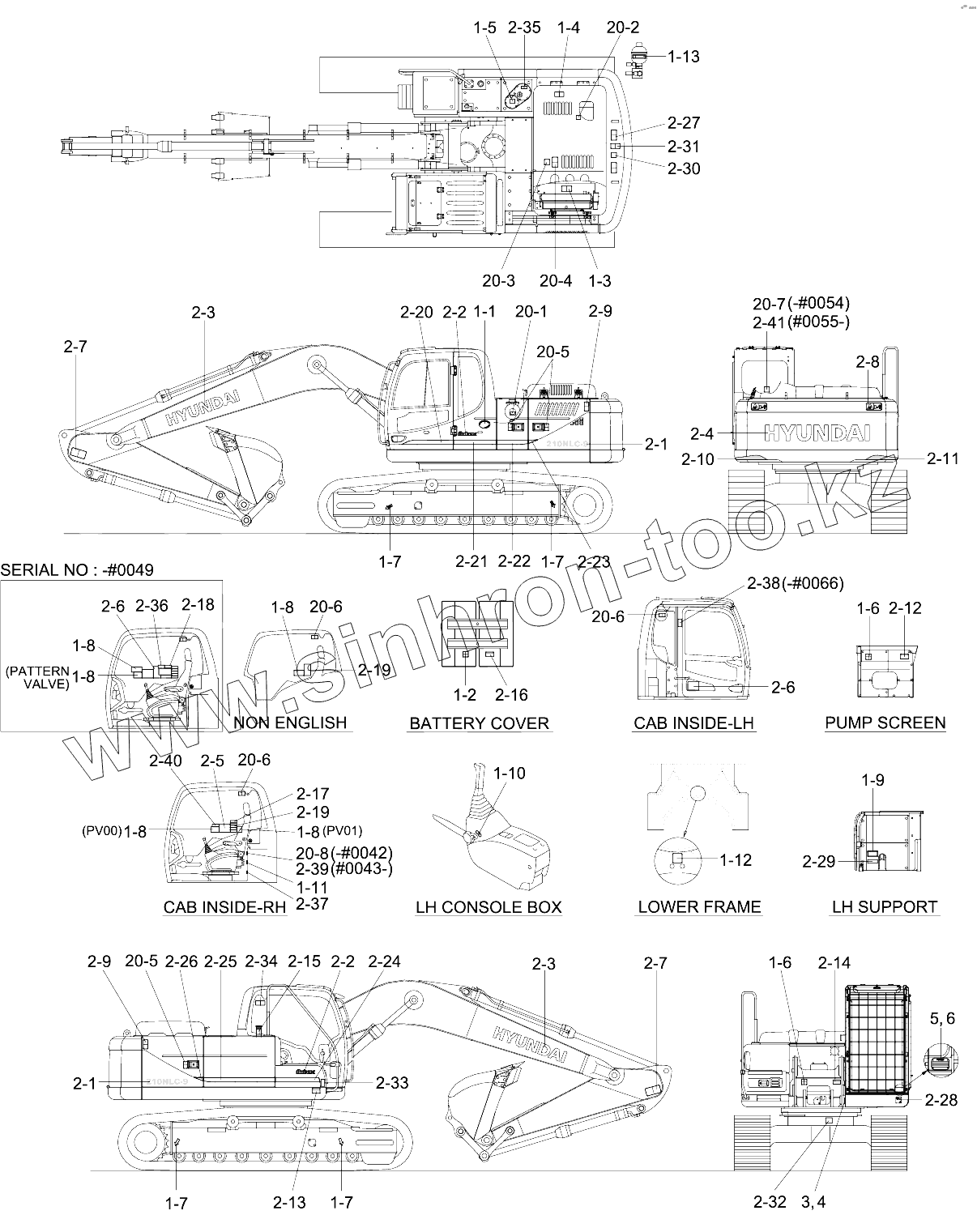

Каталог запасных частей к технике: Hyundai R210NLC-9. DECALS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
6
20-8
20-4
2-41
2-31
1-1
1-2
1-3
1-4
1-5
1-6
1-6
1-7
1-7
1-7
1-7
1-8
1-8
1-8
1-8
1-8
1-9
1-10
1-11
1-12
1-13
2-1
2-1
2-2
2-2
2-3
2-3
2-4
2-5
2-6
2-6
2-7
2-7
2-8
2-9
2-9
2-10
2-11
2-12
2-13
2-14
2-15
2-16
2-17
2-18
2-19
2-19
2-20
2-21
2-22
2-23
2-24
2-25
2-26
2-27
2-28
2-29
2-30
2-32
2-33
2-34
2-35
2-36
2-37
2-38
2-39
2-40
3
4
5
20-1
20-2
20-3
20-5
20-5
20-6
20-6
20-6
20-7
Позиция на иллюстрации Заводской номер детали Название детали
6 91EK-12010 RIVET
20-8 91N6-07280 Decal-Hammer
20-4 91N6-07131 DECAL-NO STEP
2-41 91Q6-07260 DECAL-SAFETY RR WIN
2-31 91N6-03140 DECAL-FALLING
91N6-08200 91N6-08200 DECAL-CNTL IDEOGRAM
91N6-07500 91N6-07500 Decal-Cntl Ideogram
91N6-08500 91N6-08500 Decal-Cntl Ideogram
91N6-07400 91N6-07400 DECAL-M/CNTL CAB
91Q6-10303 91Q6-10303 Decal Kit(B)
91Q6-10305 91Q6-10305 Decal Kit(B)
91Q6-10306 91Q6-10306 Decal Kit(B)
91Q6-05111 91Q6-05111 Decal-Lifting Chart
91Q6-05120 91Q6-05120 Decal-Lifting Chart
91Q6-05121 91Q6-05121 Lifting Chart
91Q6-05130 91Q6-05130 Decal-Lifting Chart
91Q6-05131 91Q6-05131 Lifting Chart
91Q6-05140 91Q6-05140 Decal-Lifting Chart
91Q6-05141 91Q6-05141 Lifting Chart
91Q6-05150 91Q6-05150 Decal-Lifting Chart
91Q6-05151 91Q6-05151 Lifting Chart
91Q6-05160 91Q6-05160 Decal-Lifting Chart
91Q6-05161 91Q6-05161 Lifting Chart
91Q6-13711 91Q6-13711 Decal-S/Instruction
91E1-14130 91E1-14130 Pin Plate
91Q6-00093 91Q6-00093 Decal Kit-A/S
1 91Q9-00101 DECAL KIT
1-1 91E1-27110 DECAL-L/EMISSION ENG
1-2 91N6-02120 DECAL-BATT ACCIDENT
1-3 91N6-01121 DECAL-RADIATOR CAP
1-4 91N6-03140 DECAL-FALLING
1-5 91N6-03111 DECAL-HYD OIL LUBRICAT
1-6 91N6-03130 DECAL-H/PRESS HOSE
1-7 91N6-05110 DECAL-SLING IDEOGRAM
1-8 91N6-07201 DECAL-CNTL IDEOGRAM
1-9 91N6-07410 DECAL-M/CNTL PATTERN
1-10 92N6-07310 DECAL-SAFETY LEVER
1-11 91N6-07272 DECAL-AIRCON FILTER
1-12 91N6-05120 DECAL-TIE
1-13 91N6-03200 DECAL-ACCUMULATOR
2 91Q6-10302 Decal Kit
2-1 91Q6-10030 Decal-Model Name
2-2 91Q6-17112 DECAL-ROBEX LOGO
2-3 91N6-23140 Decal-Hyundai Logo
2-4 91N6-26170 DECAL-HYUNDAI LOGO
2-5 91Q6-05110 Decal-Lifting Chart
2-6 91Q6-13710 Decal-Ser Instruction
2-7 91N6-06110 Decal-Keep Clear-Att
2-8 91Q6-07010 DECAL-KEEP CLEAR,RR
2-9 91Q6-07021 DECAL-KEEP CLEAR,SIDE
2-10 91Q6-07031 DECAL-REFLECTING,LH
2-11 91Q6-07040 DECAL-REFLECTING,RH
2-12 91N6-03102 DECAL-HYD OIL LEVEL
2-13 91N6-07141 DECAL-TRANSPORTING
2-14 91N6-03121 DECAL-R/GEAR GREASE
2-15 91M8-01140 DECAL-FUELING
2-16 91LB-01350 DECAL-ELECTRIC WELDING
2-17 91Q6-07330 DECAL-LOCKING CLAMP
2-18 91N6-07390 Decal-Turbocharger
2-19 91Q6-07371 DECAL-CABIN RH PILLAR
2-20 91Q6-07510 DECAL-BAND,CAB FR
2-21 91Q6-07520 DECAL-BAND,CAB RR
2-22 91Q6-07530 Decal-Band,Lh Front
2-23 91Q6-07540 Decal-Band,Lh Rear
2-24 91Q4-07610 Decal-Band,Tool Box
2-25 91Q6-07620 Decal-Band,Tank
2-26 91Q6-07630 Decal-Band,Rh
2-27 91N6-04132 DECAL-LIFTING EYE
2-28 91N6-22120 Decal-Noise Level/Lwa
2-29 91Q6-03210 DECAL-RCV L/PATTERN
2-30 91N6-07131 DECAL-NO STEP
2-32 91Q6-03220 Decal-Swing Bearing
2-33 91M9-02110 DECAL-BATTERY POSITION
2-34 91Q4-02200 DECAL-BEACON LAMP
2-35 91Q6-03230 DECAL-FUEL SHUT OFF
2-36 91Q4-07180 Decal-Water Separator
2-37 91Q4-15860 DECAL-MCU CONNECTOR
2-38 91Q6-01281 Decal-Rops Cabin
2-39 91N6-07280 Decal-Hammer
2-40 91Q4-07920 DECAL-CAUTION(W/S,T/C)
3 91E1-14110 Decal-Pin Plate
4 91EK-12010 RIVET
5 91N6-01280 FOPS FOG PLATE
20 91Q6-00092 Decal Kit-A/S
20-1 91N6-01102 DECAL-A/CLEANER FILTER
20-2 91N6-01111 DECAL-TURBO COVER
20-3 91N6-07121 DECAL-SHEARING
20-5 91N6-07112 DECAL-STAY FIX
20-6 91Q6-07250 DECAL-SAFETY FR WIN
20-7 91N6-07261 Decal-Alternate Exit
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
