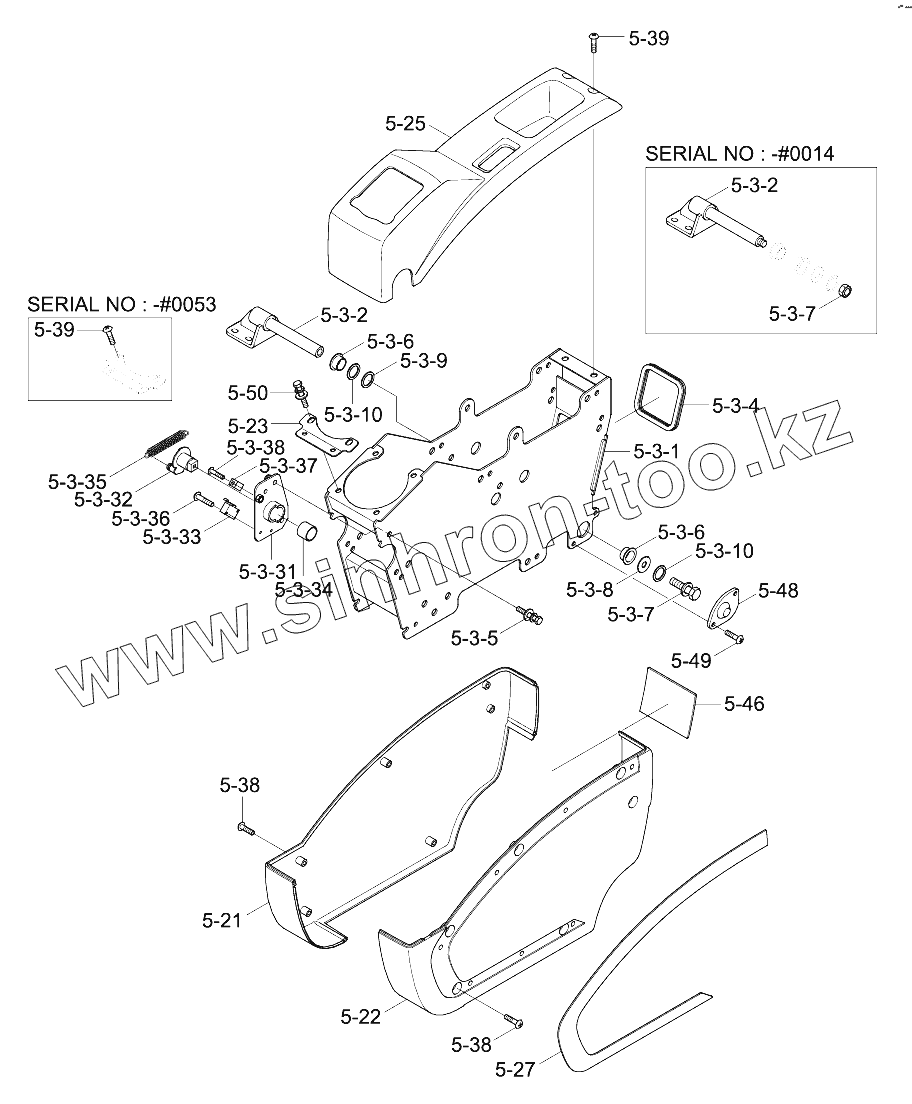

Каталог запасных частей к технике: Hyundai R210NLC-9. CONSOLE BOX 1 (LH)
5-50
5-3-1
5-3-2
5-3-2
5-3-4
5-3-5
5-3-6
5-3-6
5-3-7
5-3-7
5-3-8
5-3-9
5-3-10
5-3-10
5-3-31
5-3-32
5-3-33
5-3-34
5-3-35
5-3-36
5-3-37
5-3-38
5-21
5-22
5-23
5-25
5-27
5-38
5-38
5-39
5-39
5-46
5-48
5-49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 5-50 | S035-061526 | BOLT-W/WASHER | |
| 71Q6-23670 | 71Q6-23670 | Console Frame Assy-Lh | |
| 71Q6-23100 | 71Q6-23100 | Console Frame Assy-Lh | |
| 71Q6-23680 | 71Q6-23680 | Console Frame Assy-Lh | |
| 71Q6-23110 | 71Q6-23110 | Frame Wa-Console | |
| 71Q6-23720 | 71Q6-23720 | Bracket Wa-Console | |
| S037-102016 | S037-102016 | BOLT-W/WASHER | |
| 71Q6-23700 | 71Q6-23700 | Shim(20t)-Round | |
| 5 | BottomPlateSubAssy | Bottom Plate Sub Assy | |
| 5-3 | 71Q6-21001 | Console Frame Assy-Lh | |
| 5-3-1 | 71Q4-21341 | Frame Wa-Console | |
| 5-3-2 | 71Q6-21311 | Bracket Wa-Console | |
| 5-3-3 | 71Q6-20920 | BRACKET ASSY-SAFETY | |
| 5-3-4 | 71Q6-21420 | Grommet | |
| 5-3-5 | S035-061526 | BOLT-W/WASHER | |
| 5-3-6 | S731-020020 | BUSHING-DU | |
| 5-3-7 | S275-12000B | Nut-Self Locking | |
| 5-3-8 | 71Q6-22690 | Shim-Round | |
| 5-3-9 | 71Q6-22631 | Shim(10t)-Console | |
| 5-3-10 | 71Q6-23080 | Shim(10t)-Console | |
| 5-3-31 | 71Q6-20930 | BRACKET-LOWER | |
| 5-3-32 | 71Q6-20960 | BRACKET-UPPER | |
| 5-3-33 | 21N8-20300 | SWITCH-MICRO | |
| 5-3-34 | S731-020010 | Bushing-Du | |
| 5-3-35 | 71N6-21610 | SPRING | |
| 5-3-36 | S161-030156 | Screw-Cross R/Round | |
| 5-3-37 | 71Q6-22840 | PLATE-STOPPER | |
| 5-3-38 | S131-051526 | SCREW-W/WASHER | |
| 5-21 | 71Q6-22050GG | Console Cover-Low, Rh | |
| 5-22 | 71Q6-22010GG | Console Cover-Low, Lh | |
| 5-23 | 71Q6-21610 | BRACKET-CONSOLE UP | |
| 5-25 | 71Q6-22060GG | CONSOLE COVER UP-LH | |
| 5-27 | 71Q6-22031 | CONSOLE COVER-TRIM | |
| 5-38 | S002-06010B | SCREW-TRUS HEAD | |
| 5-39 | S002-06015B | SCREW-TRUS HEAD | |
| 5-46 | 71Q6-22670 | Protector | |
| 5-48 | 71Q6-23130GG | Cap-Console | |
| 5-49 | S002-05015B | SCREW-TRUS HEAD |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
