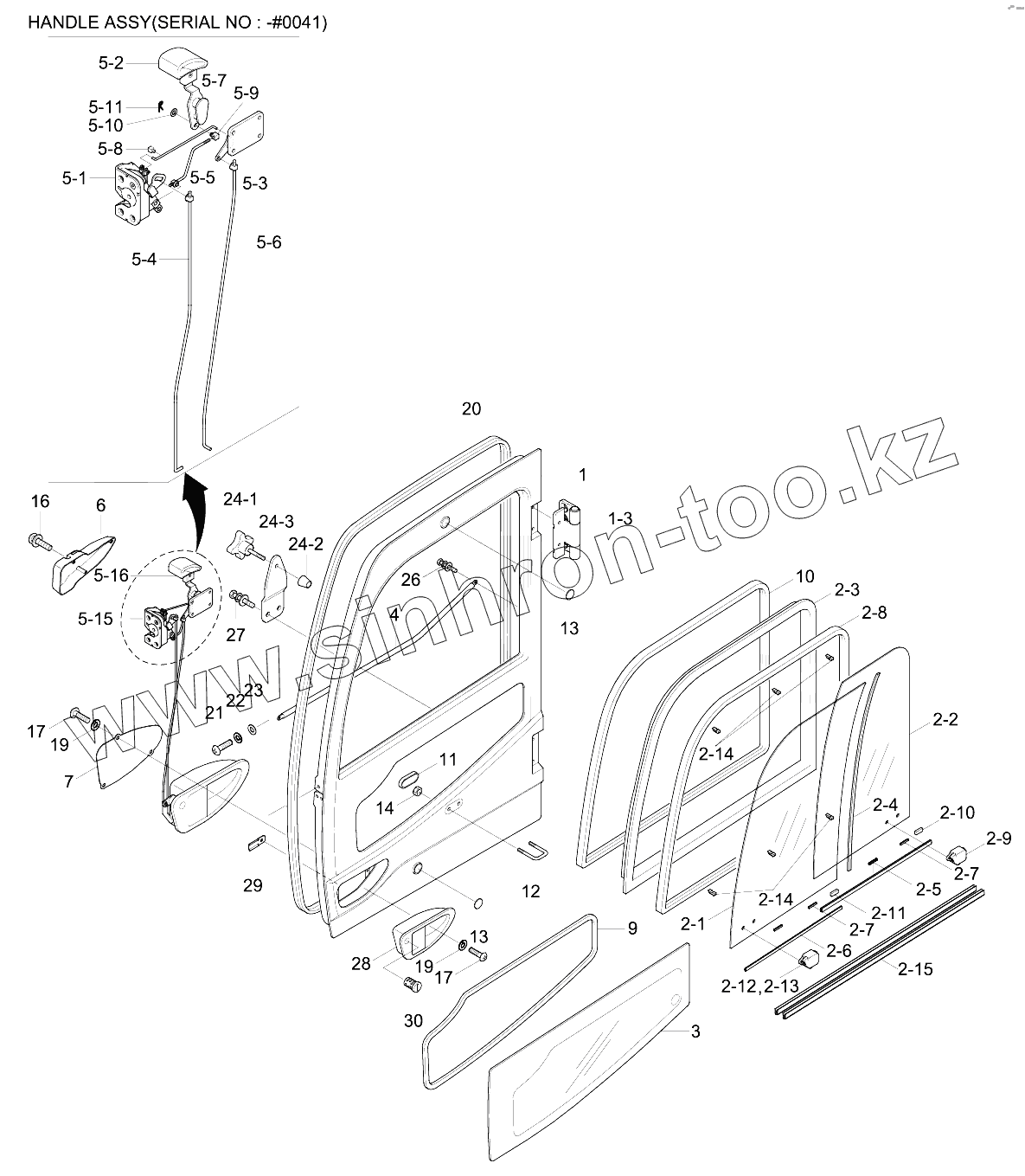

Каталог запасных частей к технике: Hyundai R210NLC-9. CAB ASSY (4/4, DOOR)
1
1-3
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-7
2-8
2-9
2-10
2-11
2-12
2-13
2-14
2-14
3
4
5
5
5-1
5-2
5-3
5-4
5-5
5-6
5-7
5-8
5-9
5-10
5-11
5-15
5-16
6
7
9
10
11
12
13
13
14
16
17
17
19
19
20
21
22
23
24-1
24-2
24-3
26
27
28
29
30
N2-15
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 71Q6-02002 | 71Q6-02002 | SIDE DOOR ASSY | |
| 71Q6-02013 | 71Q6-02013 | Side Door Wa | |
| 71Q6-03231 | 71Q6-03231 | GLASS-FRONT | |
| 71Q6-03241 | 71Q6-03241 | GLASS-REAR | |
| 71Q6-03251 | 71Q6-03251 | FRAME | |
| 71Q6-03271 | 71Q6-03271 | RAIL | |
| 71Q6-03281 | 71Q6-03281 | RAIL | |
| 71Q6-03291 | 71Q6-03291 | RAIL | |
| 71Q6-02031 | 71Q6-02031 | GLASS-DOOR | |
| 71Q6-02131 | 71Q6-02131 | Latch-Door | |
| 72Q6-02121 | 72Q6-02121 | HANDLE ASSY | |
| 72Q6-02131 | 72Q6-02131 | LATCH ASSY-INNER | |
| S778-021500 | S778-021500 | WEATHER STRIP | |
| S778-021900 | S778-021900 | WEATHER STRIP | |
| 71Q6-02082 | 71Q6-02082 | STOPPER ASSY | |
| 71Q6-02262 | 71Q6-02262 | BOLT-KNOB | |
| 71Q6-02281 | 71Q6-02281 | PLATE | |
| 72Q6-02110 | 72Q6-02110 | HANDLE-OUTER | |
| CabAssy | CabAssy | Cab Assy | |
| 71Q6-02001 | 71Q6-02001 | Side Door Assy | |
| 1 | 71Q6-02012 | SIDE DOOR WA | |
| 1-3 | 71Q6-02102 | HINGE | |
| 2 | 71Q6-02020 | SASH ASSY | |
| 2-1 | 71Q6-03230 | Glass | |
| 2-2 | 71Q6-03240 | Glass | |
| 2-3 | 71Q6-03250 | Frame | |
| 2-4 | 71Q6-03260 | MOHAIR | |
| 2-5 | 71Q6-03270 | Rail | |
| 2-6 | 71Q6-03280 | Rail | |
| 2-7 | 71Q6-03290 | Rail | |
| 2-8 | 71Q6-03300 | SEAL | |
| 2-9 | 71Q6-03310 | LOCK ASSY | |
| 2-10 | 71Q6-03320 | LOCK | |
| 2-11 | 71Q6-03330 | LOCK | |
| 2-12 | 71Q6-03340 | LOCK | |
| 2-13 | 71Q6-03350 | CATCH | |
| 2-14 | 71Q6-03360 | RUBBER | |
| 3 | 71Q6-02030 | Glass-Door | |
| 4 | 71Q6-02242 | HANDRAIL | |
| 5 | 71Q6-02121 | Handle Assy | |
| 5 | 72Q6-02120 | Handle Assy | |
| 5-1 | 71Q6-02130 | Catch | |
| 5-2 | 71Q6-03150 | Knob-Inner Handle | |
| 5-3 | 71Q6-02150 | Handle-Inner | |
| 5-4 | 71Q6-02170 | Rod | |
| 5-5 | 71Q6-02180 | Rod | |
| 5-6 | 71Q6-02160 | Rod | |
| 5-7 | 71Q6-02190 | Rod | |
| 5-8 | 71Q6-02250 | Holder | |
| 5-9 | MH800050 | Pin-Joint | |
| 5-10 | MB700270 | Washer-Plate | |
| 5-11 | MH650620 | Pin-R | |
| 5-15 | 72Q6-02130 | Latch Assy-Inner | |
| 5-16 | 72Q6-02140 | LEVER ASSY | |
| 6 | 71Q6-02140 | COVER | |
| 7 | 71Q6-02061 | COVER | |
| 9 | 71Q6-02370 | Weather Strip | |
| 10 | 71Q6-02380 | Weather Strip | |
| 11 | 71M8-00680 | RUBBER-CAP | |
| 12 | 71N6-03650 | STRIKER | |
| 13 | 17E1-5146 | BUMPER-DOOR | |
| 14 | S205-10100B | NUT-HEX | |
| 16 | S131-043046 | SCREW-W/WASHER | |
| 17 | S151-050156 | SCREW-TAPPING | |
| 19 | S411-050006 | WASHER-SPRING | |
| 20 | S776-050300 | WEATHER STRIP | |
| 21 | S161-060156 | SCREW-CROSS R/ROUND | |
| 22 | S411-060006 | WASHER-SPRING | |
| 23 | S403-062006 | Washer-Plain | |
| 24 | 71Q6-02081 | Stopper Assy | |
| 24-1 | 71Q6-02261 | Bolt-Knob | |
| 24-2 | 71Q6-02290 | RUBBER-BUMPER | |
| 24-3 | 71Q6-02280 | Plate | |
| 26 | S037-082526 | BOLT-W/WASHER | |
| 27 | S141-060166 | SCREW-FLAT HD | |
| 28 | 71Q6-02110 | Latch Assy | |
| 29 | 71Q6-00590 | Plate-Assit | |
| 30 | 71Q6-02050 | ROTOR | |
| N2-15 | 71Q6-03370 | FRAME-LOWER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
