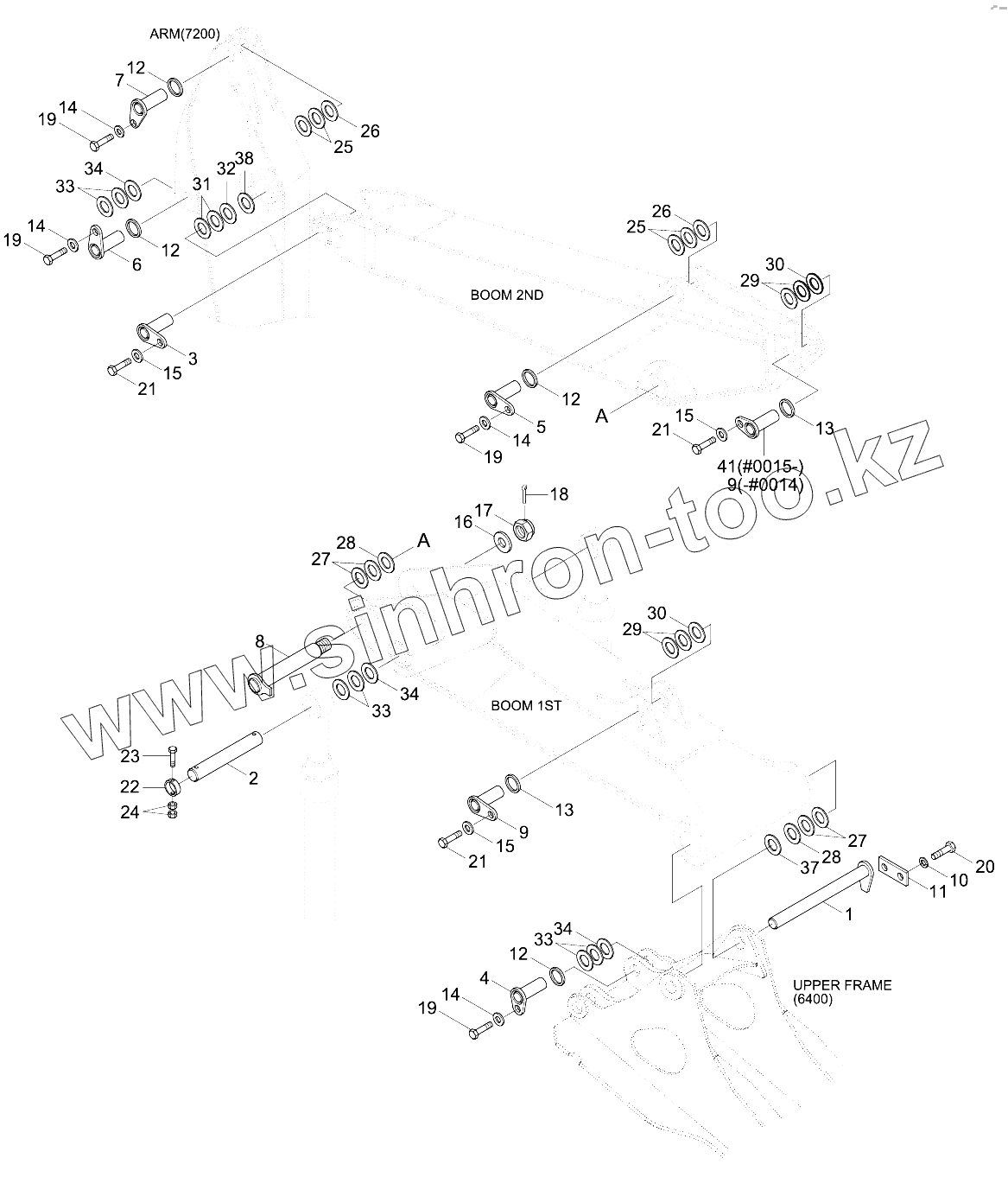

Каталог запасных частей к технике: Hyundai R210NLC-9. BOOM MOUNTING (ADJUST BOOM)
1
2
3
4
5
6
7
8
9
9
10
11
12
12
12
12
13
13
14
14
14
14
15
15
15
16
17
18
19
19
19
19
20
21
21
21
22
23
24
25
25
26
26
27
27
28
28
29
29
30
30
31
32
33
33
33
34
34
34
37
38
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| S991-080140 | S991-080140 | Shim-Polymer | |
| 61Q6-00031 | 61Q6-00031 | Pin Assy | |
| S992-090170 | S992-090170 | Shim-Polymer | |
| S992-090200 | S992-090200 | Shim-Polymer | |
| S994-090170 | S994-090170 | Shim-Polymer | |
| S994-090200 | S994-090200 | Shim-Polymer | |
| S993-080140 | S993-080140 | Shim-Polymer | |
| S991-090170 | S991-090170 | SHIM-POLYMER | |
| S993-090170 | S993-090170 | SHIM-POLYMER | |
| S991-100180 | S991-100180 | SHIM-POLYMER | |
| S993-100180 | S993-100180 | SHIM-POLYMER | |
| S991-090200 | S991-090200 | Shim-Polymer | |
| S993-090200 | S993-090200 | Shim-Polymer | |
| S991-080150 | S991-080150 | Shim-Polymer | |
| S993-080150 | S993-080150 | Shim-Polymer | |
| 61Q8-00160 | 61Q8-00160 | SPACER-PIN | |
| 61Q8-00140 | 61Q8-00140 | Spacer-Pin | |
| 1 | 61Q6-00030 | Pin Assy | |
| 2 | 61N6-11151 | Pin Assy | |
| 3 | 61Q6-01730 | Pin Assy | |
| 4 | 61Q6-01600GG | Pin | |
| 5 | 61Q6-01620 | Pin Assy | |
| 6 | 61Q6-01610 | Pin Assy | |
| 7 | 61Q6-01620 | Pin Assy | |
| 8 | 61Q6-00040 | Pin Assy | |
| 9 | 61Q6-01850 | Pin Assy | |
| 10 | S411-160006 | WASHER-SPRING | |
| 11 | 61Q8-00310 | PLATE | |
| 12 | 61N8-00160 | Spacer-Pin | |
| 13 | 61N8-00180 | Spacer-Pin | |
| 14 | 61N8-00310-DA | Washer-Hardened | |
| 15 | 61N8-00320-DA | WASHER-HARDENED | |
| 16 | 62E1-1107-DA | Washer-Hardened | |
| 17 | 62E1-1108-DA | Nut-Slotted | |
| 18 | S461-800902 | Pin-Split | |
| 19 | S017-16025D | Bolt-Hex | |
| 20 | S017-16040D | BOLT-HEX | |
| 21 | S017-20030D | BOLT-HEX | |
| 22 | 61Q6-00320 | Pin-Stopper | |
| 23 | S017-161606 | Bolt-Hex | |
| 24 | S205-16100D | Nut-Hex | |
| 25 | 61Q6-08050 | Shim | |
| 26 | 61Q6-08040 | Shim | |
| 27 | 61Q6-08310 | Shim | |
| 28 | 61Q6-08300 | Shim | |
| 29 | 61Q6-08470 | Shim | |
| 30 | 61Q6-08460 | Shim | |
| 31 | 61Q6-08290 | Shim | |
| 32 | 61Q6-08280 | Shim | |
| 33 | 61Q6-08030 | Shim | |
| 34 | 61Q6-08020 | Shim | |
| 37 | 61Q6-08310A | Shim | |
| 38 | 61Q6-08290A | Shim | |
| 39 | 61Q6-08300A | Shim | |
| 40 | 61Q6-08280A | Shim | |
| 41 | 61Q6-01900 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
