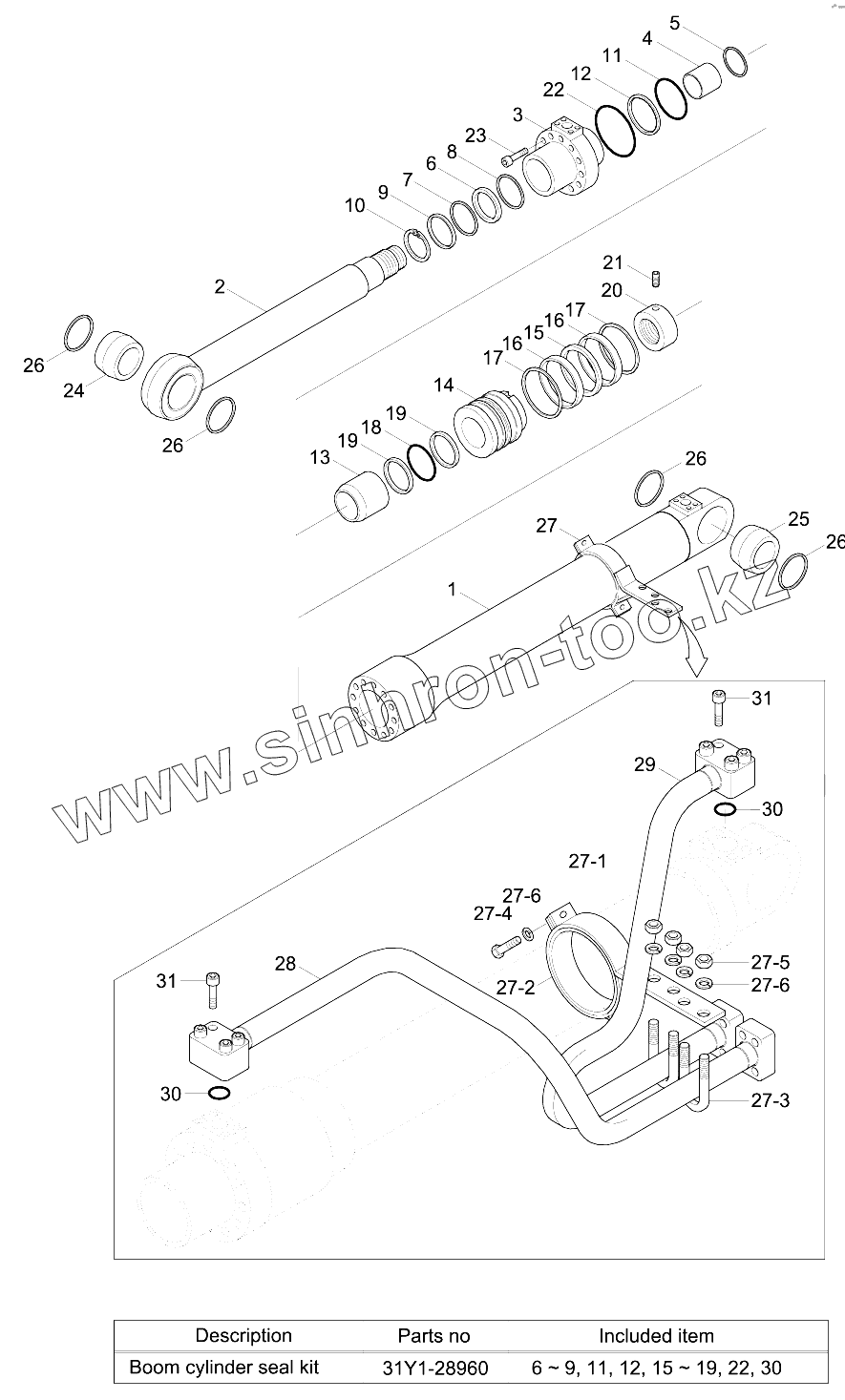

Каталог запасных частей к технике: Hyundai R210NLC-9. BOOM CYLINDER
1
2
3
4
5
10
13
14
20
21
23
24
25
26
26
26
26
27
27-1
27-2
27-3
27-4
27-5
27-6
27-6
28
29
31
31
K
K6
K6
K7
K8
K9
K9
K11
K11
K12
K12
K15
K15
K16
K16
K17
K17
K18
K19
K19
K19
K22
K22
K30
K30
K30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q6-53120 | 31Q6-53120 | Boom Cylinder Assy-Rh | |
| 61Q6-97211 | 61Q6-97211 | Bushing-Pin | |
| 61QH-73010 | 61QH-73010 | Bushing | |
| 61Q6-97221 | 61Q6-97221 | Bushing-Pin | |
| 61QH-73020 | 61QH-73020 | Bushing | |
| 31Y1-36270 | 31Y1-36270 | Pipe Assy-R,Rh | |
| 31Y1-36290 | 31Y1-36290 | Pipe Assy-B,Rh | |
| 31Q6-53110 | 31Q6-53110 | Boom Cylinder Assy-Lh | |
| 31Y1-36320 | 31Y1-36320 | Boom Cyl Sub Assy | |
| 1 | 31Y1-36190 | Tube Assy | |
| 2 | 31Y1-28870 | Rod Assy | |
| 3 | 31Y1-36230 | Gland | |
| 4 | S732-085030 | Bushing-Dd2 | |
| 5 | Y191-092000 | Ring-Snap | |
| 10 | Y190-099000 | Ring-Snap | |
| 13 | 31YC-26060 | Ring-Cushion | |
| 14 | 31Y1-28940 | Piston | |
| 20 | 31YC-68030 | Nut-Lock | |
| 21 | S114-080144 | Screw-Set | |
| 23 | S109-160754 | Bolt-Socket | |
| 24 | 61Q6-97210 | Bushing-Pin | |
| 25 | 61Q6-97220 | Bushing-Pin | |
| 26 | Y020-080000 | Seal-Dust,Dli,Kpu | |
| 27 | 31Y1-36240 | Band Assy | |
| 27-1 | 31Y1-29240 | Band Sub Assy | |
| 27-2 | 31YC-31480 | Band | |
| 27-3 | S070-052738 | U-Bolt | |
| 27-4 | S011-100352 | BOLT-HEX | |
| 27-5 | S205-101002 | NUT-HEX | |
| 27-6 | S411-100002 | WASHER-SPRING | |
| 28 | 31Y1-36260 | Pipe Assy-R,Lh | |
| 29 | 31Y1-36280 | Pipe Assy-B,Lh | |
| 31 | S107-100454 | Bolt-Socket | |
| K | 31Y1-28960 | Seal Kit | |
| K6 | Y220-085013 | Seal-Rod | |
| K7 | Y180-085020 | Ring-Back Up | |
| K8 | Y240-085012 | Ring-Buffer | |
| K9 | Y110-085011 | Wiper-Dust | |
| K11 | S632-115004 | O-Ring | |
| K12 | S642-115003 | Ring-Back Up | |
| K15 | Y420-120002 | Seal-Piston | |
| K16 | Y310-120203 | Ring-Wear | |
| K17 | Y440-120002 | Ring-Dust | |
| K18 | S632-060004 | O-Ring | |
| K19 | S642-060003 | Ring-Back Up | |
| K22 | S632-120004 | O-RING | |
| K30 | Y171-019004 | O-RING |
