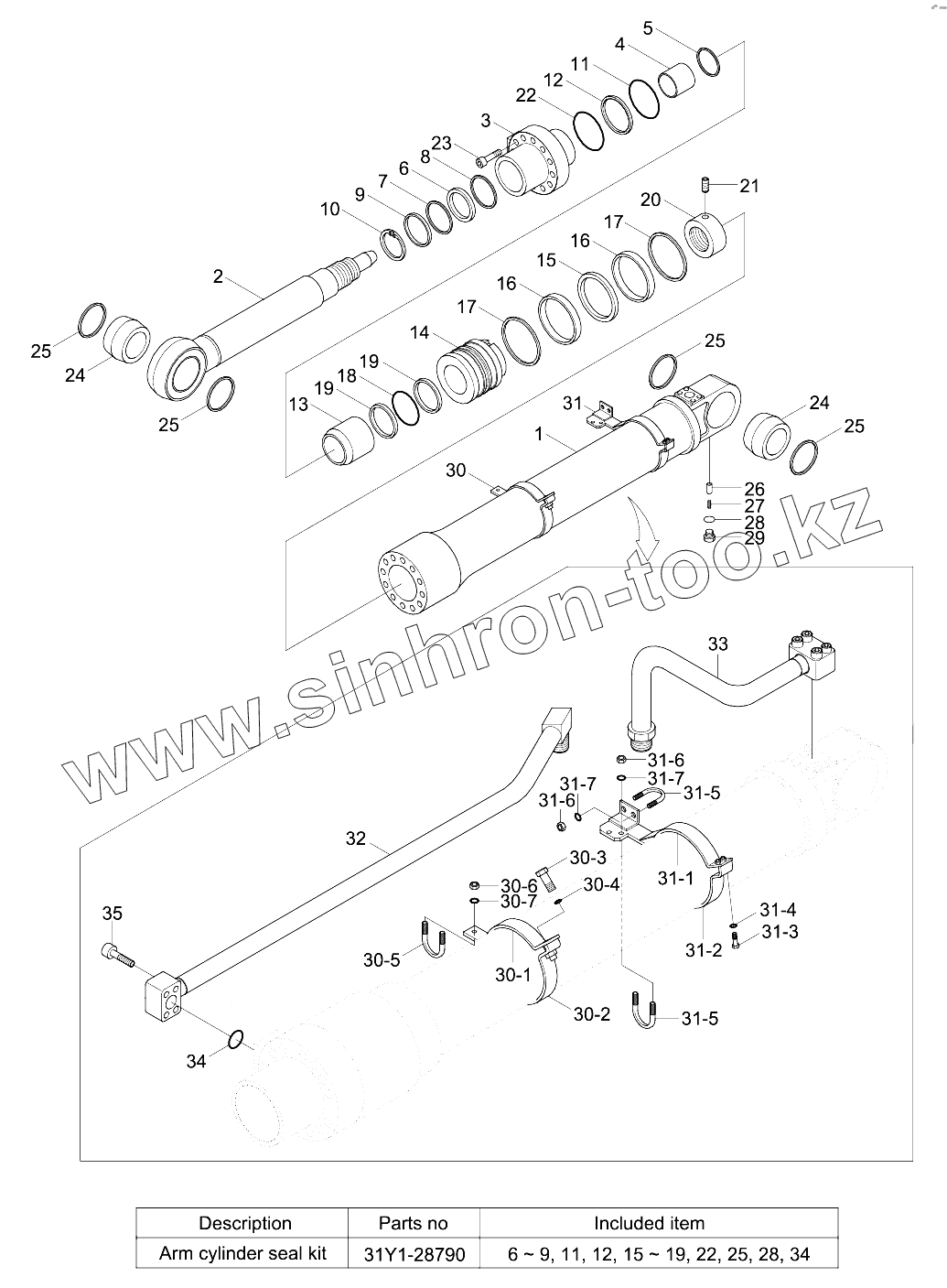

Каталог запасных частей к технике: Hyundai R210NLC-9. ARM CYLINDER (ADJUST BOOM)
31-3
31-4
31-5
31-5
31-6
31-6
31-7
31-7
1
2
3
4
5
10
13
14
20
21
23
24
24
26
27
29
30
30-1
30-2
30-3
30-4
30-5
30-6
30-7
31
31-1
31-2
32
33
35
K
K6
K6
K7
K8
K9
K9
K11
K11
K12
K12
K15
K15
K16
K16
K17
K17
K18
K19
K19
K19
K22
K22
K25
K25
K25
K25
K25
K28
K28
K34
K34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31-3 | S015-120452 | BOLT-HEX | |
| 31-4 | S411-120002 | WASHER-SPRING | |
| 31-5 | S071-023430 | U-Bolt | |
| 31-6 | S201-101002 | Nut-Hexagon Head | |
| 31-7 | S411-100002 | WASHER-SPRING | |
| 61QH-73030 | 61QH-73030 | Bushing | |
| 31Q6-53210 | 31Q6-53210 | Arm Cylinder Assy | |
| 31Y1-28631 | 31Y1-28631 | Arm Cyl Sub Assy | |
| 1 | 31Y1-28640 | Tube Assy | |
| 2 | 31Y1-28700 | Rod Assy | |
| 3 | 31Y1-28741 | Gland | |
| 4 | S732-100040 | BUSHING-DD2 | |
| 5 | Y191-107000 | RING-SNAP | |
| 10 | Y190-114000 | RING-SNAP | |
| 13 | 31YC-28030 | Ring-Cushion | |
| 14 | 31Y1-28771 | Piston | |
| 20 | 31YC-68050 | NUT-LOCK | |
| 21 | S114-100164 | SCREW-SET | |
| 23 | S109-180854 | BOLT-SOCKET | |
| 24 | 61Q6-97231 | Bushing | |
| 26 | 31YC-2A070 | Valve-Check | |
| 27 | 31YC-99071 | SPRING-COIL | |
| 29 | P220-110103 | PLUG-HEX | |
| 30 | 31Y1-29170 | Band Assy-R | |
| 30-1 | 31Y1-29180 | Band Sub Assy | |
| 30-2 | 31Y1-29190 | Band Sub Assy | |
| 30-3 | S015-120452 | BOLT-HEX | |
| 30-4 | S411-120002 | WASHER-SPRING | |
| 30-5 | S071-023430 | U-Bolt | |
| 30-6 | S201-101002 | Nut-Hexagon Head | |
| 30-7 | S411-100002 | WASHER-SPRING | |
| 31 | 31Y1-39120 | Band Assy-B | |
| 31-1 | 31Y1-39130 | Band Sub Assy | |
| 31-2 | 31YC-32100 | Band | |
| 32 | 31Y1-39090 | Pipe Assy-R | |
| 33 | 31Y1-39100 | Pipe Assy-B | |
| 35 | S107-120554 | BOLT-SOCKET | |
| K | 31Y1-28790 | Seal Kit | |
| K6 | Y220-100013 | SEAL-ROD | |
| K7 | Y180-100020 | RING-BACK UP | |
| K8 | Y240-100012 | RING-BUFFER | |
| K9 | Y110-100011 | WIPER-DUST | |
| K11 | S631-130004 | O-RING | |
| K12 | 31YC-CP130 | Ring-Back Up | |
| K15 | Y420-140002 | Seal-Piston | |
| K16 | Y310-140103 | RING-WEAR | |
| K17 | Y440-140202 | Ring-Dust | |
| K18 | S632-075004 | O-RING | |
| K19 | S642-075003 | RING-BACK UP | |
| K22 | S632-140004 | O-RING | |
| K25 | Y020-080000 | Seal-Dust,Dli,Kpu | |
| K28 | S631-014004 | O-RING | |
| K34 | Y171-024004 | O-RING |
