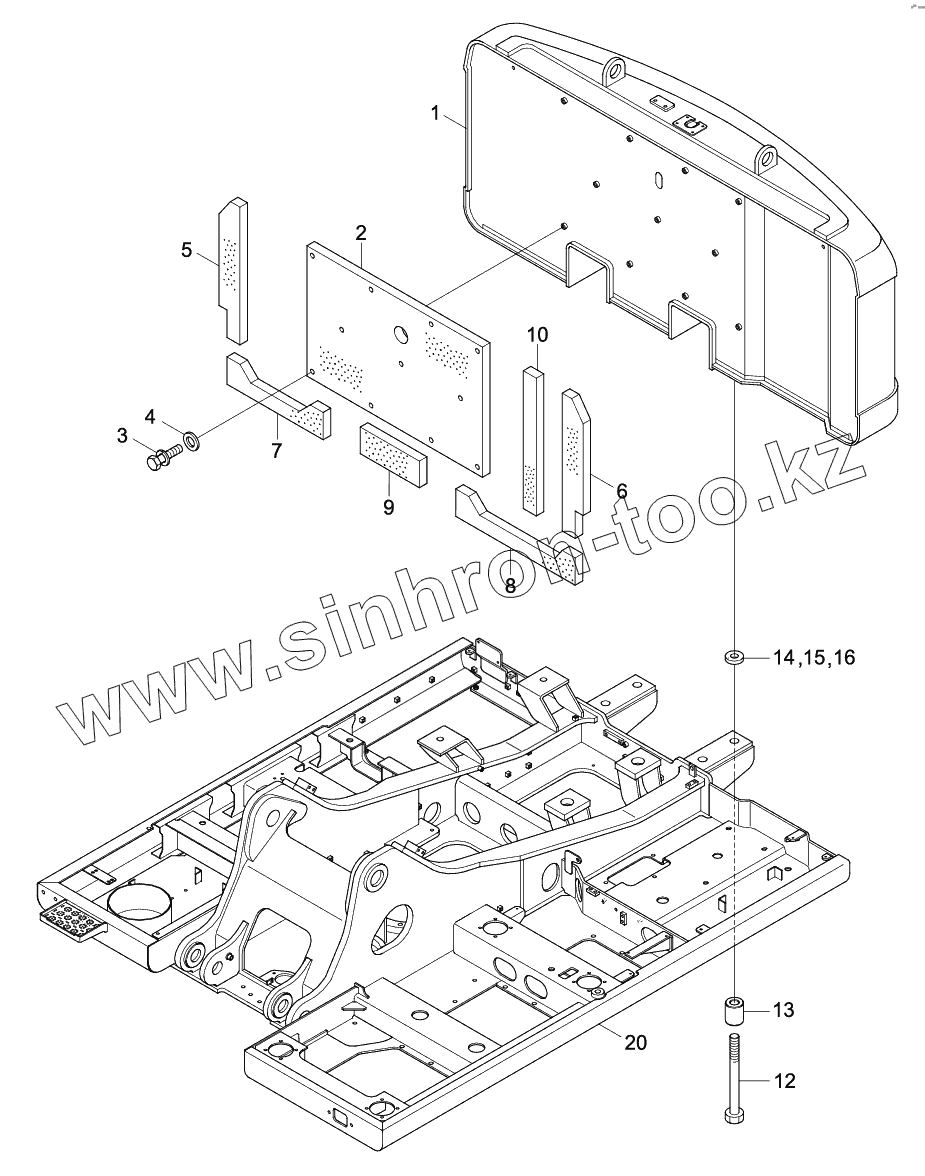

Позиция на иллюстрации
Заводской номер детали
Название детали
41Q6-21004
41Q6-21004
Counterweight Assy
41Q6-21002
41Q6-21002
Counterweight Assy
41Q6-70011
41Q6-70011
Upper Frame Wa
41Q6-00014
41Q6-00014
Upper Frame Wa
41Q6-22301
41Q6-22301
Sponge
41Q6-25504
41Q6-25504
Counterweight Wa
41Q6-25503
41Q6-25503
Counterweight Wa
41Q6-25502
41Q6-25502
Counterweight Wa
41Q6-25501
41Q6-25501
Counterweight Wa
41Q6-24504
41Q6-24504
Counterweight Wa
41Q6-24503
41Q6-24503
Counterweight Wa
41Q6-24502
41Q6-24502
Counterweight Wa
41Q6-24501
41Q6-24501
Counterweight Wa
41Q6-23504
41Q6-23504
Counterweight Wa
41Q6-23503
41Q6-23503
Counterweight Wa
41Q6-23502
41Q6-23502
Counterweight Wa
41Q6-22006
41Q6-22006
Counterweight Wa
41Q6-22005
41Q6-22005
Counterweight Wa
41Q6-22004
41Q6-22004
Counterweight Wa
41Q6-25003
41Q6-25003
Counter Weight Assy
41Q6-25002
41Q6-25002
Counterweight Assy
41Q6-25001
41Q6-25001
Counterweight Assy
41Q6-24003
41Q6-24003
Counterweight Assy
41Q6-24002
41Q6-24002
Counterweight Assy
41Q6-24001
41Q6-24001
Counterweight Assy
41Q6-23003
41Q6-23003
Counterweight Assy
41Q6-23002
41Q6-23002
Counterweight Assy
41Q6-23001
41Q6-23001
Counterweight Assy
41Q6-21005
41Q6-21005
Counterweight Assy
41Q6-21003
41Q6-21003
Counterweight Assy
41Q6-23501
41Q6-23501
Counterweight Wa
1
41Q6-22002
Counterweight Wa
2
41Q6-22300
Sponge
3
S037-122526
BOLT-W/WASHER
4
61L1-2037
Washer-Hardened
5
41N6-22310
Sponge
6
41N6-22320
Sponge
7
41Q6-22332
Sponge
8
41Q6-22342
Sponge
9
41Q6-22352
Sponge
10
41Q6-22360
Sponge
12
S018-361356
Bolt-Hex
13
41N6-22201
Spacer
14
S390-050075
Shim-Round
15
S391-050075
Shim-Round
16
S392-050075
Shim-Round
20
41Q6-00013
Upper Frame Wa
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
