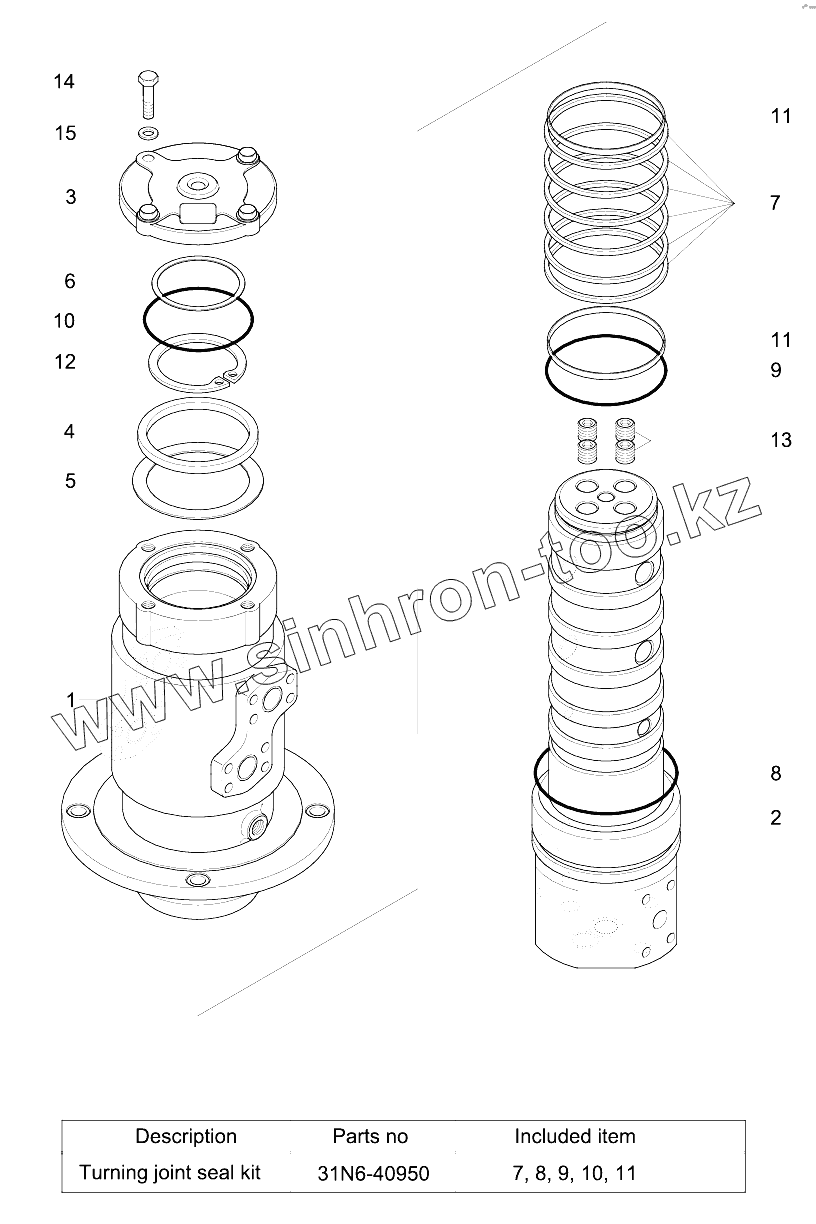

Позиция на иллюстрации
Заводской номер детали
Название детали
31Q6-40040
31Q6-40040
TURNING JOINT
1
31N6-40911
HUB
2
31N6-40921
SHAFT
3
31N2-40930
COVER
4
31E3-0035
SPACER
5
31E3-0036
SHIM
6
31E3-0037
SHIM
12
S601-090004
RING-RETAINING
13
P220-430205
PLUG-HEX
14
S017-120356
BOLT-HEX
15
S411-120006
WASHER-SPRING
K
31N6-40950
SEAL KIT
K7
31E6-40500
SEAL-SLIPPER
K8
S631-112001
O-RING
K9
S631-100004
O-RING
K10
S632-120004
O-RING
K11
Y320-100011
RING-WEAR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
