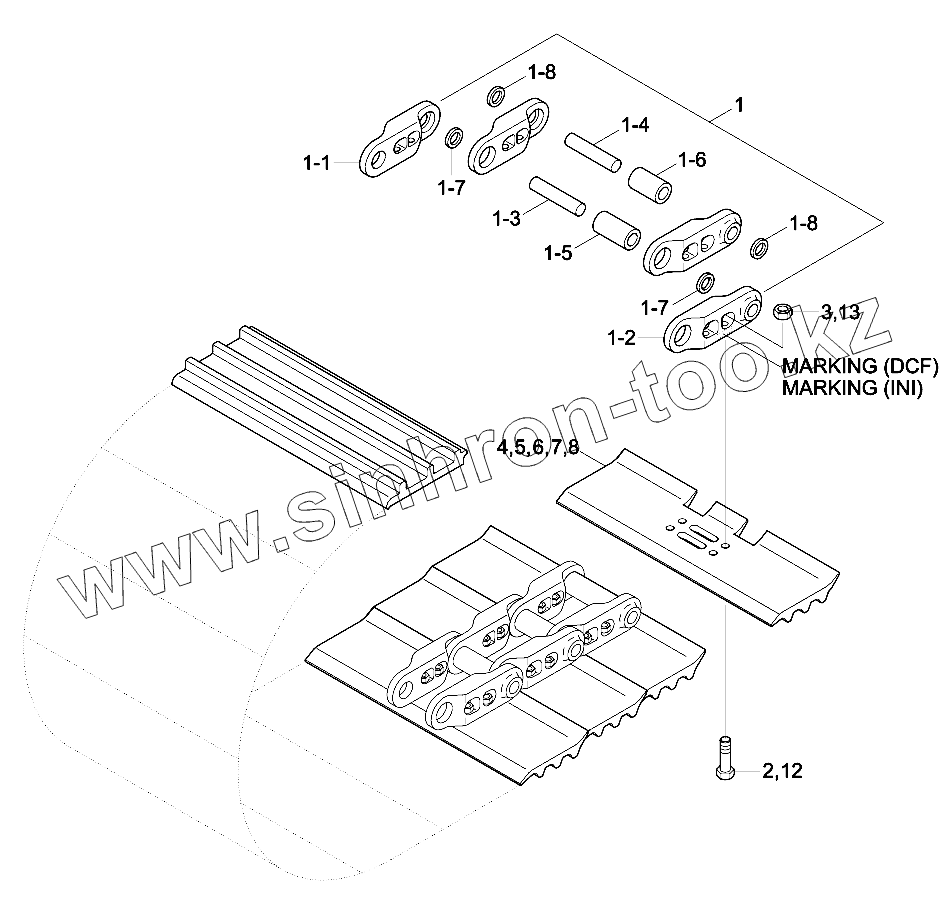

1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-7
1-8
1-8
2
3
4
5
6
7
7
12
N8
Позиция на иллюстрации
Заводской номер детали
Название детали
81N6-28030GG
81N6-28030GG
Track Chain Assy
81N6-24032GG
81N6-24032GG
Track Chain Assy
81N6-22530
81N6-22530
Shoe-Track
81N6-24530
81N6-24530
Shoe-Track
81N6-24041GG
81N6-24041GG
Track Chain Assy
81N6-24540
81N6-24540
Shoe-Track
81N6-24061GG
81N6-24061GG
Track Chain Assy
81N6-24560
81N6-24560
Shoe-Track
81N6-26030GG
81N6-26030GG
Track Chain Assy
81N6-26040GG
81N6-26040GG
Track Chain Assy
81N6-26060GG
81N6-26060GG
Track Chain Assy
81N6-26070GG
81N6-26070GG
Track Chain Assy
81N6-24070GG
81N6-24070GG
Track Chain Assy
81N6-26080GG
81N6-26080GG
Track Chain Assy
81EM-T0000
81EM-T0000
Track Bolt & Nut Kit
1
81N6-26600
Track Link Assy
1-1
81N6-26100
Track Link-Rh
1-2
81N6-26110
Track Link-Lh
1-3
81N6-26140
Pin-Track
1-4
81N6-26160
Pin-Master
1-5
81N6-26150
Bushing-Track
1-6
81N6-26170
Bushing-Master
1-7
81N6-26210
Seal-Dust
1-8
81N6-26180
Spacer
2
81EM-20020
Bolt-Track
3
81N6-26620
Nut-Track
4
81EM-28031
Shoe-Track
5
81EM-28040
Shoe-Track
6
81EM-28060
Shoe-Track
7
81EM-28070
Shoe-Track
7
81N6-24570
Shoe-Track
12
81EM-20040
Bolt-Shoe
N8
81EM-28080
Shoe-Track
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
