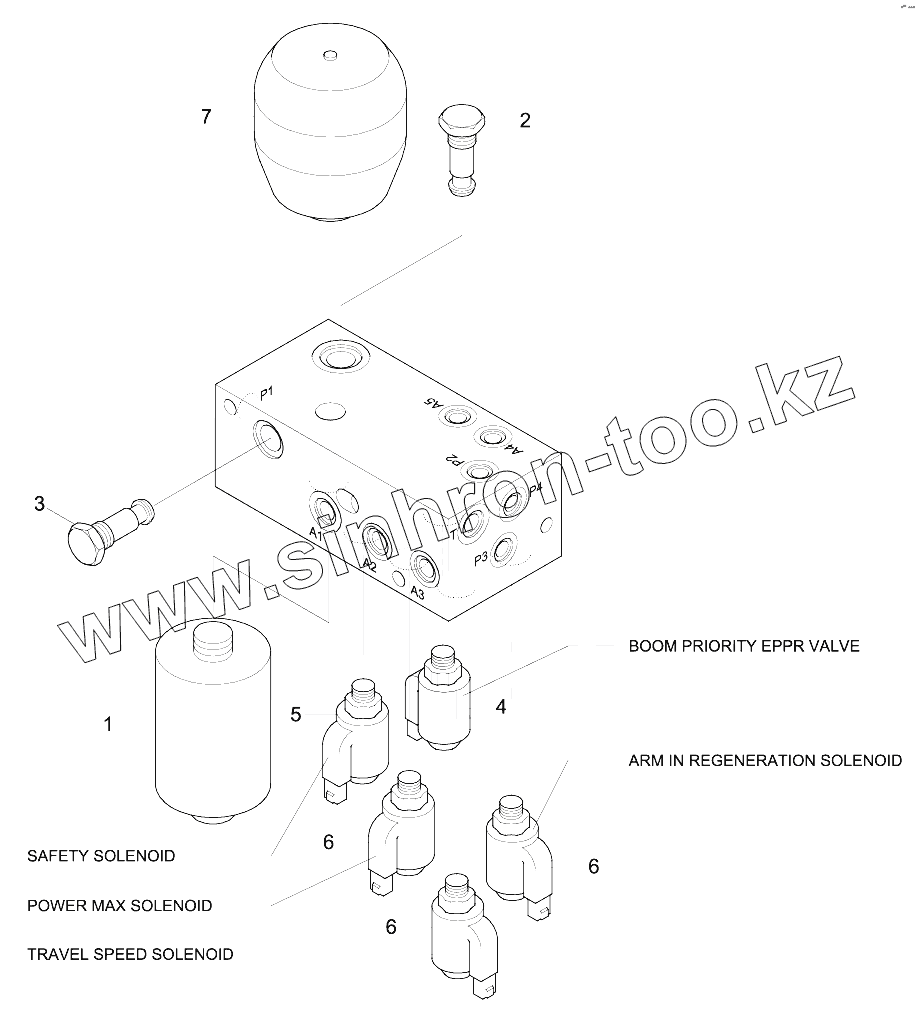

Каталог запасных частей к технике: Hyundai R210LC-9. SOLENOID VALVE (-#0692)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано R140W-9 (2013) R140W-9S (2013) R16-9 (2013) R170W-7 (2013) R170W-9 (2013) R170W-9S (2013) R180LC-9 (2013) R180LC-9S (2013) R180W-9S (2013) R210LC-9 (2013) R210NLC-9 (2013) R210W-9 (2013) R330LC-9A (2013) R330LC-9S (2013) R330LC-9SH (2013)

Схема > Не выбрано ENGINE MOUNTING AIR INTAKE SYSTEM AIR INTAKE SYSTEM (WET, #1230-) EXHAUST SYSTEM COOLING SYSTEM RADIATOR ASSY FUEL SYSTEM (WITHOUT PREFILTER) FUEL SYSTEM (WITH PREFILTER) FUEL TANK AIRCON & HEATER GROUP AIR CONDITIONER BOTTOM SUB AIRCON & HEATER UNIT AIR CONDITIONER MOUNTING AIR CONDITIONER UNIT (SEMI AUTO) HEATER MOUNTING HEATER UNIT (SEMI AUTO) PRE HEATING GROUP (#0181-) RH ELECTRIC (-#0061) RH ELECTRIC (#0062-) LH ELECTRIC (-#0061) LH ELECTRIC (#0062-) BOOM ELECTRIC (-#0094) BOOM ELECTRIC (#0095-) ENGINE ELECTRIC ELECTRIC BOX MCU CAB ELECTRIC 1 CAB ELECTRIC 2 ELECTRIC CABIN ROOM CLUSTER CLUSTER(OPTION) BOTTOM ELECTRIC FUEL FILLER PUMP FUSE BOX PUMP MOUNTING HYDRAULIC TANK UPPER HYD PIPING (BASE, MCV TYPE 1) UPPER HYD PIPING (BASE,#0469-, MCV TYPE2) UPPER HYD PIPING (ATTACH) UPPER HYD PIPING (TRAVEL, MCV TYPE1) UPPER HYD PIP (TRAVEL, #0469-, MCV TYPE2) PILOT HYD PIPING (CONTROL 1, MCV TYPE 1) PILOT HYD PIPING (CONTROL 2, MCV TYPE 1) PILOT HYD PIPING (CONTROL 3, MCV TYPE 1) PILOT HYD PIP (CNTL 1, #0469-, MCV TYPE2) PILOT HYD PIP (CNTL 2, #0469-, MCV TYPE2) PILOT HYD PIP (CNTL 3, #0469-, MCV TYPE2) PILOT HYD PIPING (CNTL 1, PATTERN CHANGE) PILOT HYD PIPING (CNTL 2, PATTERN CHANGE) PILOT HYD PIPING (CNTL 3, PATTERN CHANGE) PILOT HYD PIPING (BASE 1, MCV TYPE 1) PILOT HYD PIPING (BASE 2, MCV TYPE 1) PILOT HYD PIPING (BASE 3, MCV TYPE 1) PILOT HYD PIPING (BASE1,#0469-,MCV TYPE2) PILOT HYD PIPING (BASE2,#0469-,MCV TYPE2) PILOT HYD PIPING (BASE3,#0469-,MCV TYPE2) TRAVEL HYD PIPING (T/MOTOR TY 1, -#0477) TRAVEL HYD PIPING (T/MOTOR TY 2, #0478-) BOOM HYD PIPING (5.68M, STD) BOOM HYD PIPING (L/REACH, #0086-) BOOM HYD PIPING (4.7M, #0178-) BOOM GREASE LUB SYSTEM (5.68M, STD) BOOM GREASE LUB SYSTEM (L/REACH, #0086-) BOOM GREASE LUB SYSTEM (4.7M, #0178-) BOOM SAFETY LOCK SYSTEM QUICK CLAMP PIPING QUICK CLAMP (HOOK TYPE 1) QUICK CLAMP (CLOSE TYPE 1) QUICK CLAMP CYLINDER QUICK CLAMP (HOOK TYPE 2) QUICK CLAMP (CLOSE TYPE 2) ARM HYD PIPING (AM 2.92M, STD) ARM HYD PIPING (L/REACH, #0086-) ARM HYD PIPING (2.0M, #0035-) ARM HYD PIPING (SHORT ARM, 2.4M, #0035-) ARM HYD PIPING (2.065M, #0178-) ARM HYD PIPING (3.9M, #0035-) ARM SAFETY LOCK SYSTEM ATTACH PIPING KIT (S & D/ACTING) DOUBLE ACTING MAIN PIPING KIT 1 DOUBLE ACTING MAIN PIPING KIT 2 SINGLE PEDAL (DOUBLE ACTING) ROTATING MAIN PIPING KIT SINGLE ACTING MAIN PIPING KIT (#0035-) MAIN PUMP REGULATOR GEAR PUMP EPPR VALVE MCV (1/4, RED COLOR, TYPE 1) MCV (2/4, RED COLOR, TYPE 1) MCV (3/4, RED COLOR, TYPE 1) MCV (4/4, RED COLOR, TYPE 1) MCV (1/4, YELLOW COLOR, TYPE 1) MCV (2/4, YELLOW COLOR, TYPE 1) MCV (3/4, YELLOW COLOR, TYPE 1) MCV (4/4, YELLOW COLOR, TYPE 1) MAIN CONTROL VALVE (1/5, TYPE 2) MAIN CONTROL VALVE (2/5, TYPE 2) MAIN CONTROL VALVE (3/5, TYPE 2) MAIN CONTROL VALVE (4/5, TYPE 2) MAIN CONTROL VALVE (5/5, TYPE 2) SWING MOTOR (TYPE 1) SWING REDUCTION GEAR (TYPE 1) SWING MOTOR (TYPE 2) SWING REDUCTION GEAR (TYPE 2) REMOTE CONTROL LEVER REMOTE CONTROL PEDAL TURNING JOINT TRAVEL MOTOR (1/2, TYPE 1, -#0477) TRAVEL MOTOR (2/2, TYPE 1, -#0477) TRAVEL REDUCTION GEAR (TYPE 1, -#0477) TRAVEL MOTOR (1/2, TYPE 2, #0478-) TRAVEL MOTOR (2/2, TYPE 2, #0478-) TRAVEL REDUCTION GEAR (TYPE 2, #0478-) BOOM CYLINDER ARM CYLINDER ARM CYLINDER (BM 4.7M, #0178-) BUCKET CYLINDER BUCKET CYLINDER (L/REACH, #0086-) SOLENOID VALVE (-#0692) SOLENOID VALVE (#0693-) UNDERCARRIAGE MOUNTING UNDERCARRIAGE MTG (HIGH WALKER) UNDERCARRIAGE MTG (REINFORCEMENT) LOWER ROLLER UPPER ROLLER IDLER TRACK CHAIN TRACK CHAIN (HIGH WALKER) TRACK CHAIN (R210-9) ADJUST COMPONENT CAB MOUNTING CAB ASSY (1/4) CABIN A/S KIT CAB ASSY (2/4) CAB ASSY (3/4) CAB ASSY (4/4, DOOR) CAB INTERIOR 1 CAB INTERIOR 2 CAB INTERIOR 3 CONSOLE BOX 1 (LH) CONSOLE BOX 2 (LH) CONSOLE BOX 3 (RH) SEAT BASE ASSY SEAT BASE ASSY (#1280-) SEAT (SUSPENSION, HEATED, STD) SEAT (SUSPENSION) SEAT (SUSPENSION, 2"AIR RIDE, HEATED) SEAT (SUSPENSION, 2"AIR RIDE) STORAGE BOX ASSY BOTTOM PLATE MOUNTING COWLING 1 COWLING 2 SIDE COWL ASSY (LH) SIDE COVER ASSY (LH) SIDE COWL ASSY (RH) ENGINE HOOD UNDER COVER TOOL BOX MOUNTING TOOL BOX (-#0094) TOOL BOX (#0095-) UPPER FRAME & COUNTERWEIGHT LOWER FRAME & COVER LOWER FRAME&COVER (HIGH WALKER) SWING RING GREASE LUB SYSTEM GROMMET GROUP BOOM MOUNTING BOOM MOUNTING (LONG REACH, #0008-) BOOM (5.68M) BOOM (8.20M, LONG REACH, #0038-) BOOM (4.7M, SUPER SHORT, #0178-) ARM ARM (6.3M, LONG REACH, #0086-) ARM (2.92M, HEAVY DUTY) ARM (2.0M, SUPER SHORT, #0008-) ARM (6.3M, LONG REACH, #0038-) ARM (3.9M, LONG, #0008-) ARM(2.065M, SHORT, #0178-) BUCKET CONTROL GROUP BUCKET CONTROL GROUP (LONG REACH) TOOLS HCE-DT KIT DECALS MANUALS AIR INTAKE HEATER DATAPLATE REAR GEAR HOUSING CRANKSHAFT & MAIN BEARINGS CYLINDER BLOCK VALVE TAPPET CRANKCASE BREATHER COOLANT HEATER STARTING AID VIBRATION DAMPER REAR GEAR TRAIN ACCESSORY THERMOSTAT ALTERNATOR MOUNTING FAN DRIVE FUEL FILTER LOCATION FUEL FILTER PLUMBING FLYWHEEL HOUSING FUEL INLET FITTING FUEL PUMP FUEL PLUMBING FLYWHEEL FRONT GEAR COVER HEATER PLUMBING AIR INTAKE CONNECTION 1 AIR INTAKE CONNECTION 2 AIR INTAKE HOSE AIR INTAKE COVER AIR TRANSFER CONNECTION ARRANGEMENT LIFTING LIFTING BRACKET MOUNTING ENGINE OIL COOLER FULL FLOW OIL FILTER OIL LEVEL GAUGE LUBRICATING OIL PUMP OIL FILLER ARRANGEMENT OIL PAN ENGINE CONTROL MODULE CONNECTING ROD & PISTON CAMSHAFT FUEL INJECTOR CYLINDER HEAD TURBOCHARGER INJECTOR PLUMBING REMOTE OIL DRAIN ROCKER LEVERS ENGINE COOLANT VENT OIL LEVEL SENSOR HEAT SHIELD 1 HEAT SHIELD 2 STARTING MOTOR MOUNTING FAN PILOT SPACER TURBOCHARGER ARRANGEMENT TORQUE CONVERTER OIL COOLER TURBOCHARGER PLUMBING VALVE COVER ARRANGEMENT WATER INLET CONNECTION WATER OUTLET CONNECTION WATER PUMP DRIVE WATER PUMP BELT TENSIONER ENGINE CONTROL MODULE HARNESS EXHAUST OUTLET CONNECTION BUCKET (5 TEETH) BUCKET (0.92M3 SAE HEAPED, CAST, #0061-) BUCKET (1.05M3 SAE HEAPED, CAST, #0137-) BUCKET (3 TEETH) BUCKET (6 TEETH) BUCKET (5 TEETH, HEAVY DUTY) BUCKET (5 TEETH, ROCK) BUCKET (SLOPE FINISHING) BUCKET (5 TEETH, CAST) BUCKET (1.34M3 SAE HEAPED) BUCKET (0.90M3 SAE HEAPED, #0008-) BUCKET (0.74M3 SAE HEAPED, HEAVY DUTY) BUCKET (1.05M3 SAE HEAPED, HEAVY DUTY) BUCKET (0.87M3 SAE HEAPED, ROCK, #0008-) BUCKET (1.20M3 SAE HEAPED, ROCK, #0008-) BUCKET (0.75M3 SAE HEAPED, S/FINISHING) BUCKET (0.87M3 SAE HEAPED, ROCK, NARROW) BUCKET (1.05M3 SAE HEAPED, NARROW) BUCKET (0.55M3 SAE HEAPED, S/FINISING) BUCKET (0.52M3 SAE HEAPED, LONG REACH) BUCKET (0.50M3 SAE HEAPED, LONG REACH) BUCKET (0.90M3 SAE HEAPED, HEAVY DUTY) BUCKET (0.74M3 SAE HEAPED, HEAVY DUTY) BUCKET (0.55M3 SAE HEAPED, D/CLEANING) BUCKET (0.80M3 SAE HEAPED) BUCKET (0.87M3 SAE HEAPED) BUCKET (0.92M3 SAE HEAPED)

1

2

3

4

5

6

6

6

7

Позиция на иллюстрации	Заводской номер детали		Название детали
31Q6-20042	31Q6-20042		Solenoid Valve
ZGAW-00017	ZGAW-00017		Accumulator
31Q6-20041	31Q6-20041		Solenoid Valve
1	ZGAW-00012		Filter-Line
1-1	31Q6-20320		Element-Line Filter
2	ZGAW-00014		Valve-Check
3	ZGAW-00009		Valve-Check
4	ZGAW-00015		Valve-Eppr
4-1	ZGAW-00016		Coil
5	ZGAW-00006		Cartridge
5-1	ZGAW-00008		Coil
6	ZGAW-00007		Cartridge
7	ZGAW-00022		Accumulator

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
