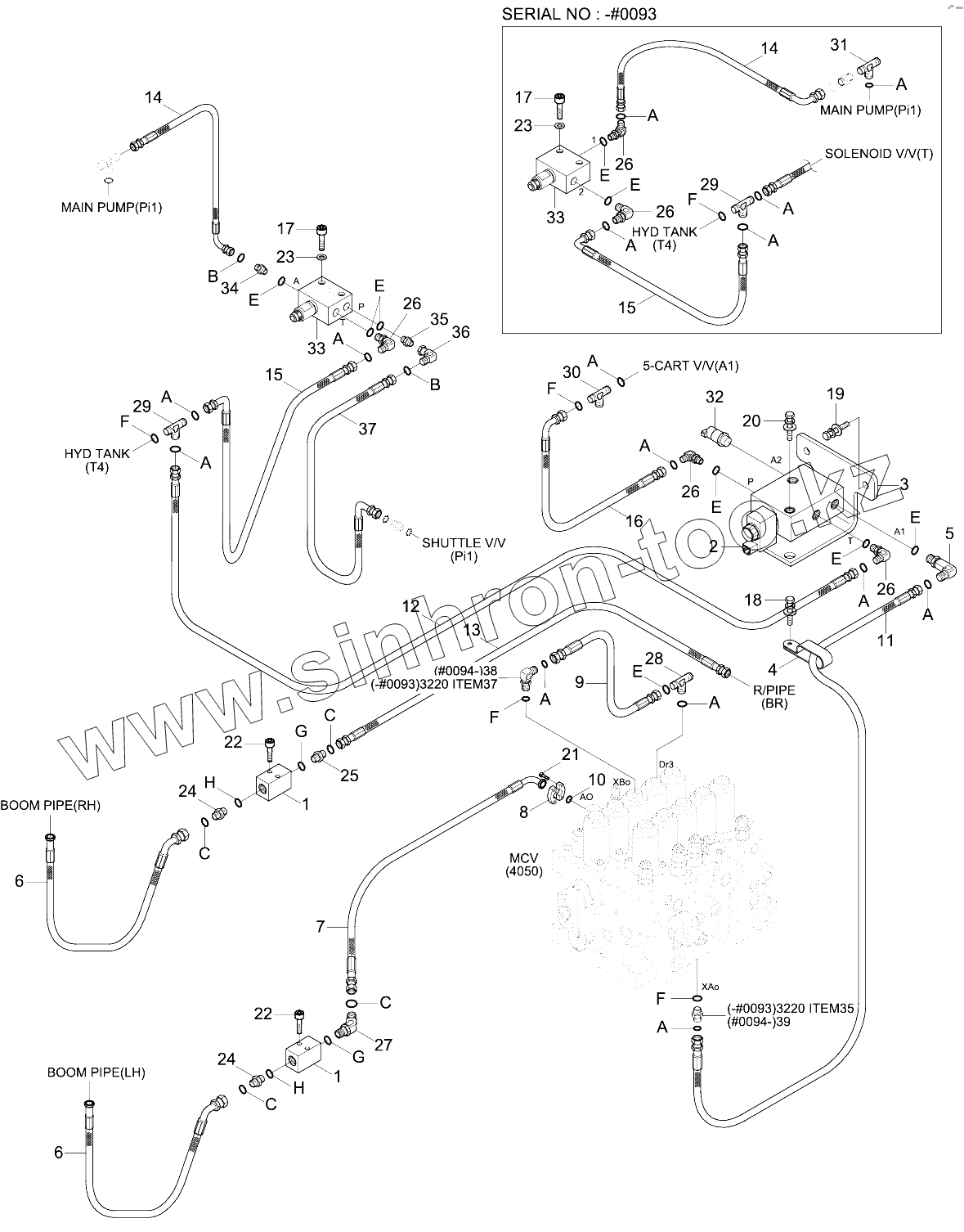

Каталог запасных частей к технике: Hyundai R210LC-9. SINGLE ACTING MAIN PIPING KIT (#0035-)
1
1
2
3
4
5
7
8
9
10
11
12
13
14
14
15
15
16
17
17
18
19
20
21
22
22
23
23
24
24
25
26
26
26
26
26
27
28
29
29
30
31
32
33
33
34
35
36
37
37
38
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
C
C
C
E
E
E
E
E
E
E
E
F
F
F
F
F
G
G
H
H
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| P930-062012 | P930-062012 | Hose Assy-Orfs 0x90 | |
| S015-060506 | S015-060506 | Bolt-Hex | |
| 31Q4-40830 | 31Q4-40830 | SENSOR-PRESSURE | |
| 31Q9-20130 | 31Q9-20130 | Eppr Valve | |
| 31Q6-90320 | 31Q6-90320 | S/Act Main Piping Kit | |
| 1 | 31N6-91540 | Joint Assy-Hose | |
| 2 | 31Q6-91220 | VALVE-SOLENOID | |
| 2-1 | EDH0427V-HD | Coil | |
| 3 | 31Q6-90381 | BRACKET-SOL VALVE | |
| 4 | 31L7-10250 | CLAMP-TUBE,INS SINGLE | |
| 5 | 31N6-25110 | ELBOW-90,LONG | |
| 7 | 31Q6-90470 | Hose Assy | |
| 8 | P173-160104 | FLANGE-HYD,SPLIT | |
| 9 | P910-042008 | HOSE ASSY-ORFS 0X0 | |
| 10 | Y171-024004 | O-RING | |
| 11 | P910-042034 | Hose Assy-Orfs 0x0 | |
| 12 | P910-042036 | Hose Assy-Orfs 0x0 | |
| 13 | P913-163021 | Hose Assy-Orfs 0x0 | |
| 14 | P930-042016 | HOSE ASSY-ORFS 0X90 | |
| 15 | P930-042031 | Hose Assy-Orfs 0x90 | |
| 16 | P930-042038 | HOSE ASSY-ORFS 0X90 | |
| 17 | S015-060456 | BOLT-HEX | |
| 18 | S037-102026 | BOLT-W/WASHER | |
| 19 | S037-122526 | BOLT-W/WASHER | |
| 20 | S109-080406 | BOLT-SOCKET | |
| 21 | S109-100306 | BOLT-SOCKET | |
| 22 | S109-120656 | BOLT-SOCKET | |
| 23 | S403-06200B | WASHER-PLAIN | |
| 24 | X500-110021 | CONNECTOR-ORFS | |
| 25 | X500-110005 | CONNECTOR-ORFS | |
| 26 | X520-110001 | ELBOW-90,ORFS | |
| 27 | X520-110005 | ELBOW-90,ORFS | |
| 28 | X820-045151 | TEE-R/TYPE,ORFS | |
| 29 | X820-065151 | Tee-R/Type, Orfs | |
| 30 | X820-065251 | TEE-R/TYPE,ORFS | |
| 31 | X830-525152 | Tee-B/Type,Swivel,Orfs | |
| 32 | 31Q8-40520 | Sensor-Pressure | |
| 33 | 31Q7-20130 | Eppr Valve | |
| 34 | X500-110011 | CONNECTOR-ORFS | |
| 35 | 31N6-25070 | FILTER-LAST GUARD | |
| 36 | X850-525200 | ELBOW-90,SWIVEL,ORFS | |
| 37 | P930-062036 | Hose Assy-Orfs 0x90 | |
| 38 | X500-110013 | CONNECTOR-ORFS | |
| 39 | X520-110012 | ELBOW-90,ORFS | |
| A | S621-011001 | O-RING | |
| C | S621-021001 | O-RING | |
| E | S631-011004 | O-RING | |
| F | S631-014004 | O-RING | |
| G | S631-029004 | O-RING | |
| H | S631-038004 | O-RING |
