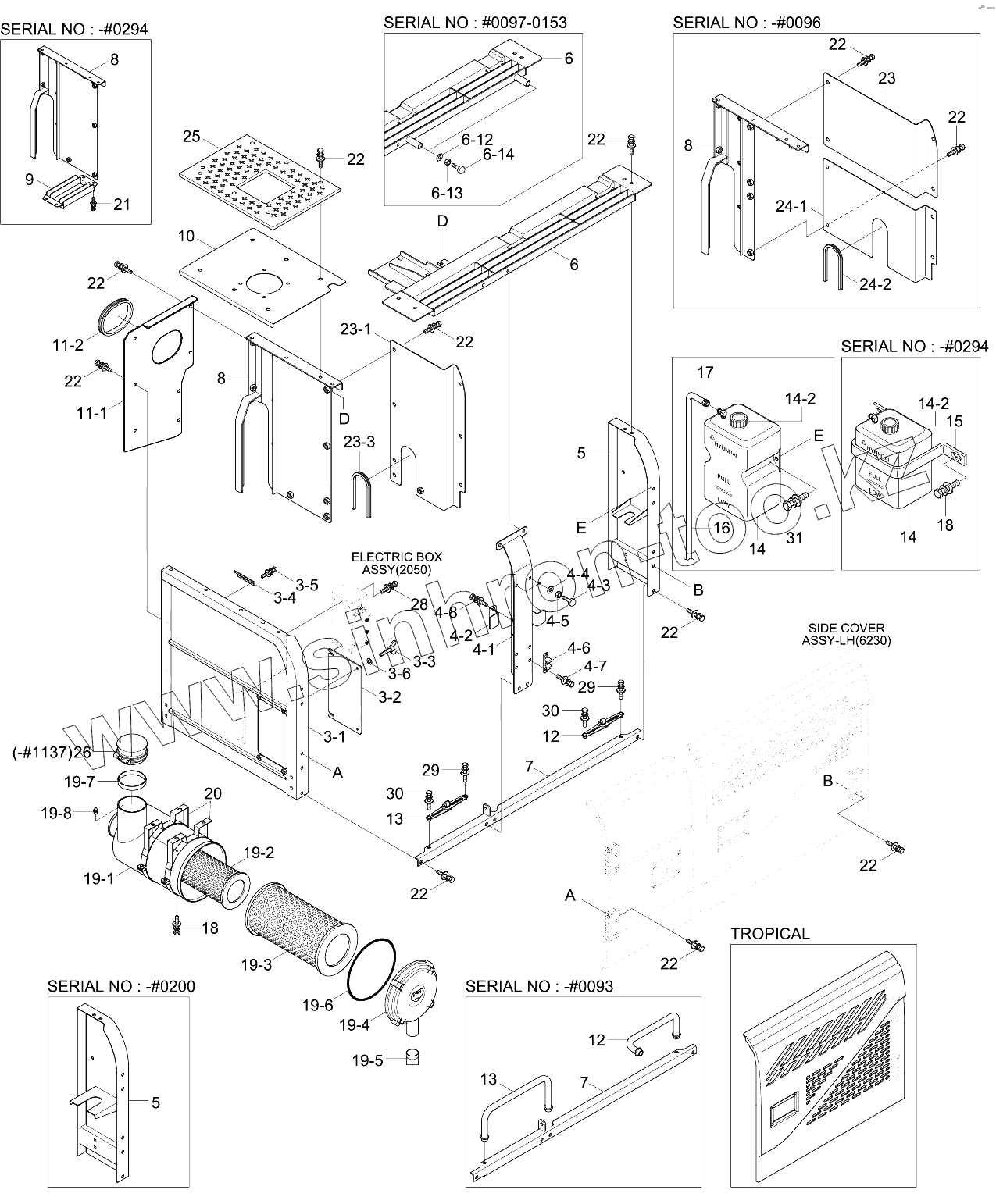

Каталог запасных частей к технике: Hyundai R210LC-9. SIDE COWL ASSY (LH)
3
3-1
3-2
3-3
3-4
3-5
3-6
4
4-1
4-2
4-3
4-4
4-5
4-6
4-7
4-8
5
5
6
6
7
7
8
8
8
9
10
11-1
11-2
12
12
13
13
14
14
14-2
14-2
15
16
17
19
19-2
19-3
19-4
19-5
19-6
19-7
19-8
20
22
22
22
22
22
22
22
22
22
22
22
23
23-1
23-3
24
24-1
25
26
28
29
29
30
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 71Q6-52004 | 71Q6-52004 | Side Cowl Assy-Lh | |
| 71Q6-52005 | 71Q6-52005 | Side Cowl Assy-Lh | |
| 71Q6-52006 | 71Q6-52006 | Side Cowl Assy-Lh | |
| 71Q6-52007 | 71Q6-52007 | Side Cowl Assy-Lh | |
| 71Q6-52008 | 71Q6-52008 | Side Cowl Assy-Lh | |
| 71Q6-52009 | 71Q6-52009 | Side Cowl Assy-Lh | |
| 71Q6-52020 | 71Q6-52020 | Side Cowl Assy-Lh | |
| 71Q6-52021 | 71Q6-52021 | Side Cowl Assy-Lh | |
| 71Q6-52022 | 71Q6-52022 | Side Cowl Assy-Lh | |
| 71Q6-52304 | 71Q6-52304 | Support Assy | |
| 71Q6-52305 | 71Q6-52305 | Support Assy | |
| 71Q6-52315 | 71Q6-52315 | Support Wa | |
| 71Q6-52316 | 71Q6-52316 | Support Wa | |
| S091-080166 | S091-080166 | BOLT-WING | |
| S593-000902 | S593-000902 | CLIP-HARNESS | |
| 71Q6-52402 | 71Q6-52402 | Support Assy | |
| 71Q6-52412 | 71Q6-52412 | Support Wa-Lh,Mid | |
| 71Q6-52512 | 71Q6-52512 | Support Wa-Lh,Rear | |
| 71Q6-52602 | 71Q6-52602 | Support-Eng Hood | |
| 71Q6-52603 | 71Q6-52603 | Support-Eng Hood | |
| 71Q6-52702 | 71Q6-52702 | Support Wa-Bottom | |
| 71Q6-52804 | 71Q6-52804 | Support Wa | |
| 71Q6-52805 | 71Q6-52805 | Support Wa | |
| 71Q6-52806 | 71Q6-52806 | Support Wa | |
| 71Q6-52807 | 71Q6-52807 | Support Wa | |
| 71Q6-56203 | 71Q6-56203 | Screen-Mcv | |
| 71Q6-56213 | 71Q6-56213 | Screen-Mcv | |
| 71Q6-52180 | 71Q6-52180 | STAY ASSY-LH | |
| 71Q6-53180 | 71Q6-53180 | STAY ASSY-RH | |
| 11N8-41071 | 11N8-41071 | TANK-RESERVOIR | |
| 11Q6-20030 | 11Q6-20030 | Air Cleaner Assy | |
| 71Q6-55402 | 71Q6-55402 | Screen | |
| 71Q6-55403 | 71Q6-55403 | Screen | |
| 71Q6-55411 | 71Q6-55411 | Screen | |
| S037-101556 | S037-101556 | BOLT-W/WASHER | |
| 71Q6-52003 | 71Q6-52003 | Side Cowl Assy-Lh | |
| 3 | 71Q6-52303 | Support Assy | |
| 3-1 | 71Q6-52314 | Support Wa | |
| 3-2 | 71Q6-52392 | PLATE-SCREEN | |
| 3-3 | S035-082056 | BOLT-W/WASHER | |
| 3-4 | S593-000802 | CLIP-HARNESS | |
| 3-5 | S037-101526 | BOLT-W/WASHER | |
| 3-6 | S403-082006 | WASHER-PLAIN | |
| 4 | 71Q6-52401 | Support Assy | |
| 4-1 | 71Q6-52411 | Support Wa-Lh,Mid | |
| 4-2 | 71Q6-53330 | PLATE-LOCK | |
| 4-3 | 71EH-13150 | BUMPER-RUBBER | |
| 4-4 | S403-10200B | WASHER-PLAIN | |
| 4-5 | S205-10100B | NUT-HEX | |
| 4-6 | 71Q6-53951 | STOPPER-B | |
| 4-7 | S035-082026 | BOLT-W/WASHER | |
| 4-8 | 71Q6-50020 | BOLT-W/WASHER | |
| 5 | 71Q6-52511 | Support Wa-Lh,Rear | |
| 6 | 71Q6-52601 | Support-Eng Hood | |
| 7 | 71Q6-52701 | Support Wa-Bottom | |
| 8 | 71Q6-52803 | Support Wa | |
| 9 | 71Q6-52901 | Support Wa | |
| 10 | 71Q6-56101 | Hood Wa-A/Cleaner | |
| 11 | 71Q6-56202 | Screen-Mcv | |
| 11-1 | 71Q6-56212 | Screen-Mcv | |
| 11-2 | S791-020060 | Grommet-Plate | |
| 12 | 71ND-53801 | Stay Wa | |
| 13 | 71ND-53851 | Stay Assy | |
| 14 | 11N8-41070 | Tank-Reservoir | |
| 14-2 | MH100020 | CAP-RESERVOIR TANK | |
| 15 | 11N8-41080 | Clamp-Reservoir Tank | |
| 16 | E111-2504 | HOSE | |
| 17 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 19 | 11N6-27010 | Air Cleaner Assy | |
| 19-2 | 11N6-27030 | Element-Safety | |
| 19-3 | 11N6-27040 | Element-Primary | |
| 19-4 | 11N6-27050 | Cover Assy | |
| 19-5 | 11N6-27060 | Valve-Vacuator | |
| 19-6 | P836767 | O-Ring | |
| 19-7 | P843195 | Sponge-Seal | |
| 19-8 | 11N6-27070 | Nipple-Sensor | |
| 20 | 11N6-27100 | Clamp Band Wa | |
| 22 | 71Q6-50025 | BOLT-W/WASHER | |
| 23 | 71Q6-55401 | Screen | |
| 23-1 | 71Q6-55410 | Screen | |
| 23-3 | S791-020049 | Grommet-Plate | |
| 24 | 71Q6-55451 | Screen | |
| 24-1 | 71Q6-55461 | Screen | |
| 25 | 71Q6-56500 | Non Slip Plate | |
| 26 | 11N6-20070 | Grill | |
| 28 | S037-102026 | BOLT-W/WASHER | |
| 29 | S037-102556 | BOLT-W/WASHER | |
| 30 | S037-103556 | BOLT-W/WASHER | |
| 31 | S035-082526 | BOLT-W/WASHER | |
| N19-1 | 11N6-27020 | Body Assy |
