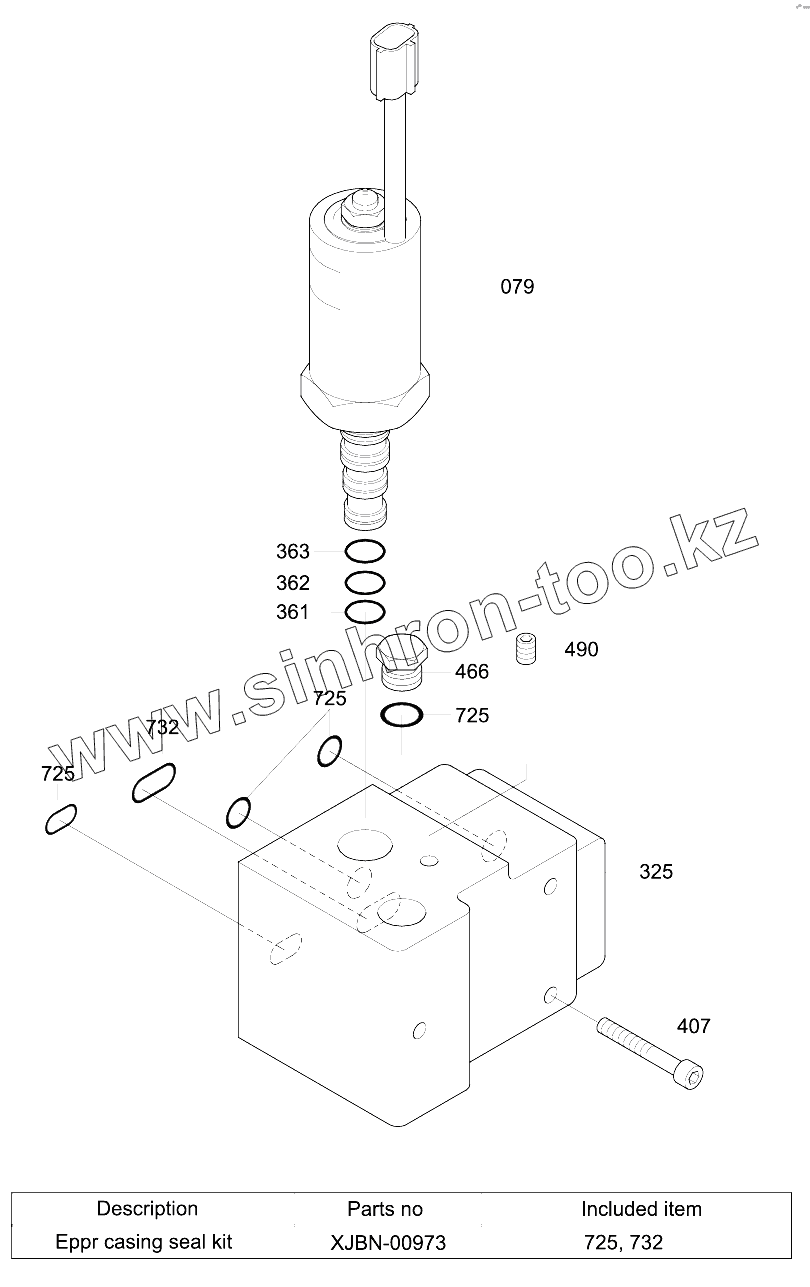

Позиция на иллюстрации
Заводской номер детали
Название детали
XJBN-00014
XJBN-00014
EPPR VALVE ASSY
079
XJBN-00382
Eppr Valve
325
XJBN-00380
Casing-Valve
361
XJBN-00546
O-Ring
362
XJBN-00547
O-Ring
363
XJBN-00548
O-Ring
407
XJBN-00381
Screw
466
XJBN-00030
PLUG
490
XJBN-00032
PLUG
K
XJBN-00973
EPPR CASING SEAL KIT
K725
XJBN-00362
O-RING
K732
XJBN-00283
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
