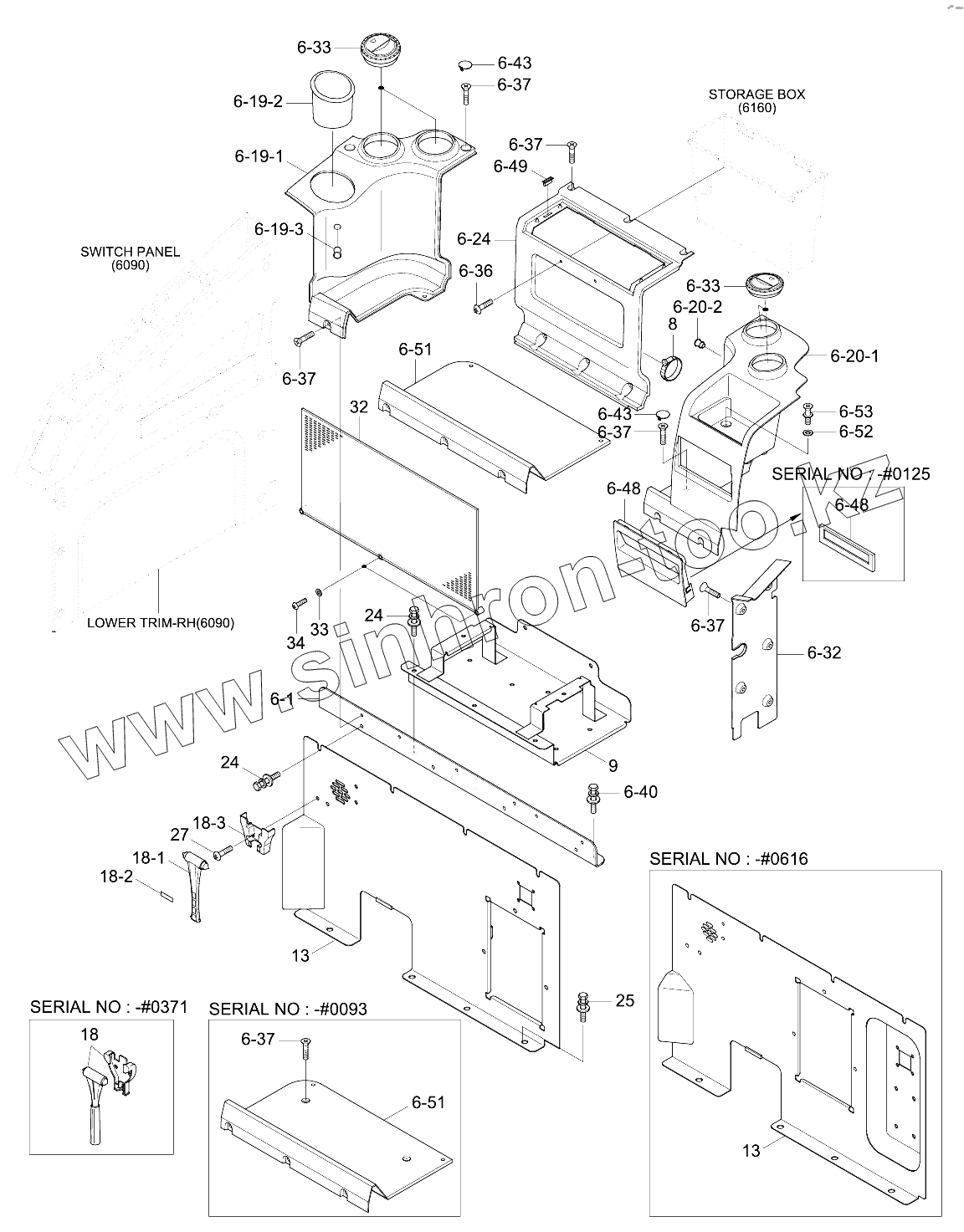

Каталог запасных частей к технике: Hyundai R210LC-9. CAB INTERIOR 3

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
6-1
6-19-1
6-19-2
6-19-3
6-20
6-20-1
6-24
6-32
6-33
6-33
6-36
6-37
6-37
6-37
6-37
6-37
6-37
6-40
6-43
6-43
6-48
6-48
6-49
6-51
6-51
6-52
6-53
8
9
13
13
18
18-1
18-2
18-3
25
27
32
33
34
Позиция на иллюстрации Заводской номер детали Название детали
71Q6-20851 71Q6-20851 BRACKET WA
71Q6-22990GG 71Q6-22990GG Trim-Rear, Rh
71Q6-22991GG 71Q6-22991GG TRIM-REAR,RH
71Q6-22170GG 71Q6-22170GG Trim-Rear, Rh
71Q6-22171GG 71Q6-22171GG TRIM-REAR,RH
71Q6-22180GG 71Q6-22180GG CUP-HOLDER
71Q6-22151GG 71Q6-22151GG Trim-Rear, Lh
71Q6-22152GG 71Q6-22152GG TRIM-REAR,LH
71Q6-22160GG 71Q6-22160GG TRIM-REAR,MID
71Q6-22220GG 71Q6-22220GG TRIM-LH,LOW
71Q6-22760GG 71Q6-22760GG CAP-TRIM
71Q6-23070GG 71Q6-23070GG COVER-RADIO
71Q6-22212 71Q6-22212 Cover-Aircon
71Q6-22212GG 71Q6-22212GG COVER-AIRCON
71Q6-21270 71Q6-21270 PLATE WA
71Q6-23650 71Q6-23650 HAMMER-SAFETY
6 Cab Cab Sub Assy
6-1 71Q6-20850 Bracket Wa
6-19 71Q6-22990 Trim-Rear,Rh
6-19-1 71Q6-22170 Trim-Rear,Rh
6-19-2 71Q6-22180 Holder-Cup
6-19-3 71Q6-23740 HOOK
6-20 71Q6-22151 Trim-Rear,Lh
6-20-1 71Q6-23760 Trim-Rear, Lh
6-24 71Q6-22160 Trim-Rear,Mid
6-32 71Q6-22220 Trim-Lh,Low
6-33 71Q6-22400 NOZZLE-AIR
6-36 S002-06010B SCREW-TRUS HEAD
6-37 S002-06015B SCREW-TRUS HEAD
6-40 S035-082026 BOLT-W/WASHER
6-43 71Q6-22760 Cap-Trim
6-48 71Q6-23070 Cover-Radio
6-49 71N6-20390 MAGNETIC
6-51 71Q6-22211 Cover-Aircon
6-52 S403-08200B WASHER-PLAIN
6-53 S132-061556 Screw-W/Washer
8 71N6-20370 CLIP-HOSE
9 71Q6-20801 PLATE WA
13 71Q6-20881 Cover-Aircon, Low
18 71E1-60340 Hammer-Safety
18-1 LHM-A05-0 BODY-LHMA
18-2 LHM-A03-0 STRAP-LHMA
18-3 LHM-A04-1 BASE-LHMA
25 S037-102026 BOLT-W/WASHER
27 S141-040166 SCREW-FLAT HD
32 71Q6-21290 COVER ASSY
33 S403-06200B WASHER-PLAIN
34 S161-060356 SCREW-CROSS R/ROUND
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
