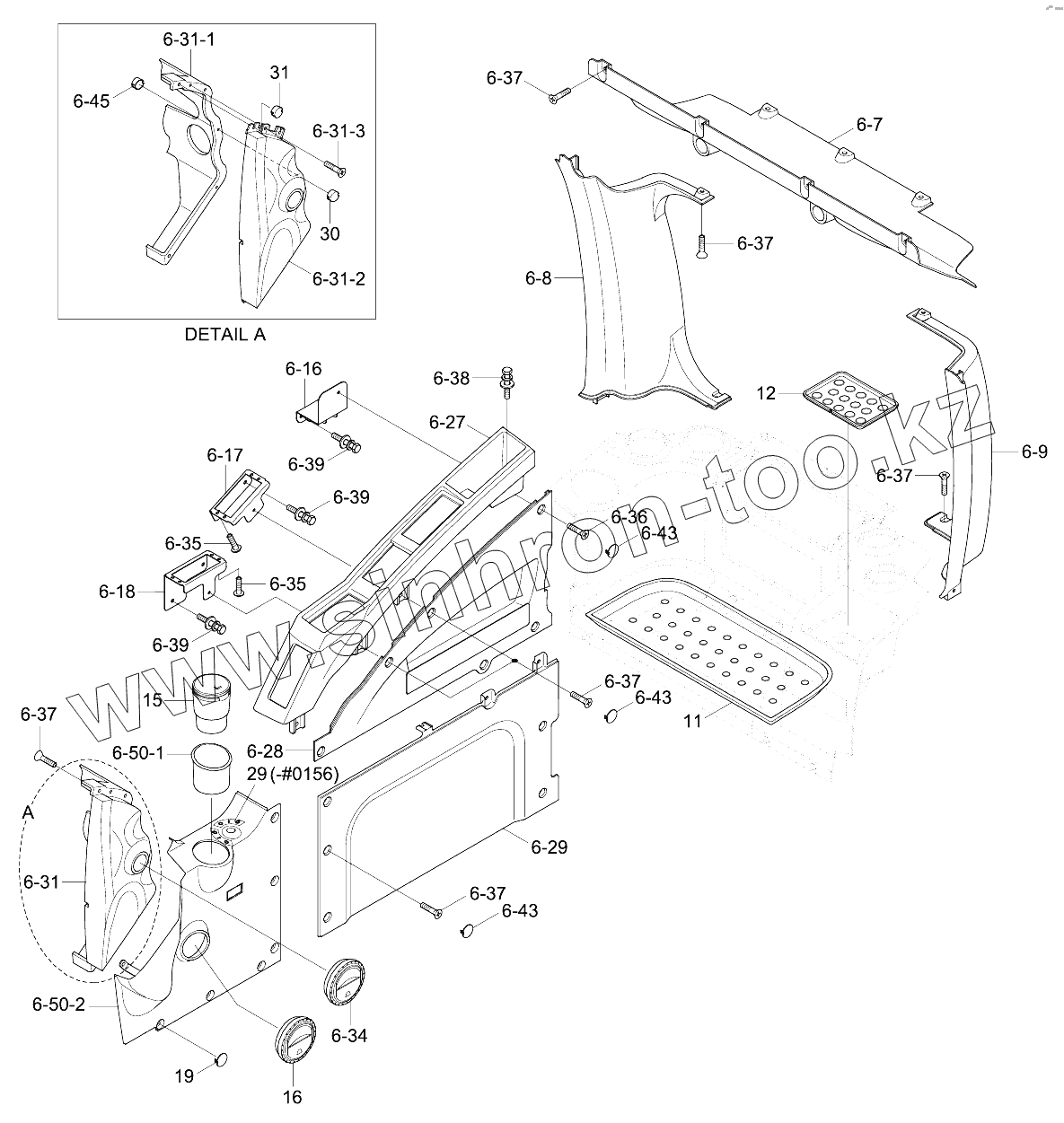

Каталог запасных частей к технике: Hyundai R210LC-9. CAB INTERIOR 2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
6-7
6-8
6-9
6-16
6-17
6-18
6-27
6-28
6-29
6-31
6-31-1
6-31-2
6-31-3
6-34
6-35
6-35
6-36
6-38
6-39
6-39
6-39
6-43
6-43
6-43
6-45
6-50
6-50-1
6-50-2
11
12
15
29
30
31
Позиция на иллюстрации Заводской номер детали Название детали
71Q6-22250GG 71Q6-22250GG COVER-SPEAKER
71Q6-22240GG 71Q6-22240GG TRIM-PILLAR,RH
71Q6-22230GG 71Q6-22230GG TRIM-PILLAR,LH
71Q6-21501 71Q6-21501 Bracket-Tray
71Q6-21502 71Q6-21502 BRACKET-TRAY
71Q6-21531 71Q6-21531 Bracket-Remote
71Q6-21532 71Q6-21532 BRACKET-REMOTE
71Q6-21551 71Q6-21551 Bracket-Membrane
71Q6-21552 71Q6-21552 BRACKET-MEMBRANE
71Q6-22141 71Q6-22141 PANEL-SWITCH
71Q6-22800GG 71Q6-22800GG TRIM ASSY-UPPER,RH
71Q6-22660GG 71Q6-22660GG TRIM ASSY-LOWER,RH
71Q6-22581GG 71Q6-22581GG Cover-Wiper Motor
71Q6-23660 71Q6-23660 NOZZLE-AIR, FRONT
71Q6-22760GG 71Q6-22760GG CAP-TRIM
71Q6-22980GG 71Q6-22980GG TRIM-RH,FRONT LOW
71Q6-22110GG 71Q6-22110GG HOLDER-CUP
71Q6-22080GG 71Q6-22080GG TRIM-RH,FRONT LOW
6 Cab Cab Sub Assy
6-7 71Q6-22250 Cover-Speaker
6-8 71Q6-22240 Trim-Pillar,Rh
6-9 71Q6-22230 Trim-Pillar,Lh
6-16 71Q6-21500 Bracket-Tray
6-17 71Q6-21530 Bracket-Remote
6-18 71Q6-21550 Bracket-Membrane
6-27 71Q6-22140 Panel-Switch
6-28 71Q6-22800 Trim Assy-Upper,Rh
6-29 71Q6-22660 Trim Assy-Lower,Rh
6-31 71Q6-22581 Cover-Wiper Motor
6-31-1 71Q6-22091 Cover(1)-Wiper Motor
6-31-2 71Q6-22101 Cover(2)-Wiper Motor
6-31-3 S002-06015B SCREW-TRUS HEAD
6-34 71Q6-22390 Nozzle-Air, Front
6-35 S002-05015B SCREW-TRUS HEAD
6-36 S002-06010B SCREW-TRUS HEAD
6-38 S035-061526 BOLT-W/WASHER
6-39 S035-081526 BOLT-W/WASHER
6-43 71Q6-22760 Cap-Trim
6-45 71Q6-23040 Cap-Wiper Motor
6-50 71Q6-22980 Trim-Rh,Front Low
6-50-1 71Q6-22110 Holder-Cup
6-50-2 71Q6-22080 Trim-Rh,Front Low
11 71Q6-22340 COVER MAT-AIRCON
12 71Q6-22350 COVER MAT-RADIO TRAY
15 71Q6-22410 ASH-TRAY
29 91Q6-20010 Decal-Start Key
30 71Q6-22771 Cap-Wiper Motor
31 71Q6-23050 Cap-Wiper Motor
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
