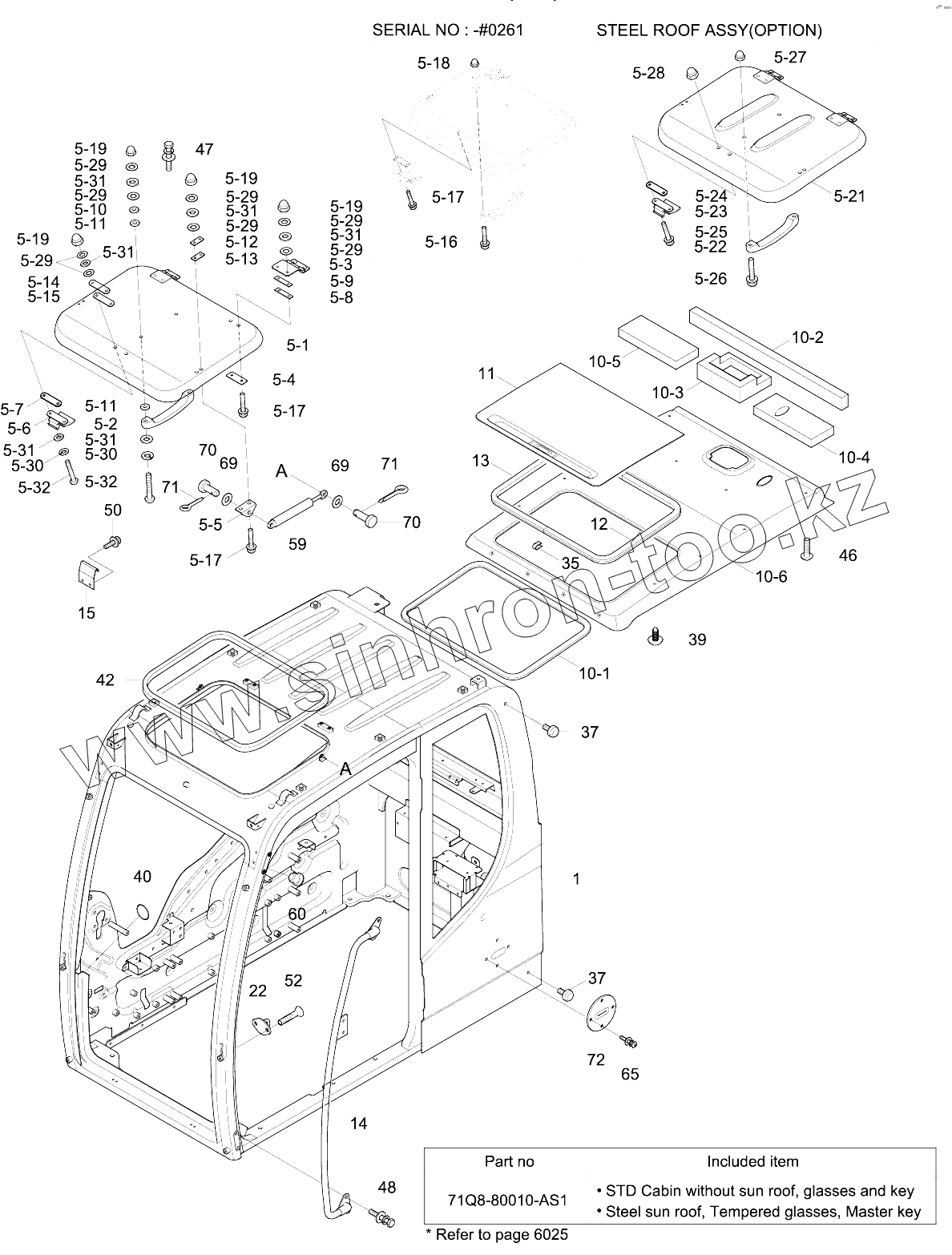

Каталог запасных частей к технике: Hyundai R210LC-9. CAB ASSY (1/4)
1
5-1
5-2
5-3
5-4
5-5
5-6
5-7
5-8
5-9
5-10
5-11
5-11
5-12
5-13
5-14
5-15
5-16
5-17
5-17
5-17
5-18
5-19
5-19
5-19
5-19
5-21
5-25
5-26
5-29
5-29
5-29
5-29
5-29
5-29
5-29
5-30
5-30
5-31
5-31
5-31
5-31
5-31
5-31
5-32
5-32
10
10-1
10-2
10-3
10-4
10-5
10-6
11
12
13
14
15
22
35
37
37
39
40
42
46
47
48
50
52
59
60
65
69
69
70
70
71
71
72
K
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 71Q8-10001 | 71Q8-10001 | Cabin Assy | |
| 71Q8-10002 | 71Q8-10002 | Cabin Assy | |
| 72Q8-10002 | 72Q8-10002 | Cabin Assy | |
| 73Q8-10001 | 73Q8-10001 | Cabin Assy | |
| 72Q6-01001 | 72Q6-01001 | Cab Wa | |
| 72Q6-01002 | 72Q6-01002 | CAB WA | |
| 71Q6-01001 | 71Q6-01001 | Cab Wa | |
| 71Q6-02502 | 71Q6-02502 | SUN ROOF ASSY | |
| 71Q6-02531 | 71Q6-02531 | PAD-RUBBER | |
| 71Q6-02621 | 71Q6-02621 | PAD-RUBBER | |
| 71Q6-01640 | 71Q6-01640 | PAD-RUBBER | |
| 71Q6-01620 | 71Q6-01620 | PAD-RUBBER | |
| 71Q6-01630 | 71Q6-01630 | PAD-RUBBER | |
| 71Q6-01650 | 71Q6-01650 | PAD-RUBBER | |
| S179-060252 | S179-060252 | SCREW-SOCKET RD HD | |
| 71Q6-02793 | 71Q6-02793 | HEADLINING ASSY | |
| 71N6-03202 | 71N6-03202 | SPRING-GAS | |
| 71Q6-03160 | 71Q6-03160 | PIN-CLEVIS | |
| 71Q8-10000 | 71Q8-10000 | Cabin Assy | |
| 1 | 72Q6-01000 | Cabin Wa | |
| 5 | 71Q6-02501 | Sun Roof Assy | |
| 5 | 72Q6-02500 | SUN ROOF ASSY | |
| 5-1 | 71Q6-02511 | COVER-SUN ROOF | |
| 5-2 | 71Q6-02330 | HANDLE | |
| 5-3 | 71Q6-02521 | HINGE | |
| 5-4 | 71Q6-02530 | Pad | |
| 5-5 | 71Q6-02590 | BRACKET | |
| 5-6 | 71Q6-02610 | CATCH-ROOF | |
| 5-7 | 71Q6-02620 | PAD-RUBBER | |
| 5-8 | 72N6-05030 | Pad-Rubber | |
| 5-9 | 72N6-05040 | PLATE-HINGE | |
| 5-10 | 72N6-05050 | PLATE-HANDLE | |
| 5-11 | 72N6-05060 | Pad-Rubber | |
| 5-12 | 72N6-05110 | PLATE-GAS SPRING | |
| 5-13 | 72N6-05120 | Pad-Rubber | |
| 5-14 | 75N4-03330 | PLATE | |
| 5-15 | 75N4-03340 | Pad-Rubber | |
| 5-16 | S131-053546 | Screw-W/Washer | |
| 5-17 | S132-062546 | Screw-W/Washer | |
| 5-18 | S291-050002 | CAP NUT-DOMED | |
| 5-19 | S291-060002 | CAP NUT-DOMED | |
| 5-21 | 72Q6-02510 | SUN ROOF WA | |
| 5-25 | S132-061546 | SCREW-W/WASHER | |
| 5-26 | S161-050256 | SCREW-CROSS R/ROUND | |
| 5-29 | 71Q6-02690 | SHIM | |
| 5-30 | S411-060002 | WASHER-SPRING | |
| 5-31 | S403-062002 | WASHER-PLAIN | |
| 5-32 | S179-060302 | SCREW-SOCKET RD HD | |
| 10 | 71Q6-02792 | Headlining | |
| 10-1 | 71Q6-02981 | WEATHER STRIP | |
| 10-2 | 71Q6-03050 | SPONGE | |
| 10-3 | 71Q6-03060 | SPONGE | |
| 10-4 | 71Q6-03080 | SPONGE | |
| 10-5 | 71Q6-03090 | SPONGE | |
| 10-6 | 71Q6-02970 | HEADLINING | |
| 11 | 71Q6-02802 | HEADLINING | |
| 12 | 71Q6-02811 | SASH-GUIDE, LH | |
| 13 | 71Q6-02821 | SASH-GUIDE, RH | |
| 14 | 71Q6-02831 | Handrail | |
| 15 | 71Q6-02851 | BRACKET-CATCH | |
| 22 | 71N6-02770 | STRIKER | |
| 35 | 71Q6-04640 | STOPPER | |
| 37 | 71EH-13150 | BUMPER-RUBBER | |
| 39 | 71Q6-04980 | FASTENER | |
| 40 | S681-100800 | GROMMET | |
| 42 | S772-022500 | WEATHER STRIP | |
| 46 | S035-062026 | BOLT-W/WASHER | |
| 47 | S035-081626 | BOLT-W/WASHER | |
| 48 | S035-082026 | BOLT-W/WASHER | |
| 50 | S132-061026 | SCREW-W/WASHER | |
| 52 | S141-080166 | SCREW-FLAT HD | |
| 59 | 71N6-03201 | Spring-Gas | |
| 60 | 71Q6-03030 | CUSHION-RUBBER | |
| 65 | S132-062056 | SCREW-W/WASHER | |
| 69 | S403-08200B | WASHER-PLAIN | |
| 70 | S491-080162 | Pin-Clevis | |
| 71 | S501-070006 | PIN-SELF LOCKING | |
| 72 | 75Q4-03770 | Cap | |
| 99 | 41QA-40160 | CAP-HEX | |
| K | 71Q8-80010-AS2 | Cabin A/S Kit |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
