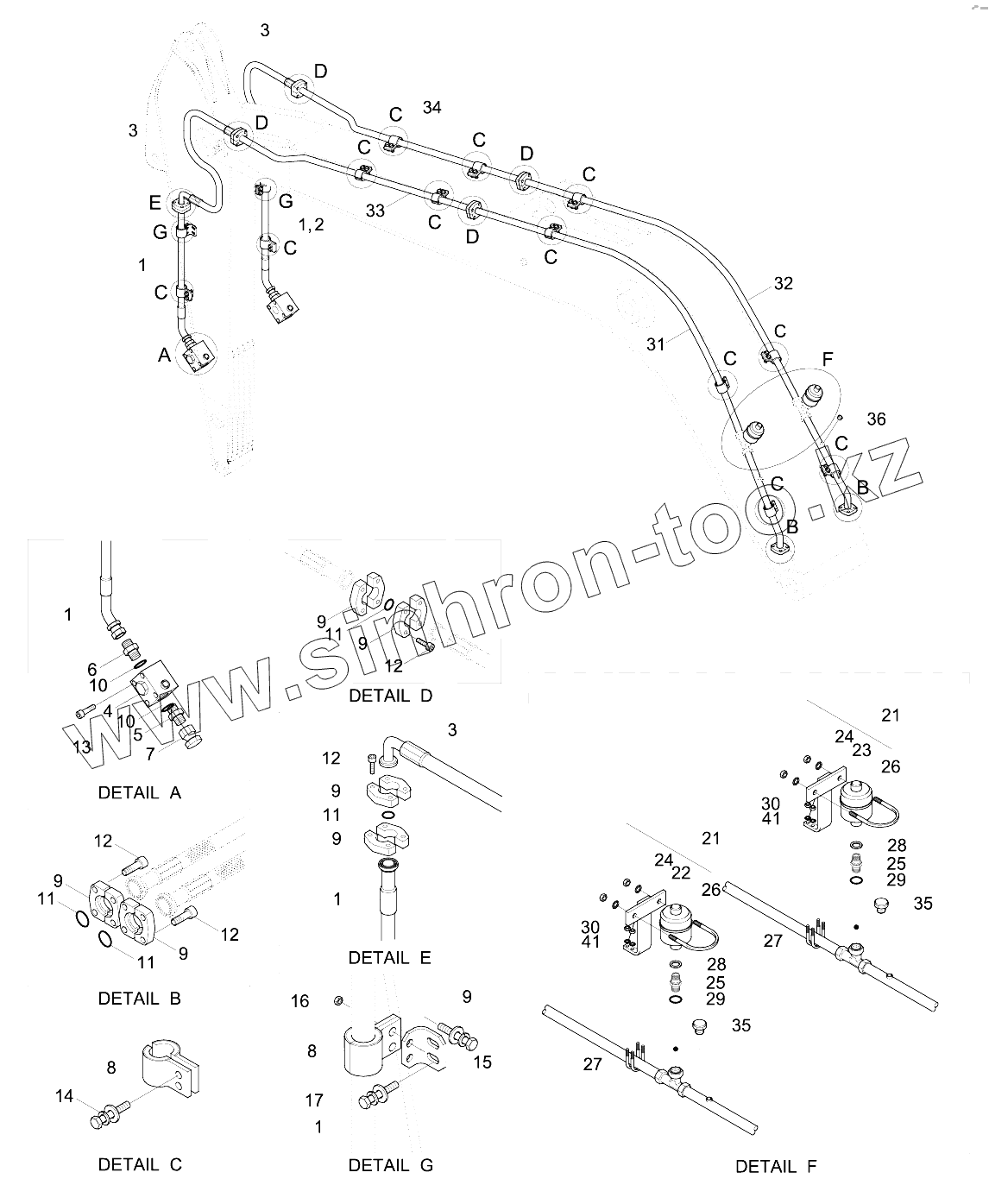

Каталог запасных частей к технике: Hyundai R210LC-9. ATTACH PIPING KIT (S & D/ACTING)
1
1
1
1
1
2
3
3
3
4
5
6
7
8
8
9
9
9
9
9
9
9
10
10
11
11
11
11
12
12
12
12
13
14
15
16
17
21
21
22
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
32
33
34
35
35
36
41
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 31Q6-91320 | 31Q6-91320 | Boom Piping Kit-Breaker | |
| 31Q6-91420 | 31Q6-91420 | Arm Piping Kit-Breaker | |
| 31Q6-91310 | 31Q6-91310 | Boom Piping Kit-Breaker | |
| 31Q6-91410 | 31Q6-91410 | Arm Piping Kit-Breaker | |
| 31Q6-50270 | 31Q6-50270 | Pipe Wa | |
| 31Q6-91280 | 31Q6-91280 | Pipe Wa | |
| 31Q6-50260 | 31Q6-50260 | Pipe Wa | |
| 31Q6-91290 | 31Q6-91290 | Pipe Wa | |
| 31Q6-91250 | 31Q6-91250 | Pipe Wa | |
| 31Q6-91240 | 31Q6-91240 | Pipe Wa | |
| P290-100106 | P290-100106 | Cap | |
| P010-110006 | P010-110006 | CONNECTOR | |
| 31Q6-91540 | 31Q6-91540 | Pipe Wa | |
| 31Q6-91430 | 31Q6-91430 | Arm Piping Kit-Breaker | |
| 31Q6-91440 | 31Q6-91440 | Arm Piping Kit-Breaker | |
| 31Q6-92430 | 31Q6-92430 | Arm Piping Kit-Breaker | |
| 31Q6-92560 | 31Q6-92560 | STOP VALVE-RH | |
| 31Q6-91580 | 31Q6-91580 | Pipe Wa | |
| 31Q6-91590 | 31Q6-91590 | Pipe Wa | |
| P705-166334 | P705-166334 | Hose Assy-Flg 0x90 | |
| P705-166328 | P705-166328 | Hose Assy-Flg 0x90 | |
| 31Q6-91551 | 31Q6-91551 | Valve-Stop | |
| 31Q6-92550 | 31Q6-92550 | STOP VALVE-LH | |
| 1 | 31Q6-91510 | Pipe Wa | |
| 2 | 31Q6-91610 | Pipe Wa | |
| 3 | P705-166338 | Hose Assy-Flg 0x90 | |
| 4 | 31Q6-91550 | Valve-Stop | |
| 5 | X500-110005 | CONNECTOR-ORFS | |
| 6 | 31Q6-91560 | Adapter | |
| 7 | X710-100106 | CAP-HYD,ORFS | |
| 8 | 31E7-01711 | CLAMP ASSY | |
| 9 | P173-160104 | FLANGE-HYD,SPLIT | |
| 10 | S621-021001 | O-RING | |
| 11 | Y171-024004 | O-RING | |
| 12 | S109-100306 | BOLT-SOCKET | |
| 13 | S109-120706 | BOLT-SOCKET | |
| 14 | S037-123526 | BOLT-W/WASHER | |
| 15 | 31Q6-91500 | Bracket | |
| 16 | S207-12100B | Nut-Hex | |
| 17 | S037-124526 | Bolt-W/Washer | |
| 21 | 31Q6-90370 | Accumulator Kit | |
| 22 | 31Q8-91670 | ACCUMULATOR | |
| 23 | 31Q8-91680 | ACCUMULATOR | |
| 24 | 32E6-92080 | BRACKET-ACCUM | |
| 25 | 31Q8-91690 | CONNECTOR | |
| 26 | 32E6-92060 | U-BOLT | |
| 27 | S071-033430 | U-Bolt | |
| 28 | 31Q8-91700 | SEAL | |
| 29 | S631-024004 | O-RING | |
| 30 | S205-10100B | NUT-HEX | |
| 31 | 31Q6-91350 | Pipe Wa | |
| 32 | 31Q6-91360 | Pipe Wa | |
| 33 | 31Q6-50190 | Pipe Wa | |
| 34 | 31Q6-50180 | Pipe Wa | |
| 35 | P220-110205 | PLUG-HEX | |
| 36 | 31EK-11130 | COUPLING-SCREW | |
| 41 | S403-10200B | WASHER-PLAIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
